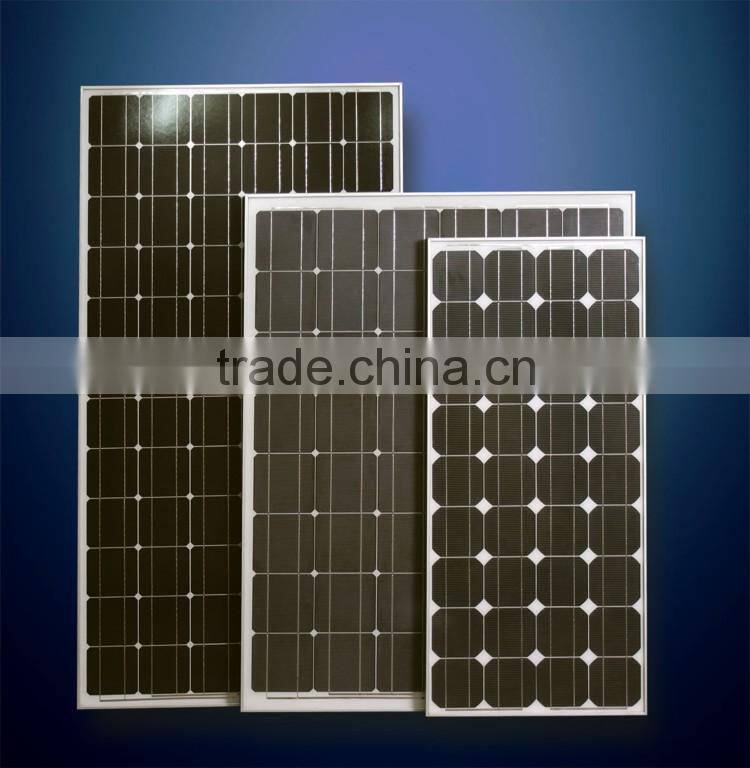

A Grade high efficiency monocrystalline solar panel
High module conversion efficiency
(up to 16%), through superior cell technology and
leading manufacturing capability
Positive tolerance
Guaranteed tolerance from ±3% ensures
power output reliability
Excellent weak light performance
Excellent performance under low light environments
(mornings, evenings, and cloudy days)
Withstand high wind and snow loads
Entire module certified to withstand high wind loads
(2400 Pascal) and snow loads (5400 Pascal) *
Model |
SS-P320WP |
Optimum Operating Voltage (Vmp) |
36.0 V |
Optimum Operating Current (Imp) |
8.88A |
Open - Circuit Voltage (Voc) |
42.3 V |
Short - Circuit Current (Isc) |
9.06A |
Maximum Power at STC (Pmax) |
320 W |
Cell Efficiency |
17% |
Operating Module Temperature |
-40 °C to +85 °C |
Maximum System Voltage |
1000 V DC (IEC) / 600 V DC (UL) |
Maximum Series Fuse Rating |
20 A |
Power Tolerance |
±3 % |
Solar Cell |
Poly-crystalline |
No. of Cells |
72 (6 × 12) |
Dimensions |
1950× 980× 50mm |
Weight |
26.0 kgs |
Front Glass |
3.2 mm tempered glass |
Frame |
Anodized aluminum alloy |
Junction Box |
IP67 rated |
Output Cables |
TUV (2Pfg1169:2007), UL 4703, UL 44 |
|
Optional
| |
Connectors |
Optional
|
On-grid /Off-grid system;
Remote telecommunication power supply;
Rural electrification;
Water pumping systems;
Solar farms.
Paper box;Wooden carton;Pallet
OEM Available;
System configuration service;
Technical support.
SUNSUN has its own technical team,including a number of experienced sotrware engineers,hardware engineers,they can customize various specs products and system for clients.
Q:I want to start solar business,but i don't know what product is hot sale!
A:Leave it to us,we will recommed the most fasion hot sale products to you!
Q:I want to use solar system for electical application,but i don't know what components i need!
A:Leave it to use,we will configuration the solar system base on your requirements!
