High module conversion efficiency
(Poly up to 16%,Mono up to 19%), through superior cell technology and
leading manufacturing capability;
Positive tolerance
Guaranteed tolerance from ±3% ensures
power output reliability;
Excellent weak light performance
Excellent performance under low light environments
(mornings, evenings, and cloudy days);
Withstand high wind and snow loads
Entire module certified to withstand high wind loads
(2400 Pascal) and snow loads (5400 Pascal).

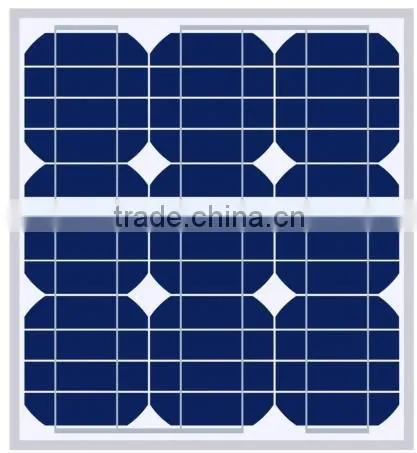

12V 25W Mono/Poly solar panel
Model |
SS-P25WP |
Optimum Operating Voltage (Vmp) |
18.00 V |
Optimum Operating Current (Imp) |
1.39A |
Open - Circuit Voltage (Voc) |
21.2 V |
Short - Circuit Current (Isc) |
1.45A |
Maximum Power at STC (Pmax) |
25 W |
Cell Efficiency |
17% |
Operating Module Temperature |
-40 °C to +85 °C |
Maximum System Voltage |
1000 V DC (IEC) / 600 V DC (UL) |
Maximum Series Fuse Rating |
20 A |
Power Tolerance |
±3 % |
Solar Cell |
Poly-crystalline |
No. of Cells |
36 (2 × 18) |
Dimensions |
350 × 600 × 25mm |
Weight |
2.8 kgs |
Front Glass |
3.2 mm tempered glass |
Frame |
Anodized aluminum alloy |
Junction Box |
IP67 rated |
Output Cables |
TUV (2Pfg1169:2007), UL 4703, UL 44 |
|
Optional
| |
Connectors |
Optional
|
Nominal Operating Cell Temperature (NOCT) |
45±2°C |
Temperature Coefficient of Pmax |
-0.44 %/°C |
Temperature Coefficient of Voc |
-0.33 %/°C |
Temperature Coefficient of Isc |
0.055 %/°C |
On-grid /Off-grid system;
Remote telecommunication power supply;
Rural electrification;
Water pumping systems;
Solar farms.
OEM available;
Solar system configuation;
25-year transferable power output warranty;
5 years/95% ,12 years/90%, 18 years/85%, 25 years/80% based on nominal power;
3 years material and workmanship warranty.
Paper box,Wooden carton;Pallet.
Shipping by Sea,Air and Express.
Keyword:12v 25W Solar panel,12v 25W Mono solar panel,12v 25W Poly solar panel
