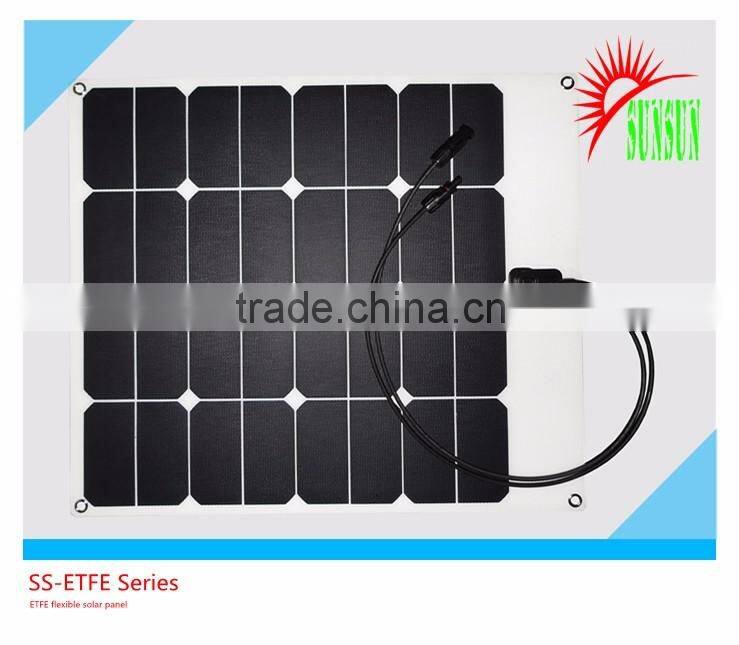

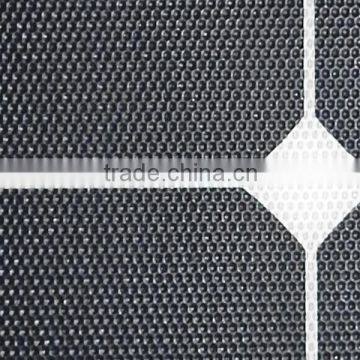

SUNSUN top quality ETFE flexible solar panel 100W with cell 22% efficiency
1).Description
Water-proof,perfect to use on yacht,car,boat,snow mobile,golf-cart....etc
Light weight for easy carrying

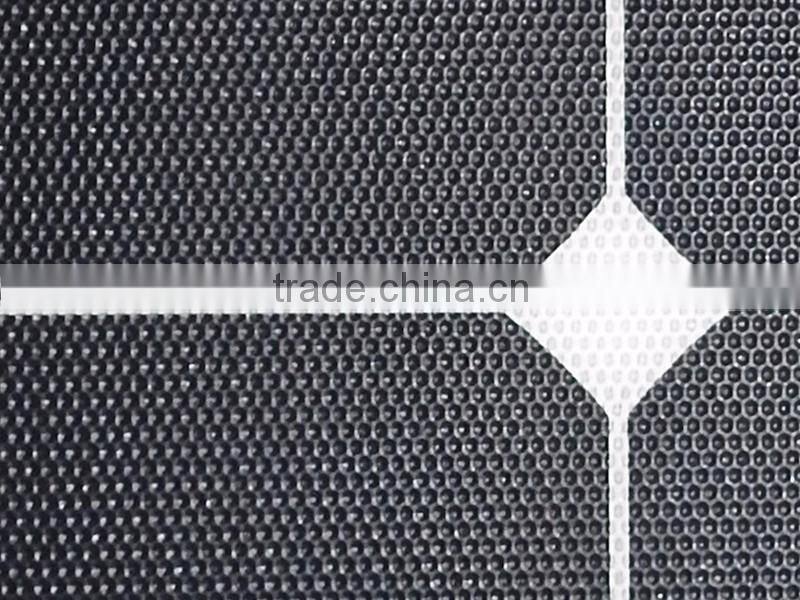

High efficiency crystalline solar cell

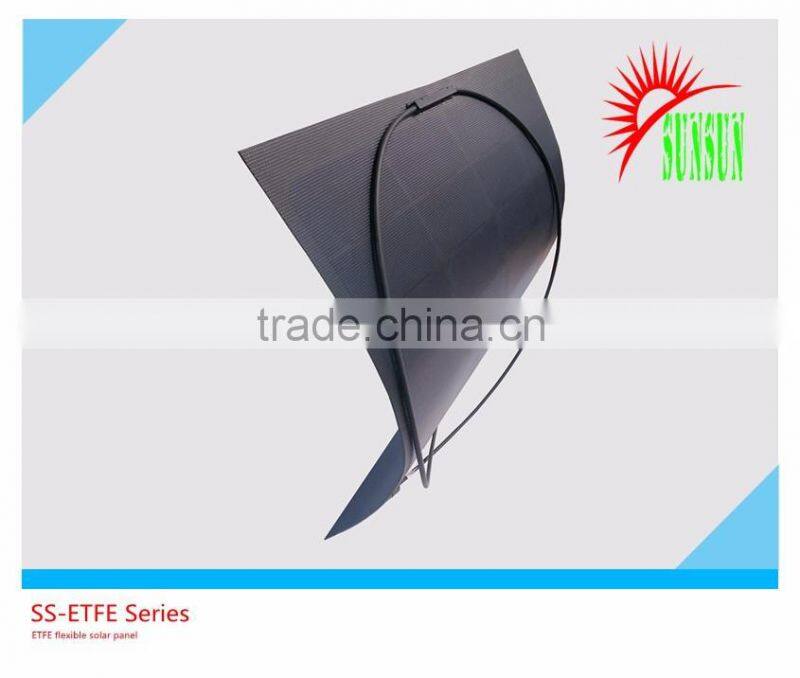

2).Semi Flexible

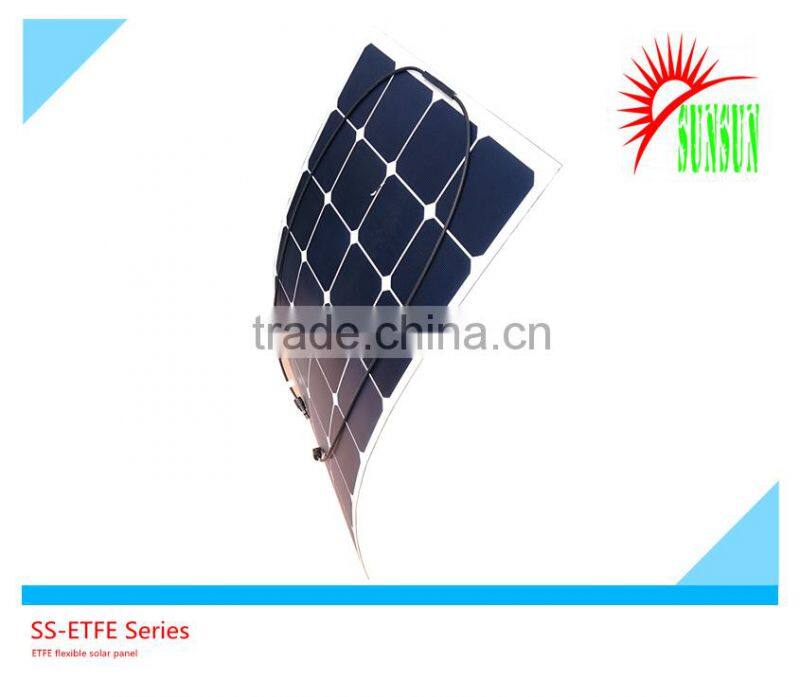

Bending angle up to 30 degrees
Water-proof,perfact to use on yacht,car,boat,snow mobile,golf-cart....etc
Light weight for easy carrying
3).Use ETFE thin film
Anti-salt corrosion, UV resistance, Strong and Long life
4).Standard Test Condition
Est each module at lOOOW/m2,AMl.5,25'C before packing
Model |
SS-S100WP-Etfe |
Maximum Power at STC (Pmax) |
100 W |
Optimum Operating Voltage (Vmp) |
17.50 V |
Optimum Operating Current (Imp) |
5.81 A |
Open - Circuit Voltage (Voc) |
21.10 V |
Short - Circuit Current (Isc) |
6.10 A |
Cell Efficiency |
22.0% |
Operating Module Temperature |
-20 °C to +65 °C |
Maximum System Voltage |
1000 V DC (IEC) / 600 V DC (UL) |
Maximum Series Fuse Rating |
20 A |
Power Tolerance |
±5 % |
Solar Cell |
Sunpower |
No. of Cells |
32 (4 × 8) |
Dimensions |
1060 × 530× 3mm |
Weight |
2.2 kgs |
Front |
ETFE |
Frame |
N/A |

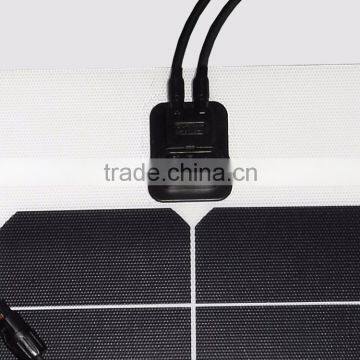

Junction Box |
IP67 rated |
Output Cables |
TUV (2Pfg1169:2007), UL 4703, UL 44 |
|
Optional 4.0 mm2,symmetical lengths(-)1000mm and (+)1000mm | |
Connectors |
SOLAR MC4 integrated twist locking connectors |

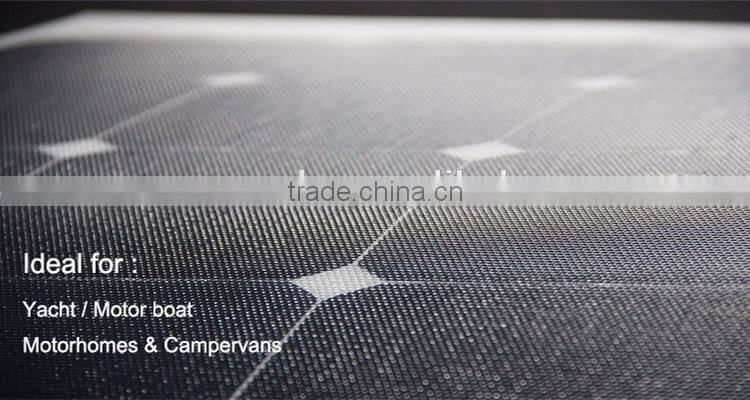

What applications the ETFE flexible solar panels can be used for?
Boats;
Golf cars;
Camping:
Caravan.
How the ETFE flexible solar panels packing?
Paper box;
Wooden carton;
Pallet.
What sevice can we provide?
OEM available;
System configuration service;
Technical support;
Installation guidiance.
SUNSUN SOLARENERGY is what a company?
SUNSUN has its own technical team,including a number of experienced sotrware engineers,hardware engineers,they can customize various specs products and system for clients.
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in shenzhen city, guangdong province.
2. Q: How can I visit your factory?
A: Before you visit,please contact us.We will show you the route or arrange a car to pick you up.
3. Q: Do you provide free sample?
A: Commenly we provide paid sample.
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept it.And need an Authorization Letter from you.
5. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
6. Q: How do you overcome the anti-dumping and countervailing duties?
A: We can use original Taiwan solar cells, and provide Certificate of Origin of Taiwan.
7. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
8. Q: Do you have solar project engineer who can guide me to install system?
A: Yes, we have a professional engineer team. They can teach you how to install a solar system.
