10A Solar Light Charge Controller
1.Build-in industrial micro controller.
2.One-key setting,digital display,auto memory function.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
MODEL/SS |
1205N |
1210N |
1215N |
1220N |
Batt voltage |
12V/24V auto adapt |
|||
Charge current |
5A |
10A |
15A |
20A |
Discharge current |
5A |
10A |
15A |
20A |
Max Solar input |
41V |
|||
Charge drop |
<0.2V |
|||
Discharge drop |
<0.25V |
|||
Equalization |
14.8V |
|||
Bulk |
14.5V |
|||
Acceptance |
14.2V PWM |
|||
Float |
13.8V |
|||
Charge reconnect |
13.0V |
|||
Discharge stop |
11.2V |
|||
Discharge reconnect |
12.6V |
|||
Self-consume |
<10mA |
|||
Voltage of open light |
Solar panel 8V(delay 10s) |
|||
Voltage of close light |
Solar panel 8V(delay 60s) |
|||
Temperature compensation |
N/C |
|||
Operating temperature |
-35~+60 ℃ |
|||
Size/Weight |
125*90*28mm /180g |
|||
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN,AGM, GEL
it is not suited for nickel metal hydride, lithium ions or other batteries.
4.The charge regulator is only suitable for regulating solar modules.
Never connect another charging source to the charge regulator.

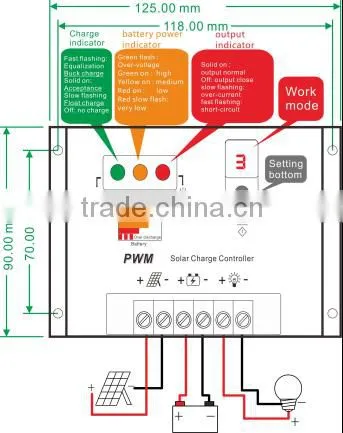

1.Connect the battery to the charge regulator - plus and minus.it will show”1” if it detects 12V battery,”2” if it detects 24V battery.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
OEM Available;
System configuration service;
Technical support.
SUNSUN has its own technical team,including a number of experienced sotrware engineers,hardware engineers,they can customize various specs products and system for clients.
PLEASE CONTACT US FOR MORE PRODUCT DETAILS!
