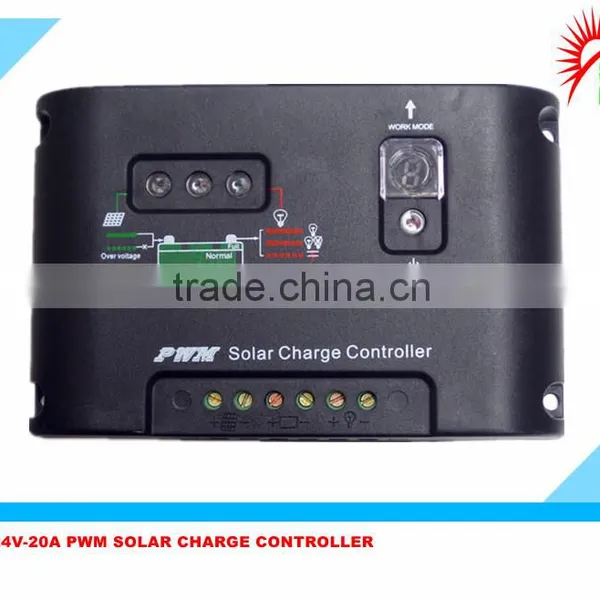

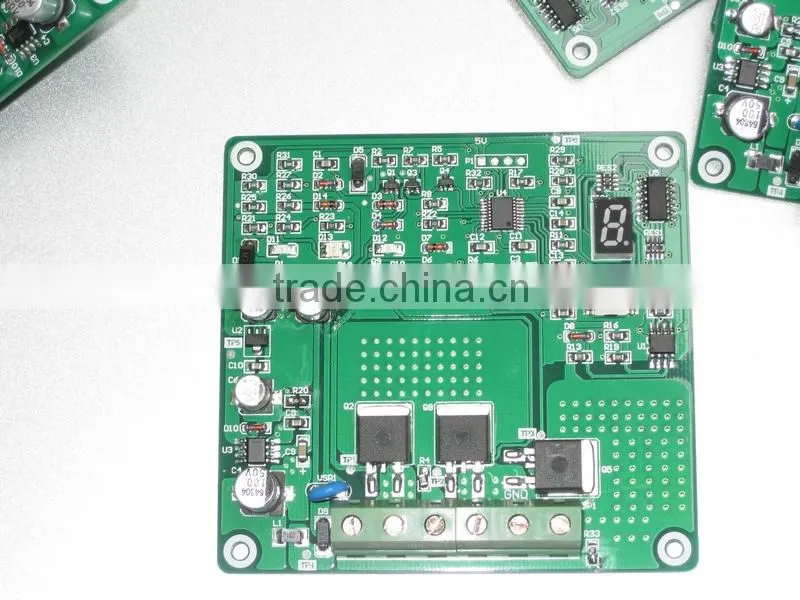

12 volt 20 amp Solar charge controller
1.Build-in industrial micro controller.
2.One-key setting,digital display,auto memory function.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
MODEL/SS |
1205N |
1210N |
1215N |
1220N |
Batt voltage |
12V/24V auto adapt |
|||
Charge current |
5A |
10A |
15A |
20A |
Discharge current |
5A |
10A |
15A |
20A |
Max Solar input |
41V |
|||
Charge drop |
<0.2V |
|||
Discharge drop |
<0.25V |
|||
Equalization |
14.8V |
|||
Bulk |
14.5V |
|||
Acceptance |
14.2V PWM |
|||
Float |
13.8V |
|||
Charge reconnect |
13.0V |
|||
Discharge stop |
11.2V |
|||
Discharge reconnect |
12.6V |
|||
Self-consume |
<10mA |
|||
Voltage of open light |
Solar panel 8V(delay 10s) |
|||
Voltage of close light |
Solar panel 8V(delay 60s) |
|||
Temperature compensation |
N/C |
|||
Operating temperature |
-35~+60 ℃ |
|||
Size/Weight |
125*90*28mm /180g |
|||
Paper box;Pallet
OEM Available;
System configuration service;
Technical support.
SUNSUN has its own technical team,including a number of experienced sotrware engineers,hardware engineers,they can customize various specs products and system for clients.
Q:I want to start solar business,but i don't know what product is hot sale!
A:Leave it to us,we will recommed the most fasion hot sale products to you!
Q:I want to use solar system for electical application,but i don't know what components i need!
A:Leave it to use,we will configuration the solar system base on your requirements!
Q:What is the solar charge controller warranty?
A:Solar charge controller 1 year.
