RJ45 8P8C UTP Jack to RCA Stereo Audio and S-Video Adapter
ADRSN
§ PRODUCT FACT

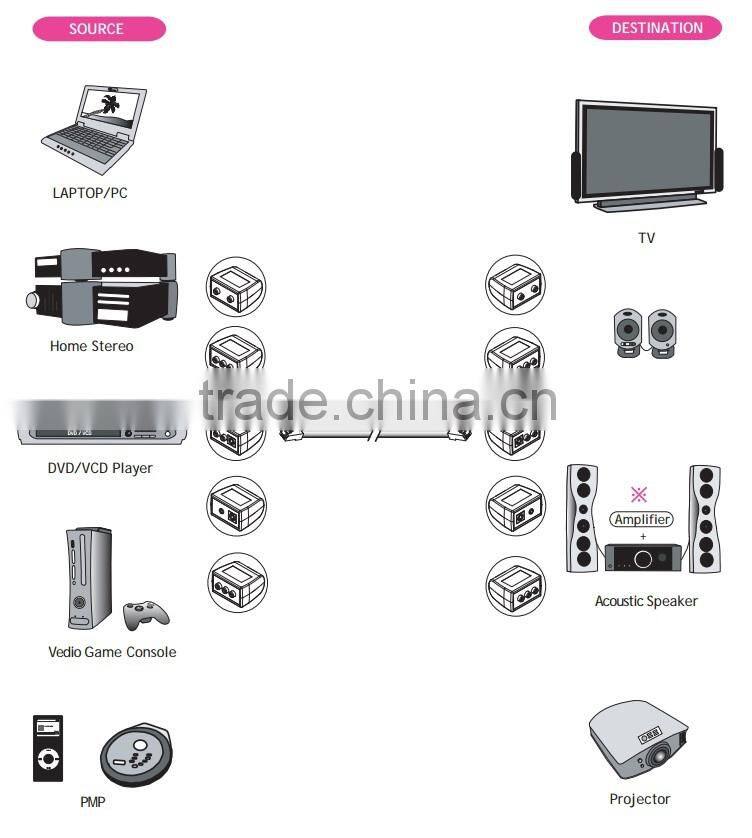

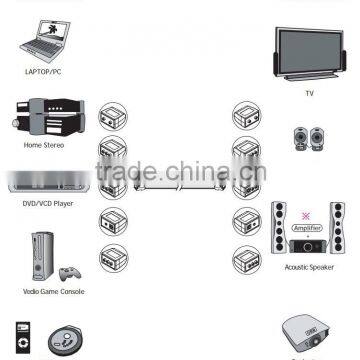

The A/V adapter is designed for the analog transmission via patch cord at structured
follow-up after horizontal cabling.

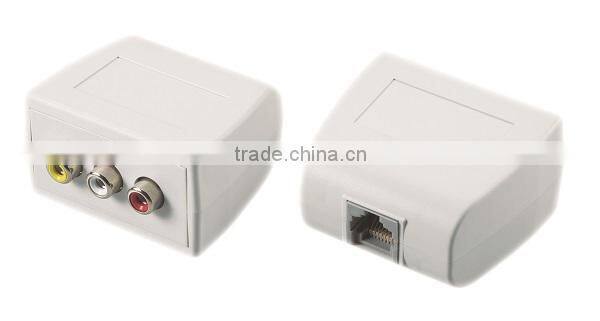

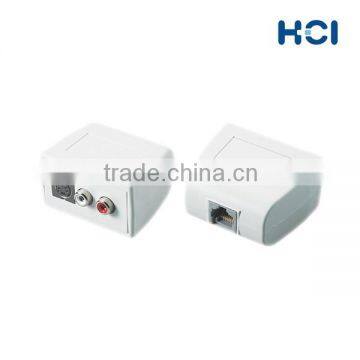

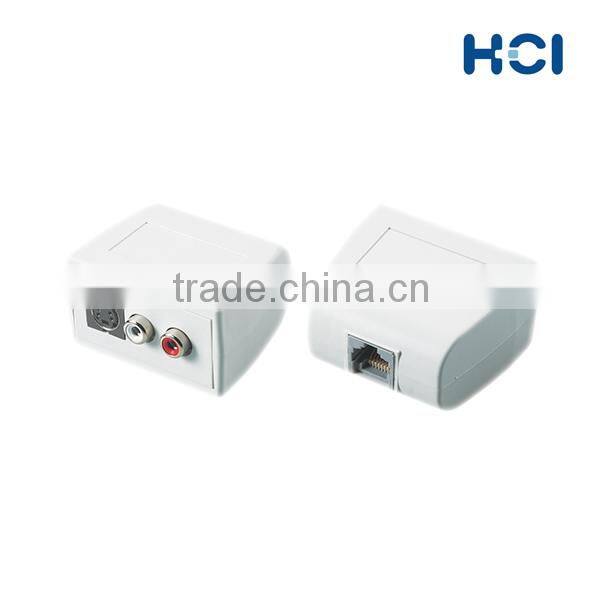

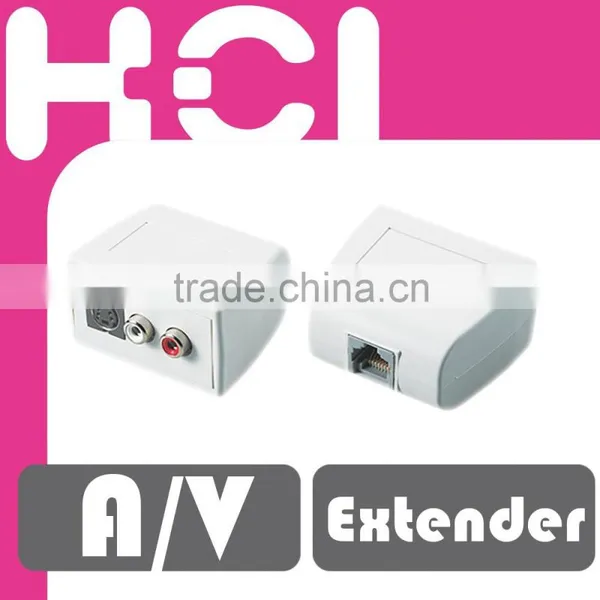

♦ ADRSN includes2 standard RCA jacks(all foraudio) and 1 S-Video jack on the front side and
1 RJ45 jack on the reverse side.
All of them are standard jacks. The patch cord is needed using Category 5e UTP cable or
higher. These adapters must be used in pairs. Connections made by pushing the cable's plug
into the jack on the device. Admittedly, yellow RCA for composite video, red RCA for the right
channel, white RCA for the left channel of stereo audio, S-Video jack for composite video and
3.5mm mini-phone jack for stereo audio. You can use single port video/audio in the same
channel. These adapters are ideal for corporate Audio/Video, schools, home theater and most
of any other situation involving structured A/V distribution signals via Cat.5e UTP cable.
§ FEATURE
-Simplicity of maintenance design.
-Adaptable to all audio, video services and data.
-Compliant with residential and commercial cabling standard.
-Plastic housing with snap on cover.
-Low cost and versatile cabling solution.
§ SPECIFICATIONS
| BANDWIDTH | Video: DC~8MHz | Audio: 20Hz~50KHz |
| INSERTION LOSS | ≤ 2dB | |
| RETURN LOSS | ≥ 15dB | |
| COMMON MODE REJECTION | ≥ 40dB at 8MHz | |
| IMPEDANCE | RCA Video: 75Ω | Audio: 600Ω |
|
Cat5e UTP CABLE |
Impedance: 1000Ω at 1MHz | |
| Max. Capacitance: 20 pf/ft | ||
| Attenuation: 6.6dB / 1000ft at 1MHz | ||
| Transmission Distance: 100m | ||
| TEMPERATURE | Operationg: 0°c~55°c | Storage: -20°c~70°c |
| HUMIDITY | ≤ 95% | |
| SIZE | H32.8mm x W56.6mm x D54.1mm | |
| STANDARD | Composite video: NTSC, PAL or SECAM | |
| MATERIAL | ABS, UL 94 V-0 | |
§ APPLICATION
**Note: Some speakers cannot be connected via 3.5mm mini-phone jack,
in this situation an amplifier is recommended.
§ ORDERING INFORMATION

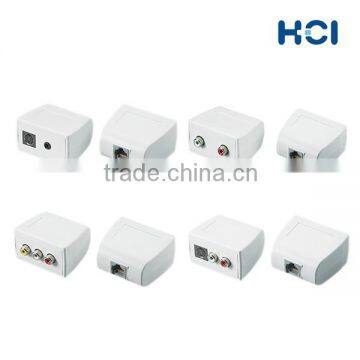

| PART NO. | DESCRIPTION |
| ADR2N | Unshielded 8P8C Jack to RCA Stereo Audio Adapter, Nickel-Plated |
| ADR3N |
Unshielded 8P8C Jack to RCA Stereo Audio & Composite Video Adapter, Nickel-Plated |
| ADRSN |
Unshielded 8P8C Jack to RCA Stereo Audio & S-Video Adapter, Nickel-Plated |
| ADMSN |
Unshielded 8P8C Jack to TRS 3.5mm Stereo Audio & S-Video Adapter, Nickel-Plated |
| ADRGN | Unshielded 8P8C Jack to RGB Component Video Adapter, Nickel-Plated |
|
**Note: Gold-plated available upon request | |
§ SEE MORE

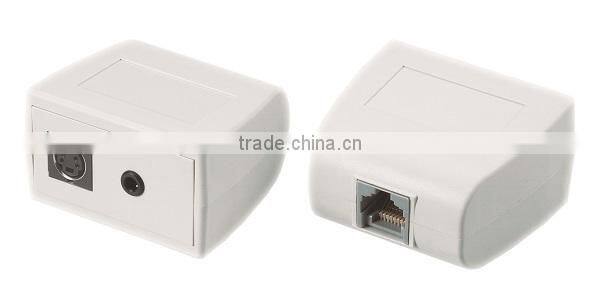

♦ ADMSN includes1 3.5mm mini-phone jack (for stereoaudio) & S-Video jack(for video)
on the front side and 1 RJ45 jack on the reverseside. Click Here
♦ ADR3N includes3 standard RCA jacks(1 for video, 2 foraudio) on the front side and 1
RJ45 jack on the reverse side. Click Here

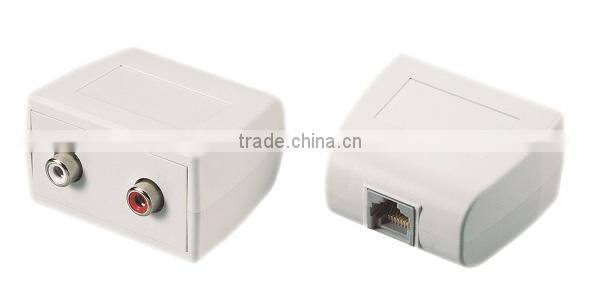

♦ ADR2N includes2 standard RCA jacks(all foraudio) on the front side and 1 RJ45 jack
on the reverse side. Click Here
