Screw Terminal Type RGB Component video to LAN Cable Multimedia Extender
MCRGCN
§ PRODUCT FACT
The A/V module is designed for the analog transmission viaLAN cable at structured follow-up
after horizontal cabling.

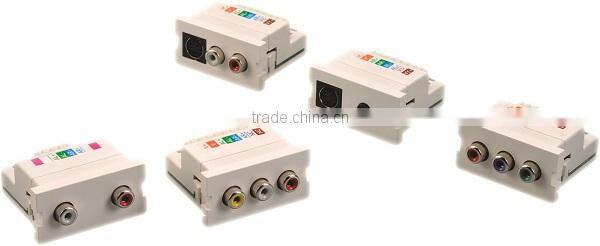

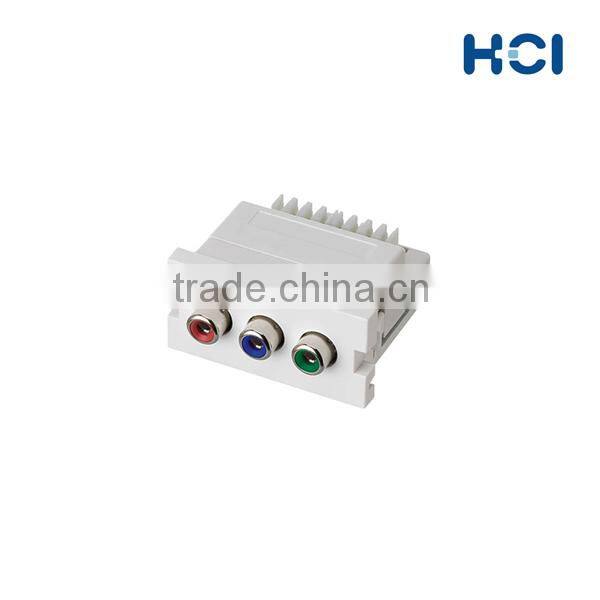

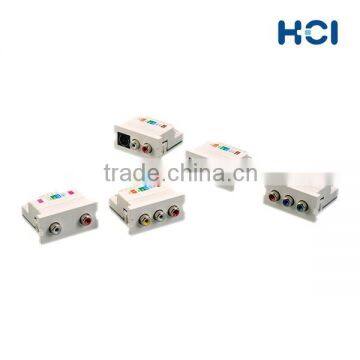

♦ MCRGCN includes 3 standard RCA jacks (all for video) on the front side and IDC terminal
block(8-positionconnection) on the reverse side.
All of them are standard IDC terminal blocks. The LAN cable is needed using Category 5e UTP cable or higher. These modules must be used in pairs. Connections made by sorting wires into
the properly IDC according to the label on the device. Admittedly, yellow RCA for composite
video, red RCA for the right channel, white RCA for the left channel of stereo audio, S-Video
jack for composite video and 3.5mm mini-phone jack for stereo audio. These modules are ideal
for corporate Audio/Video, schools, hometheater and most of any other situation involving
structured A/V distribution signals via LANcable.

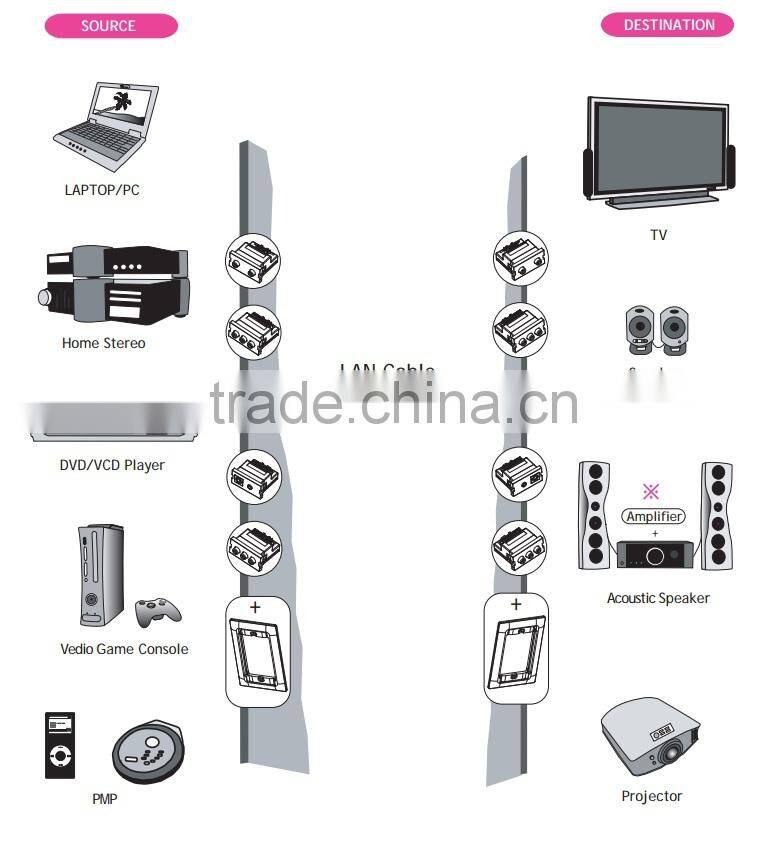

§ APPLICATION
§ ORDERING INFORMATION
| ITEM NO. | DESCRIPTION | DIMENSIONS (mm) |
| MCRGCN |
RGB Component Video Module, Nickel-Plated |
H25.0 x W50.0 |
TWISTED-PAIR MULTIMEDIA OPTICAL FIBER OEM/ODM
OEM & ODM: Why HCI?
One of Taiwan’s leading supplier oftelecommunications structured cabling system.
Provide total solution, from design to production with fast turn around time and the best price.
Founded in 1975 and over 25 years experience in OEM/ODM projects.
Your reliable global partner!
