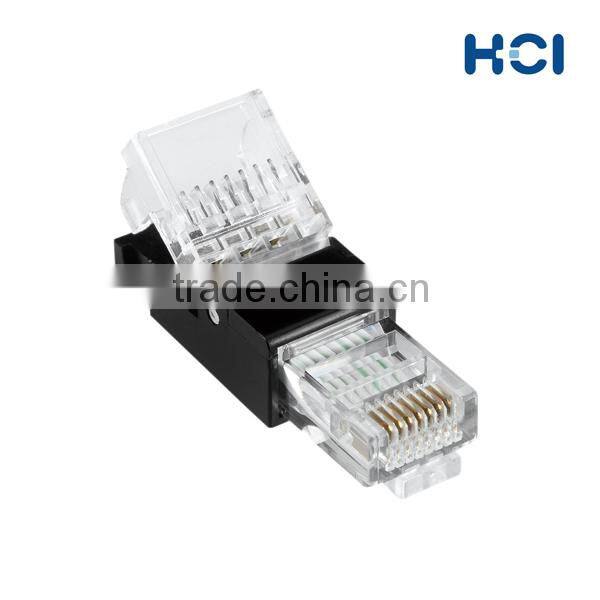

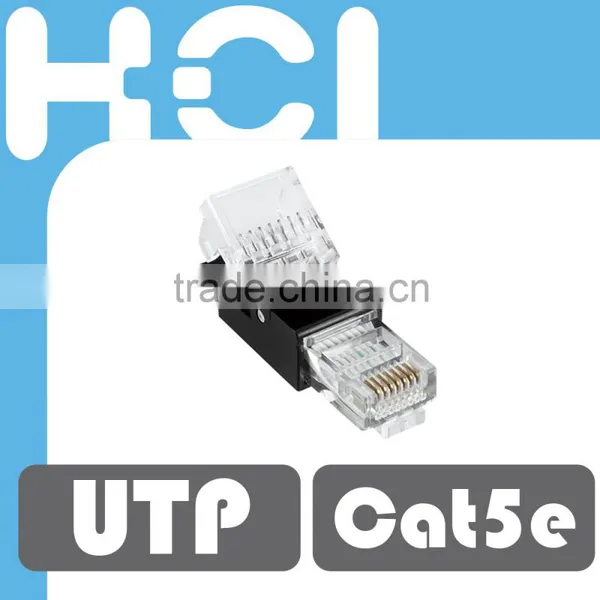

Network Solution RJ45 8P8C For Cat5e Unshielded UTP Toolless Modular Plug
88T Series
§ PRODUCT FACT
The 8P8C (8 position 8 contact, also backronymed as 8 position 8 conductor; often called RJ45 ) plug is the male type of modular connector commonly used for Ethernet over twisted-pair applications, where the plug on each end terminated using the T568A or T568B pin/pair assignments that are defined in ANSI/TIA-568-C.2 standard.
These connectors are commonly used in computer networking and other telephone applications involving unshielded twisted-pair (UTP), shielded twisted-pair (STP), and multiconductor flat cable. Most network communications today are carried over Category 5e, Category 6 or Category 6A cable with an 8P8C modular plug crimped on each end.
§ FEATURE
-Accordning to the ANSI/TIA-568-C.2,
-ISO/IEC 11801 2nd and EN 50173-1 specification.
-IDC can accept 24-26 AWG solid and stranded UTP cables.
-Support T568A/T568B wiring & easy installation.
§ SPECIFICATION
-Lead-free & RoHS compliant, certified by TUV.
-Meet the ANSI/TIA-568-C.2, ISO/IEC 2ndedition and CENELEC EN 50173-1 cabling
requirements of IEC 60603-7 for RJ45 8-way connector.
§ ELECTRICAL
-Voltage proof: 1000V DC or AC peek, contact-to-contact.
-Current-carrying capacity: 0.75 Amps minimum
-Contact resistance: 20MΩ maximum
-Insulation resistance: 500MΩ minimum at 10V DC or 100 MΩ minimum at 500V DC
-Input to output resistance: 200MΩ maximum
-DC resistance: 0.2 ohm maximum
§ MECHANICAL
-Mechanical operation: 750 cycles minimum
-Effectiveness of connector coupling devices: 50 N (11 lbf) for 60s ± 5s
§ ENVIRONMENTAL
-Temperature: -10℃~60℃
-Humidity: 10%~90%RH
§ ORDERING INFORMATION
| PART NO. | DESCRIPTION |
| 88T52D | RJ45 Plug For UTP Stranded & Solid Cable, Toolless |
