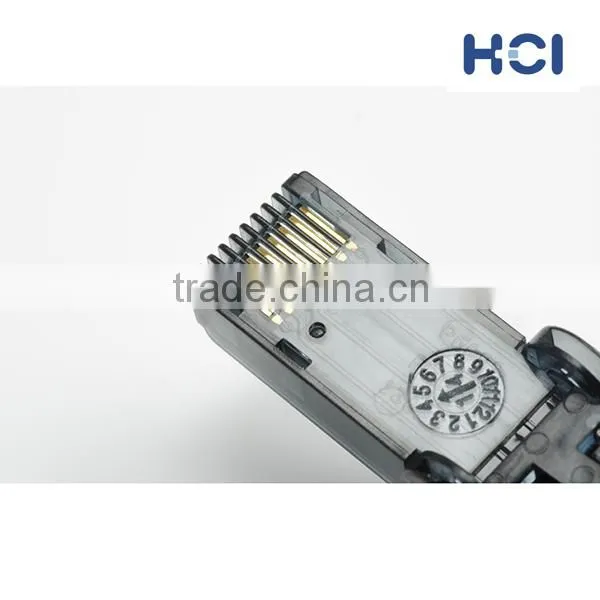

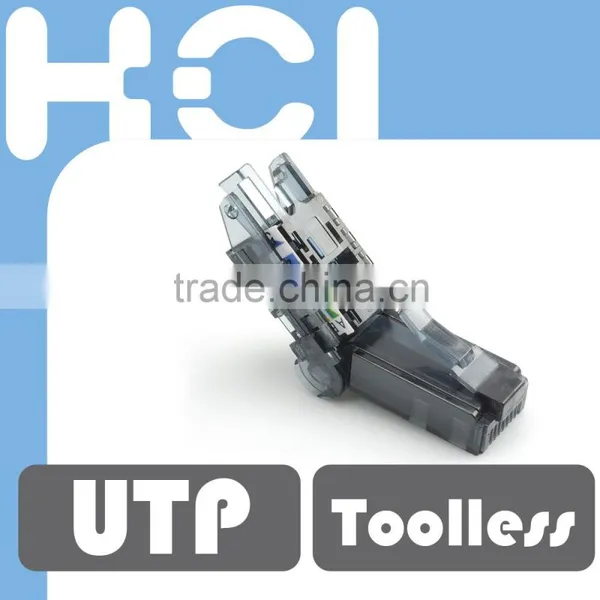

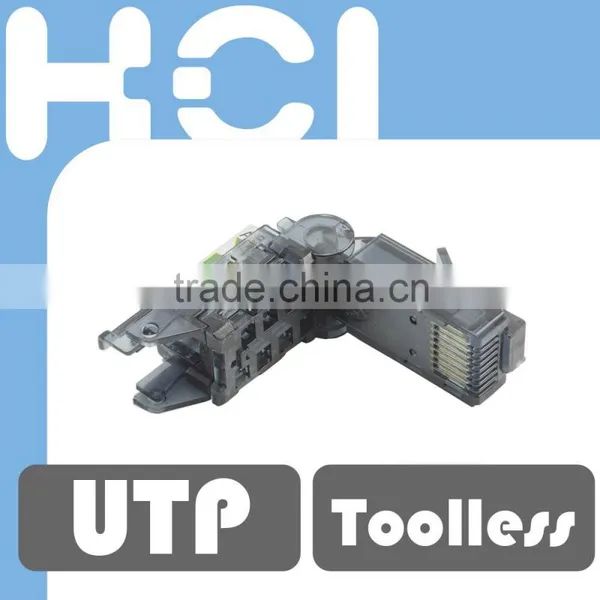

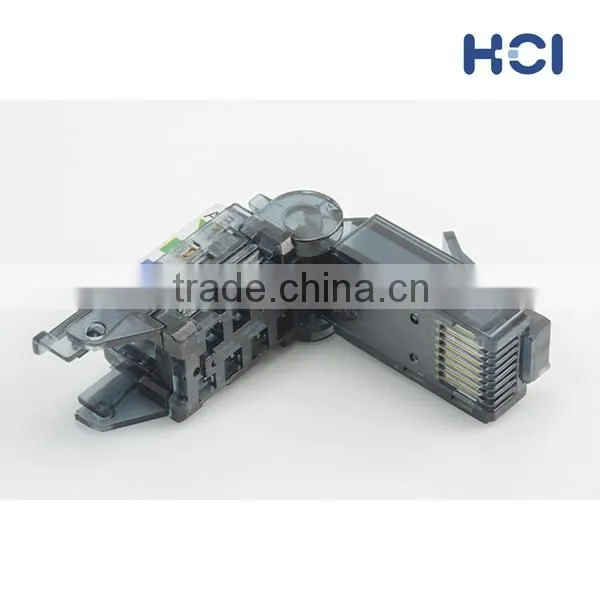

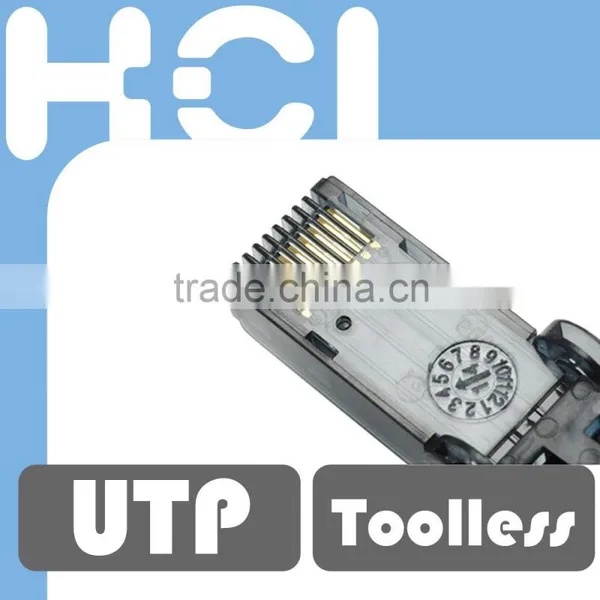

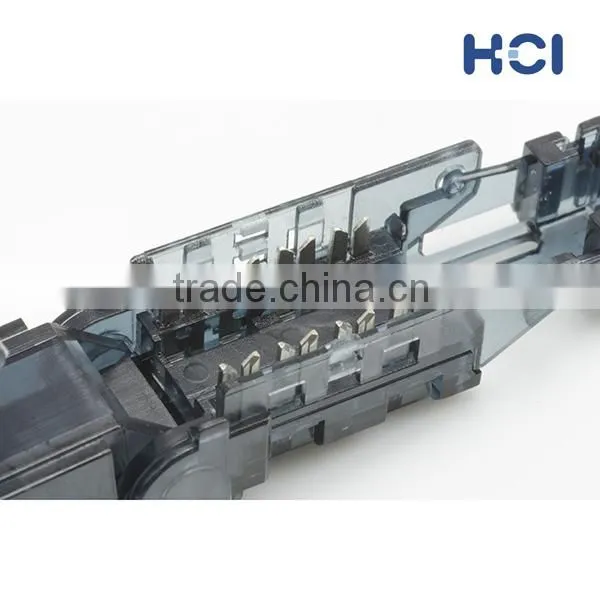

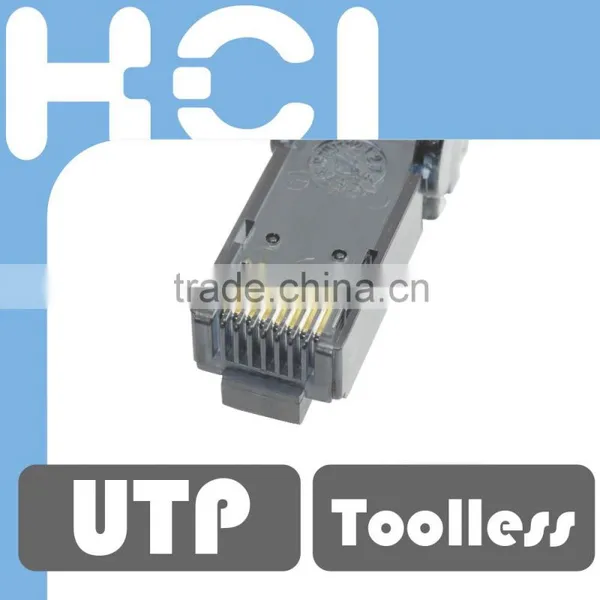

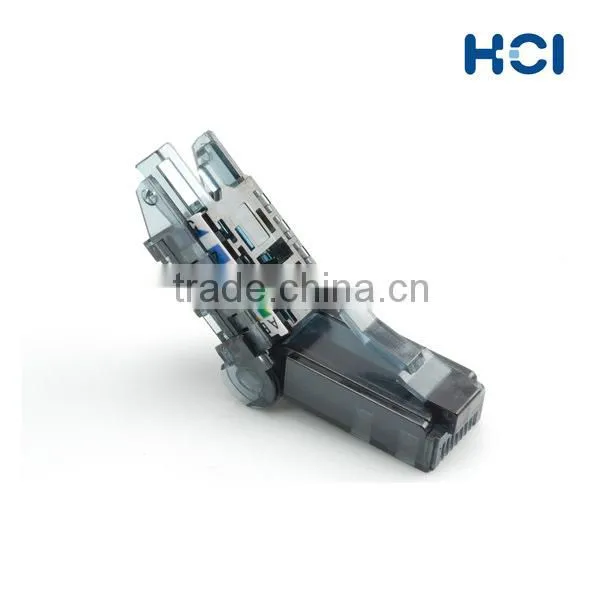

Taiwan Supplier Direct Attach Toolless Adjustable RJ45 UTP Modular Plug for Cat 6A Cable

Taiwan Supplier Direct Attach Toolless Adjustable RJ45 UTP Modular Plug for Cat 6A Cable thumbnail-1
Taiwan Supplier Direct Attach Toolless Adjustable RJ45 UTP Modular Plug for Cat 6A Cable thumbnail-2
Taiwan Supplier Direct Attach Toolless Adjustable RJ45 UTP Modular Plug for Cat 6A Cable thumbnail-3
Taiwan Supplier Direct Attach Toolless Adjustable RJ45 UTP Modular Plug for Cat 6A Cable thumbnail-4
Taiwan Supplier Direct Attach Toolless Adjustable RJ45 UTP Modular Plug for Cat 6A Cable thumbnail-5
Taiwan Supplier Direct Attach Toolless Adjustable RJ45 UTP Modular Plug for Cat 6A Cable thumbnail-6
Taiwan Supplier Direct Attach Toolless Adjustable RJ45 UTP Modular Plug for Cat 6A Cable photo-1
Taiwan Supplier Direct Attach Toolless Adjustable RJ45 UTP Modular Plug for Cat 6A Cable photo-2
Taiwan Supplier Direct Attach Toolless Adjustable RJ45 UTP Modular Plug for Cat 6A Cable photo-3
Taiwan Supplier Direct Attach Toolless Adjustable RJ45 UTP Modular Plug for Cat 6A Cable photo-4
Taiwan Supplier Direct Attach Toolless Adjustable RJ45 UTP Modular Plug for Cat 6A Cable photo-5
Taiwan Supplier Direct Attach Toolless Adjustable RJ45 UTP Modular Plug for Cat 6A Cable photo-6
Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Private labeling-15yrs warranty by 40yrs brandname supplier
Model Number:
88TA6A0
Contact Supplier Request Quote Chat Now
Hsing Chau Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name Private labeling-15yrs warranty by 40yrs brandname supplier
Model Number 88TA6A0
Type RJ45
Application Other, Networking
Gender Male



Product Description

Taiwan Supplier Direct Attach Toolless Adjustable RJ45 UTP Modular Plug for Cat 6A Cable

88TA6A0







§ PRODUCT FACT

The 8P8C (8 position 8 contact, also backronymed as 8 position 8 conductor; often called RJ45 ) plug is the male type of modular connector commonly used for Ethernet over twisted-pair applications, where the plug on each end terminated using the T568A or T568B pin/pair assignments that are defined in ANSI/TIA-568-C.2 standard.



These connectors are commonly used in computer networking and other telephone applications involving unshielded twisted-pair (UTP), shielded twisted-pair (STP), and multiconductor flat cable. Most network communications today are carried over Category 5e, Category 6 or Category 6A cable with an 8P8C modular plug crimped on each end.







§ FEATURE

• Toolless

    - Crimping tool free.Do not have to maintain or prepare the crimping tool.

    - Easy & Convenient to terminate the plug with cable.



• Angle Adjustable

    -Prevent the cable excess bending.

    -Could be used in limited space environment.



• Mechanism Design

    -Reduce performance differences due to installation caused by different people.











§ RJ45 PLUG

- Contact: Gold plating in localized area over nickel undercoat

- Housing Material: PC, UL94 V-0 rated







§ IDC Connector

- IDC Contact: Phosphor bronze plated with nickel plating









§ ELECTRICAL CHARACTERISTICS

- Insulation Resistance: 100 M ohm

- Termination Resistance: 20 m ohm

- Dielectric Withstanding Voltage: 500Volts AC







§ CONDUCTOR ACCEPTANCE

- 22-24 AWG solid conductor with Max, 1.27mm Insulation O.D.

- Adaptable to cable O.D.: 4.0-8.0mm











§ ORDERING INFORMATION

 PART NO.  DESCRIPTION
 88TA6A0

 Field RJ45 Plug For Cat 6A Stranded & Solid Cable, Toolless,

 Angle Adjustable Backward compatible with Cat 6 & Cat 5e
