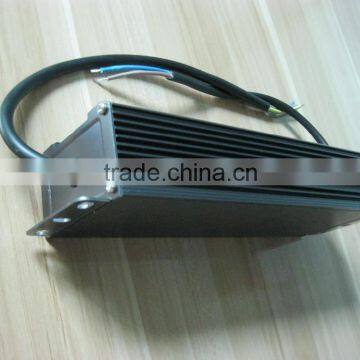

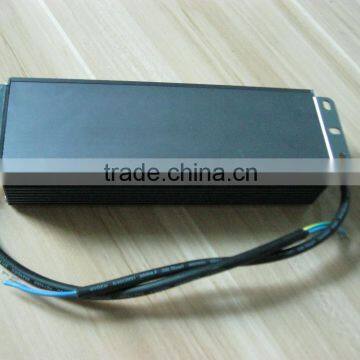

Yushi Constant Current Waterproof DC30-54V 4500mA Led Strip Power Supply

Name: Yushi Constant Current Waterproof DC30-54V 4500mA Led Strip Power Supply
Brand: Yushi
Availability: InStock

FOB Price

US$ 25 - 45 / Piece

100 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Yushi
Model Number	YS-544500K30	Output Power	Other, 200-250W
Output Type	Single	Input Voltage	Other, AC90-265V
Output Voltage	DC30-54V	Output Frequency	50/60Hz
Output Current	4500mA

Product Description

Constant current 200-300W series

Features:

Input Voltage: AC90-265V,47-63Hz, contact us if the request is special

Constant Current Output: Can be made according to customer's request

Power Factor: PFC>0.95, Max 0.99

Efficiency: EFF>88%, Max 92%

Working Temperature: Tc-25-65 ℃

Protection Function: Short circuit,overload,over-voltage,power restored

Compression Performance: Input to output, input to earth, 1.5KV-3KVAC, 1min

Safety Standard: GB4943, EN55015, UL60950, Class B

Specification:

Item NO.	Input Voltage	Output Voltage	Output Current	Max Power	Weight	Size
YS-369000K20	AC 90-265V	DC20-36V	9000mA ±3%	324W	2500g	23612560mm
YS-546000K30	AC 90-265V	DC30-54V	6000mA ±3%	324W	2500g	23612560mm
YS-545100K30	AC 90-265V	DC30-54V	5100mA ±3%	275.4W	2500g	23612560mm
YS-544500K30	AC 90-265V	DC30-54V	4500mA ±3%	243W	2500g	23612560mm

Other Constant current series LED power supply

Item NO.	Input Voltage	Output Voltage	Output Current	Max Power	Weight	Size
10-30W
YS-85300A50	AC 90-265V	DC50-85V	300mA ±3%	25.5W	150g	1153021mm
YS-45600A20	AC 90-265V	DC20-45V	600mA ±3%	27W	150g	1153021mm
YS-65450A30	AC 90-265V	DC30-65V	450mA ±3%	29.2W	150g	1153021mm
YS-36600A20	AC 90-265V	DC20-36V	600mA ±3%	21.6W	150g	1153021mm
YS-65300A30	AC 90-265V	DC30-65V	300mA ±3%	19.5W	150g	1153021mm
YS-18900A8	AC 90-265V	DC8-18V	900mA ±3%	16.2W	120g	803021mm
YS-20600A12	AC 90-265V	DC12-20V	600mA ±3%	12W	120g	803021mm
YS-25450A12	AC 90-265V	DC12-25V	450mA ±3%	11.25W	120g	803021mm
YS-42300A20	AC 90-265V	DC20-42V	300mA ±3%	12.6W	120g	803021mm
30-50W
YS-361500B20	AC 90-265V	DC20-36V	1500mA ±3%	54W	350g	1423728mm
YS-361200B20	AC 90-265V	DC20-36V	1200mA ±3%	43.2W	350g	1423728mm
YS-85450B50	AC 90-265V	DC50-85V	450mA ±3%	38.2W	350g	1423728mm
YS-65600B30	AC 90-265V	DC30-65V	600mA ±3%	39W	250g	1423728mm
YS-120300B80	AC 90-265V	DC80-120V	300mA ±3%	36W	250g	1423728mm
YS-42900B20	AC 90-265V	DC20-42V	900mA ±3%	37.8W	250g	1423728mm
YS-54600B30	AC 90-265V	DC30-54V	600mA ±3%	32.4W	250g	1423728mm
YS-36900B20	AC 90-265V	DC20-36V	900mA ±3%	32.4W	250g	1423728mm
50-60W
YS-203000C10	AC 90-265V	DC10-20V	3000mA ±3%	60W	480g	1385238mm
YS-252400C15	AC 90-265V	DC15-25V	2400mA ±3%	60W	480g	1385238mm
YS-361800C20	AC 90-265V	DC20-36V	1800mA ±3%	64.8W	480g	1385238mm
YS-541200C30	AC 90-265V	DC30-54V	1200mA ±3%	64.8W	480g	1385238mm
YS-361500C20	AC 90-265V	DC20-36V	1500mA ±3%	54W	480g	1385238mm
YS-54900C30	AC 90-265V	DC30-54V	900mA ±3%	48.6W	480g	1385238mm
YS-85600C50	AC 90-265V	DC50-85V	600mA ±3%	51W	480g	1385238mm
60-80W
YS-362400J20	AC 90-265V	DC20-36V	2400mA ±3%	86.4W	650g	1655238mm
YS-541500J30	AC 90-265V	DC30-54V	1500mA ±3%	81W	650g	1655238mm
YS-362100J20	AC 90-265V	DC20-36V	2100mA ±3%	75.6W	650g	1655238mm
YS-85700J50	AC 90-265V	DC50-85V	700mA ±3%	59.5W	650g	1655238mm
80-100W
YS-542100H30	AC 90-265V	DC30-54V	2100mA ±3%	113.4W	1000g	2007045mm
YS-363000H20	AC 90-265V	DC20-36V	3000mA ±3%	108W	1000g	2007045mm
YS-541800H30	AC 90-265V	DC30-54V	1800mA ±3%	97.2W	1000g	2007045mm
YS-362700H20	AC 90-265V	DC20-36V	2700mA ±3%	97.2W	1000g	2007045mm
YS-851000H50	AC 90-265V	DC50-85V	1000mA ±3%	85W	1000g	2007045mm
YS-362400H30	AC 90-265V	DC20-36V	2400mA ±3%	86.4W	650g	1655238mm
YS-85900H30	AC 90-265V	DC50-85V	900mA ±3%	76.5W	650g	1655238mm
100-150W
YS-364500E20	AC 90-265V	DC20-36V	4500mA ±3%	162W	1250g	2357045mm
YS-543000E30	AC 90-265V	DC30-54V	3000mA ±3%	162W	1250g	2357045mm
YS-364200E20	AC 90-265V	DC20-36V	4200mA ±3%	151.2W	1250g	2357045mm
YS-542700E30	AC 90-265V	DC30-54V	2700mA ±3%	145.8W	1250g	2357045mm
YS-363900E20	AC 90-265V	DC20-36V	3900mA ±3%	140.4W	1250g	2357045mm
YS-542400E30	AC 90-265V	DC30-54V	2400mA ±3%	129.6W	1250g	2357045mm
YS-363600E20	AC 90-265V	DC20-36V	3600mA ±3%	129.6W	1250g	2357045mm
YS-363300E20	AC 90-265V	DC20-36V	3300mA ±3%	118.8W	1250g	2007045mm
150-200W
YS-366000K20	AC 90-265V	DC20-36V	6000mA ±3%	216W	1500g	2607045mm
YS-544200K30	AC 90-265V	DC30-54V	4200mA ±3%	226.8W	1500g	2607045mm
YS-543600K30	AC 90-265V	DC30-54V	3600mA ±3%	194.4W	1500g	2607045mm
YS-543300K30	AC 90-265V	DC30-54V	3300mA ±3%	178.2W	1500g	2607045mm
YS-364800K30	AC 90-265V	DC20-36V	4800mA ±3%	172.8W	1500g	2607045mm
4 Outputs
YS-541200K30-4	AC 90-264V	DC30-54V*4PS	1200mA*4PS	260W Max	2500g	23612560mm
YS-54900K30-4	AC 90-264V	DC30-54V*4PS	900mA*4PS	190W Max	2500g	23612560mm
YS-54600K30-4	AC 90-364V	DC30-54V*4PS	600mA*4PS	130W Max	2500g	23612560mm
YS-85300K50-4	AC 90-364V	DC50-85V*4PS	300mA*4PS	100W Max	2500g	23612560mm

FAQ:

1: Are you manufacturer ?

: We are the manufacturer which produce only LED power supply & Led driver. Welcome to visit our factory anytime.

2: How long have your factory been established?

: 8 years ,since 2008

3: What kind of LED power supply do you produce?

: We have constant current series, constant voltage series, rain-proof series,and switch power supply series, they can be applied in almost any LED light.

4: Do you accept OEM?

: Yes, we do

5: How long is your product warranty?

: All our products have 3 year warranty, you don't need to worry about the quality problem.

6: What kind of payment term do you accpet?

: T/T,L/C,Paypal,Western Union,etc.

7: What's your Lead time?

: Usually our delivery time is 1~20 days. We operate business without any delay.
