Product Details
Place of Origin: | Shandong, China | Brand Name: | Bepro | Model Number: | Bepro14000115 |
Product Description

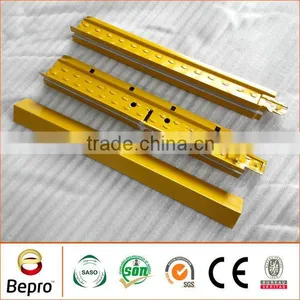

FUT CKM ,Ceiling tee grid for ceiling panel installation
Detailed Product Description
1.Metric Size
ITEM | SPECIFICATION | PCS/100M2 | THICKNESS |
MAIN TEE | 38*24*3600 | 22.5PCS | 0.23mm-0.4mm |
32*24*3600 | |||
28*24*3600 | |||
CROSS TEE | 38*24*1200 | 135PCS | 0.23mm-0.4mm |
32*24*1200 | |||
28*24*1200 | |||
26*24*1200 | |||
SUB CROSS TEE | 38*24*600 | 135PCS | 0.23mm-0.4mm |
32*24*600 | |||
28*24*600 | |||
26*24*600 | |||
WALL ANGLE | 20*20*3000 | 20PCS | 0.3mm,0.4mm |
22*22*3000 | |||
24*24*3000 |
2. Inch size
ITEM | SPECIFICATION | PCS/100M2 | THICKNESS |
MAIN TEE | 38*24*3660 | 22.5PCS | 0.23mm-0.4mm |
32*24*3660 | |||
28*24*3660 | |||
CROSS TEE | 38*24*1220 | 135PCS | 0.23mm-0.4mm |
32*24*1220 | |||
28*24*1220 | |||
26*24*1220 | |||
SUB CROSS TEE | 38*24*610 | 135PCS | 0.23mm-0.4mm |
32*24*610 | |||
28*24*610 | |||
26*24*610 | |||
WALL ANGLE | 20*20*3050 | 20PCS | 0.3mm,0.4mm |
22*22*3050 | |||
24*24*3050 |
Note:
a. The thickness can be 0.23mm to 0.4mm according to customers' requarement.
b. The sizes can be made to customers' order.
Tee grid exposed grid system is the economical framing suspension grid system used with ceiling tile, like metal board, gypsum tiles, and mineral fiber board.
Since it looks like capital T, so normally this ceiling frame is named T grid, also name T bar, T ceiling frame, Suspension ceiling system, ect.
Tee bar system has been designed for easy and fast erection by stab-in coupling without using of special tools.
Easy installation, excellent function of fire-resistance, longer life-span, stronger weight capacity, ect, all these benefits helps T grid winning the international market. This system beat wooden frame perfectly.
1) More elegant in style and beauty, easy match to decoration |
2) Good strength, high quality |
3) Cauterization-resistance, water-resistance |
4) Rustproof, fire resistance, stainless, rust resistance & convenient application. |
5) High Quality Material, Moisture proof, anti-corrosive, non-deforming, fadeless. |
6) High precision, high symmetry, high close fitting. |
7) Strong bearing capacity |
8) Safe, firm and easy to match with all kinds of mineral fiber board, aluminum ceiling and gypsum board. |
Standard Export Carton Packing (with Bepro's mark or N/M or with customer's request) main tee: 27pcs/carton, 259carton/20ft cross tee: 75pcs/carton, 558carton/20ft cross tee: 75pcs/carton, 558carton/20ft Angle: 50pcs/carton, 124carton/20ft . Usually have logo on two sides, also can put on every side . 7days for 1*20GP, 10days for 1*40HQ
Please look at or www.bepro.en.china.cn ,We will submit our best price to you upon receipt of your concrete inquiry.
Our firm is an Chinese Exporter of Various ceiling T-Grid and pvc ceiling panels.
Include black cross line ceiling T-BAR,Gold cross line ceiling T-BAR,white flat ceiling T-BAR,White flat end alloy,color flat ceiling T-BAR,Color flat end alloy,Flat grooved ceiling T-BAR,Flat grooved ceiling T-BAR,Transfering print,PVC Film laminated,Pvc corner lines and so on...
1)T/T in advance, irrevocable L/C at sight
2)T/T 30% deposit, the balance 70% against the copy of B/L.
