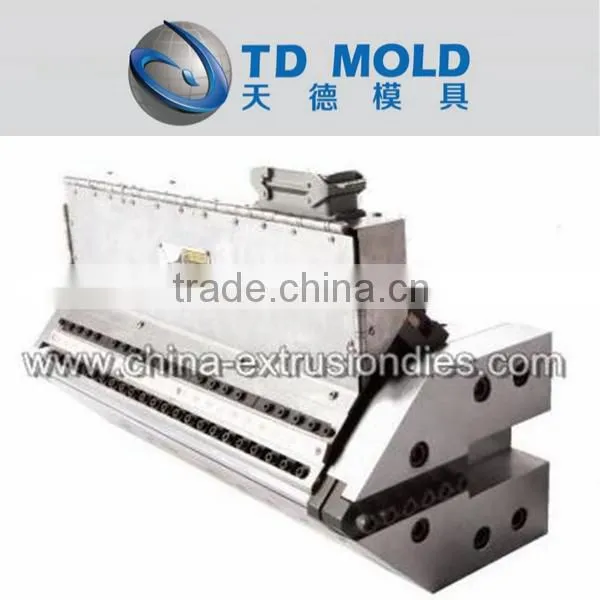

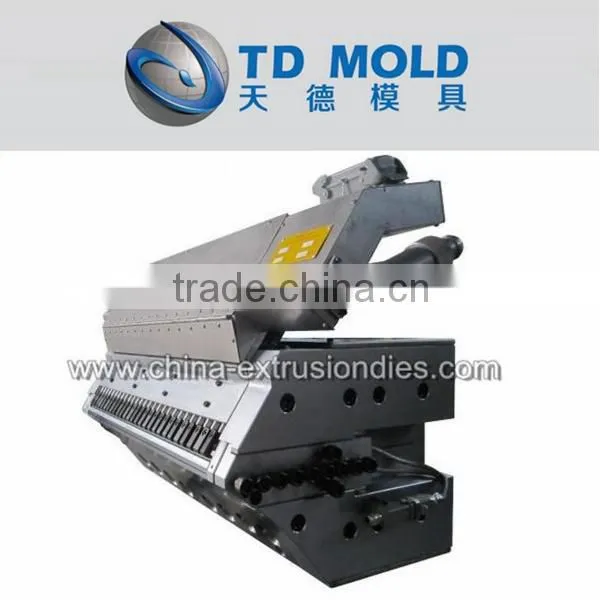

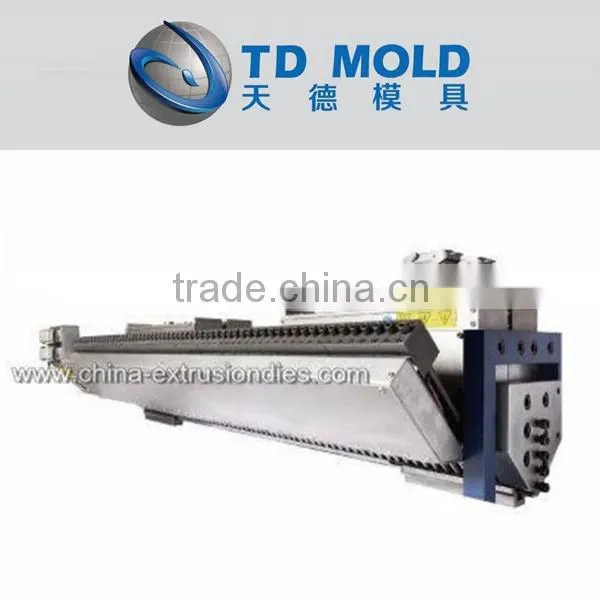

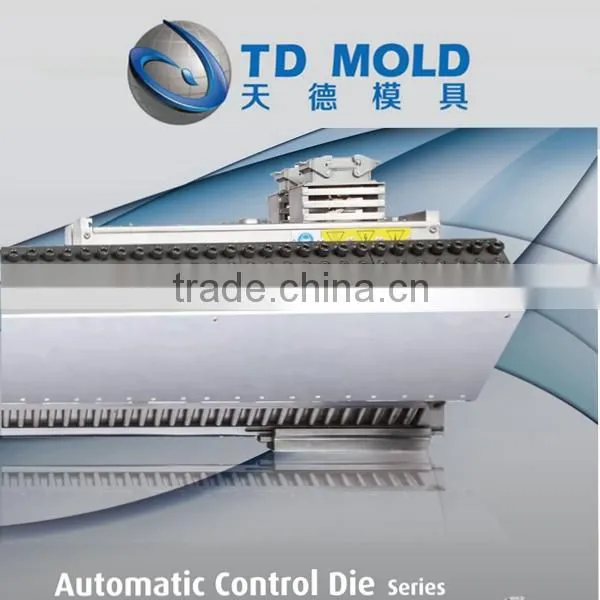

Automatic control tuning die head can accurately detect the data feed back from the product, by the automatically horizontal back and forth of the thickness gauge according to the requirements of the actual production. The automatic fine-tuning is conducted by the expansion bolt at each point in the die head fine-tuning device, to rapidly and effectively control the product precision.
The qualified products can be rapidly obtained, and the product quality is improved, to save raw materials, and maximize production efficiency.
The thermal expansion bolt and heaters are used with well-known European brands. Die body is equipped with the built-in high-quality stainless steel heating rod, to realize the sectional heating, the outer part of the die body is coated with thermal insulation material, the thermal insulation device is installed between the expansion bolt portion and die body, to rapidly and uniformly cool the air, ensuring optimal temperature control of each part. Die head is equipped with the outer block-type or inner block-type wide-size adjusting device that can reduce the thick edge.
Name |
Automatic control die |
Usage for products |
Applicable for the production of materials such as single layer or multil-layer PP, PE, CPP, CPE, LDPE, PC, PVC, PVB, PET, TPU, BOPET, BOPP, PVDF cast film or thin sheet |
Characters |
Automatic lip adjusting system is the premier technology for precisely controlling the thickness profile of the film. In addition to making possible higher quality, more accurate products, the system can generate substantial raw material savings compared to conventional manual adjustment. |
Die body is equipped with the built-in high-quality stainless steel heating rod, to realize the sectional heating, the outer part of the die body is coated with thermal insulation material, the thermal insulation device is installed between the expansion bolt portion and die body, to rapidly and uniformly cool the air, ensuring optimal temperature control of each part. | |
Die head is equipped with the outer block-type or inner block-type wide-size adjusting device that can reduce the thick edge. | |
Automatic control tuning die head can accurately detect the data feed back from the product, by the automatically horizontal back and forth of the thickness gauge according to the requirements of the actual production. The automatic fine-tuning is conducted by the expansion bolt at each point in the die head fine-tuning device, to rapidly and effectively control the product precision. | |
Die lip adjustment method |
Automatic push & pull or push only fine and flexible lip adjusting. The thermal expansion bolt and heaters are used in of well-known European brands. |
Heat Voltage |
220V or on customer’s request |
Heating way |
Heating bars made of stainless steel from Italy |
Die material |
2738 from Germany or P20 |
Screws |
High strength at 12.9 grade |
Polishing |
Lips and surface of flowing: 0.02-0.03(μm), Other surfaces: 0.03-0.04(μm). |
Chrome thickness: |
0.035-0.045mm |
Surface hardness: |
60-70HR |
Installation |
On costumer’s request |
Manufaturing process
1. Packaging Detail:
Outside package: Standard export wooden cases;
Inner package: Bubble wrap.
2. Delivery Detail:
Die length< 2000mm : within 30 days, 2000mm<Die length<3000mm, within 45 days.
The company wholeheartedly provide you with a full range of technical support and product services with a mature research and development, quality control, sales and service system.
1. Super quality:
1). Scientific Process and meticulous work from beginning to end insure that each set of die is perfect.
2). High quality steel, professional heat treatment, to prolong the maximum service life of dies.
3). Flow designing of dies are scientific and reasonable, reduce the thick edge effectively and make your cost down .
4). Using durable high quality parts: high quality stainless steel heating bar, heating uniformity, stability, high precision.
2. Competitive price, short delivery time
3. Customized products offered
1). Multiple adjustment methods of die lip opening for you to choose, convenient adjustment can save time, save labor costs to improve efficiency
2). Retain a full set of data and provide latingly technical services for you.
4. After-sale service
1). Timely response ;
2). Engineers available to service machinery overseas.
5. Profession with good reputation
Extrusion die series Including automatic control die , fast open lip die(fast gap die), coating die, various film dies,various sheet dies, multi-manifold coextrusion dies(Manifold die), single-layer or multi-layer grid hollow plate die (Hollow profile die), hollow special shape product die, and foam dies.
Ancillary equipments including co-extrusion feedblocks series, melt metering gear pump series, screen changer series, etc.
The products are widely used in the production of the plastic such as PR, BOPP, BOPET, PVDF, ETFE, PA, EVOH, EVA, TPU, ABS, PC, PMMA, PVC, PP, PE, CPP, CPE, PET, APET, PETG, PVB, PS, HIPS, LDPE, HDPE etc .
Our products are exported to Japan, the United States, Turkey, Mexico, Brazil, Bangladesh, Russia, India, Malaysia, Iran and other countries and regions and received high priase by our customers.
Please feel free to contact us, we will reply within 24h!
we want to know:
1. What's the products you want to produce?
2. What's the raw material?
3. What's the thickness of your product?
4. What's the product final width?
Thanks for your patience!
