HDPE Plate /HDPE Plastic Sheet Die

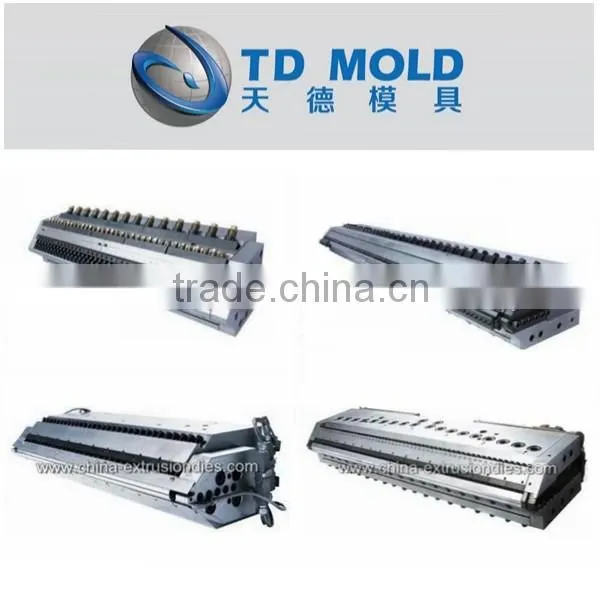

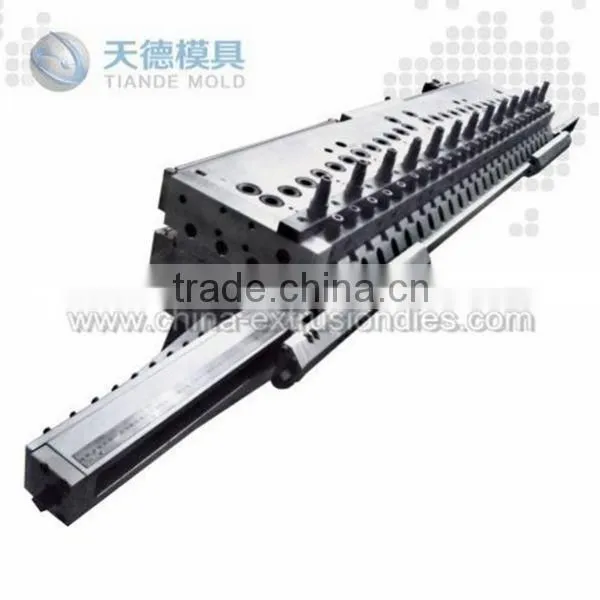

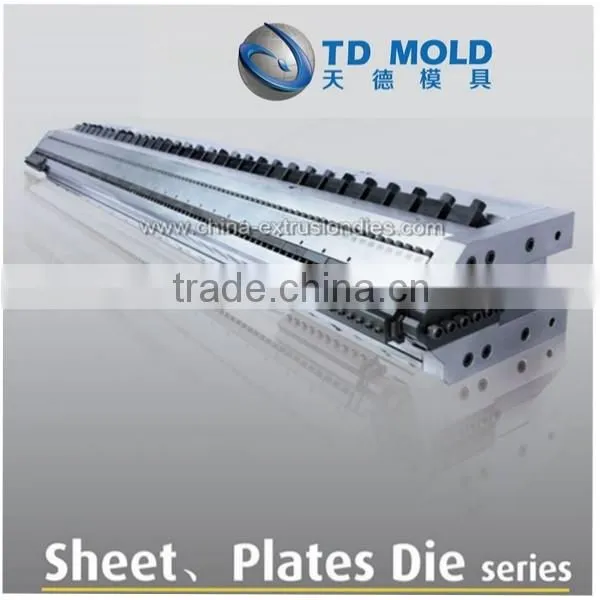

HDPE Plate /HDPE Plastic Sheet Die photo-1
HDPE Plate /HDPE Plastic Sheet Die photo-2
HDPE Plate /HDPE Plastic Sheet Die photo-3
HDPE Plate /HDPE Plastic Sheet Die photo-4
HDPE Plate /HDPE Plastic Sheet Die photo-5
HDPE Plate /HDPE Plastic Sheet Die photo-6
US$ 2,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
tiande
Shaping Mode:
Extrusion Mould
Product Material:
Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name tiande
Shaping Mode Extrusion Mould
Product Material Steel
Product Other, t-die
Product Description
Product Name
HDPE plate / HDPE plastic sheet die



Usage for products
Widely used in production all kinds of plastic sheet and plates, such as plastic PP,PS,PE,HIPS,PC,PMMA,ABS,PET,EVA,TPU,PETG,APET,LDPE,HDPE,PVC single and multi-layer sheet or plates etc;
2. PE battery isolation board
3. PP + starch degradation sheet;
4. PP + starch degradation sheet;
5. Micro foaming sheet, etc
Product thickness
0.15mm-12.0 mm
 Application
Products are widely used in various packaging; stationery, printing, pharmaceutical, building, decoration, advertising, transportation, industrial applications and so on.






Characters
1.Sheet dies without restrictor bars are used for product thickness ranges below 2mm). dies with restrictor bars are used when product thicknesses range both below and above 2mm, or for highly degradable materials.
2.When processors require larger lip gaps, a common choice is a die with a sliding upper lip. A sliding upper lip provides travel of up to 12.5mm. This design is frequently used when product thickness is always above 2mm, and materials are thermally stable. Tiande lip adjusting system and system are commonly included.
3.Gain the convenience of rapid online lip gap control with fast open lip adjusting system. Prevent costly down-time for width changes with fast open system.
4.For dedicated co-extrusion applications with relatively expensive cap layers, the multi-manifold approach is commonly preferred over a single manifold die with a feedblock. Accurate flow channel design uses less of a cap layer, providing a rapid return on investment.
Heat Voltage
220V or on customer’s request
Heating way
Heating bars made of stainless steel from Italy
Die material
2738 from Germany or P20
Polishing
Lips and surface of flowing: 0.02-0.03(μm),
Other surfaces: 0.03-0.04(μm).
Chrome thickness
0.035-0.045mm
Surface hardness
60-70HR
Installation
On costumer’s request
Products Show
Application fields
About Us

    Company information

   Taizhou Huangyan Tiande Mold Machinery Co., Ltd. is one of the leading manufacturer in China which specialized in various of plastic extrusion die,include the extrusion flat die head (covering cast film die,oriented film die, sheet die, plate/board die ,film extrusion die heads) ,utomatic control die , fast open lip die(fast gap die), coating die, various film dies,various sheet dies, multi-manifold coextrusion dies(Manifold die), single-layer or multi-layer grid hollow plate die (Hollow profile die), hollow special shape product die, foam dies.and ancillary equipments(co-extrusion feedblocks series, melt metering gear pump series, screen changer series, etc. )
   With more than 15 years' experience in switch field,Tiande company has mature craft,advanced technology and strong technical power,which enable us to have comprehensive ability on researching,developing, designing and prduction,and present obvious advanced ability and profession.

   Customer Photo
Packing & Delivery
Our Service

   Tiande Company regards "Quality First, Credit First" as the everlasting topic,it insists on developing business with science & technology and researching and developing new products continuously.Under top quality, excellent service, good reputation.Tiande wishes to cooperate with clients from all over the world to create brilliant future.
