Specifications
concrete batching machine on sale12 months warranty
ISO,CE,GOST
Train your staff
22 years producing experience
Zhengzhou Dayu concrete batching plant on sale
About us:
As top10 asphalt mixing plant and concrete batching plant manufacturer of China,Zhengzhou Dayu Machinery Co.,Ltd. established in 1992 and has been focused on concrete batching plant producing for 22 years.
Dayu company business scope:
Stationary Asphalt Mixing Plant:
LB series:40t-400t/h.(Batch Mix Type) DHB series:20t-100t/h.(Drum Mix Type)
Mobile Asphalt Mixing Plant:
MDHB series:20t-100t/h.(Drum Mix Type) QLB series:10t-80t/h.(Batch Mix Type)
SLB series:8t-30t/h.(Drum Mix Type)
Concrete Batching Plant:
Stationary concrete batching plant:HZS series from 25m3/h--150m3/h.
Mobile concrete batching plant:YHZS series from 40m3/h--80m3/h.
Product Introduction:
Hopper lift concrete batching plant with 25m3-75m3/h sale belongs to compulsory and efficiency equipment, it can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency, it is widely used medium scale building works, road and bridge works and concrete products prefabrication plants, and is an ideal equipment to produce commercial used concrete.
Technical Parameters of Hopper Lift Concrete Batching Plant with 25m3-75m3/h On Sale
| Type | HZS25 | HZS35 | HZS50 | HZS75 |
| Capacity (m3/h) | 25 | 35 | 50 | 75 |
| Mixing Time (s) | 60 | 60 | 60 | 60 |
| Max Aggregate Size(mm) | 60/80 | 60/80 | 60/80 | 60/80 |
| Discharging Height(mm) | 3800 | 3800 | 3800 | 3800 |
| Total Power (kW) | 60 | 70 | 80 | 90 |
| Total Weight (Ton) | 25 | 30 | 50 | 54 |
| Total Dimensions (m) | 15×8×12 | 15.2×8.5×15.4 | 18.2×10×19.4 | 18×10×19.4 |
Main Features of Hopper Lift Concrete Batching Plant with 25m3-75m3/h On Sale
1. Zhengzhou Dayu supply the hopper lift concrete batching plant on sale with the best quality and the lowest price.
2. The concret plant is widely used in many field.
3. Concrete batching machine contain concrete batching equipment, material supply, batching system ,electric weighing, steel structure, and computer control.
4. It is ideal equipment for building project, building ground and precast product factory.
5. The machine adopts JS concrete mixer, it has good mixing quality and high efficiency.
6. The batching machine adopts PLD series, it is measuring nicety and high produce efficiency. The cement is store in cement silo and feeding by screw conveyor. The water supply system is composed by water tank, water pump and water wager.
7. The whole batching machine and mixing course is automatism by electrical control system(it also can be controlled by hand).
8. The structure is easy and simple to install and debug .It is adopts advanced system and imports component with high dependability.
Screw conveyor

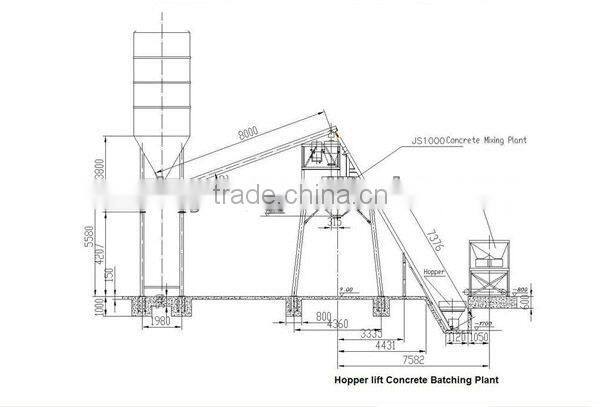

Structure picture

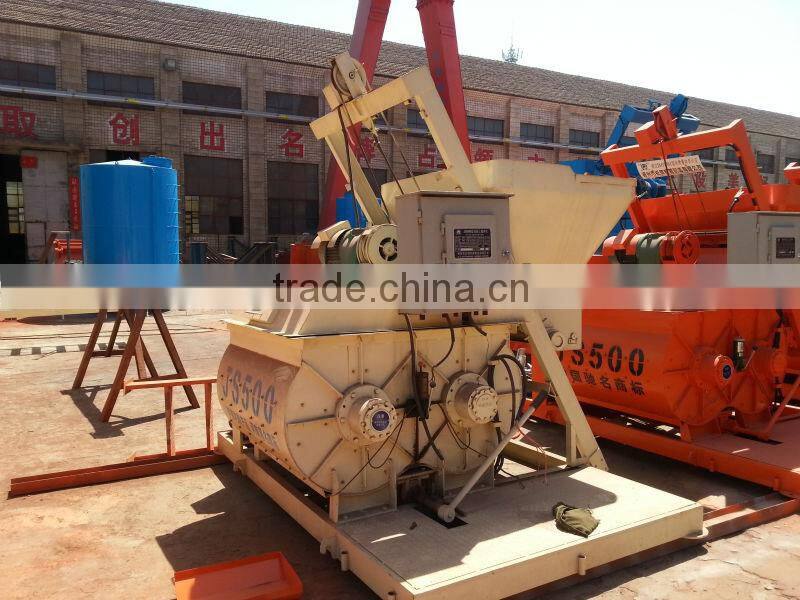

Mixer of the concrete batching plant
Customer visit picture
Our certificates
