pool pump inverter,water pump inverter,solar swimming pool pump inverter

Specifications

pool pump inverter,water pump inverter,solar swimming pool pump inverter.
1. IPX5 waterproof..
2. 220V/110V.
3. CE/RoHS/EMC

pool pump inverter,water pump inverter,solar swimming pool pump inverter

 Attn: Joy Luo     Skype: poolspa2

Pls feel free to contact with me & Welcome to visit our factory

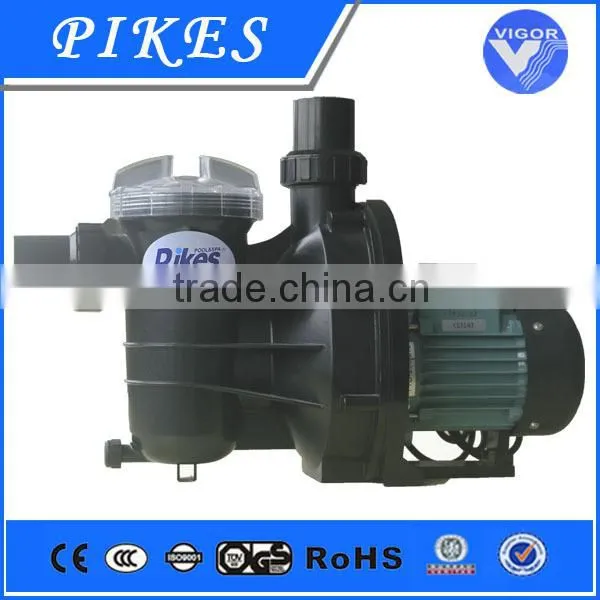

"SS" Series Pump



mini water pump

 "SS" series swimming pool pump is design for medium head

installation in domestic pool and spa pool. 1.5 inch suction and

discharge port with transparent lid. It operates at a low decibel

and energy consumption which requires minimal maintaince.







Highlight Features

mini water pump

1	Asynchronous, two poles
2	Class insulation: 130
3	IPX5 waterproof standard
4	Built-in thermal protection
5	Overload protection
6	External heat sink to ensure maximum cooling capability
7	Available in 50Hz or 60Hz with 220V / 110V
8	Special design union compatible for both Imperial and Metric measurement standard
9	S.S 316 Shaft
10	S.S 316 Mechanical seal
11	Extremely quite running
12	Transparent lid for easy checking
13	Using NSK bering
14	Easy maintenance and repairs

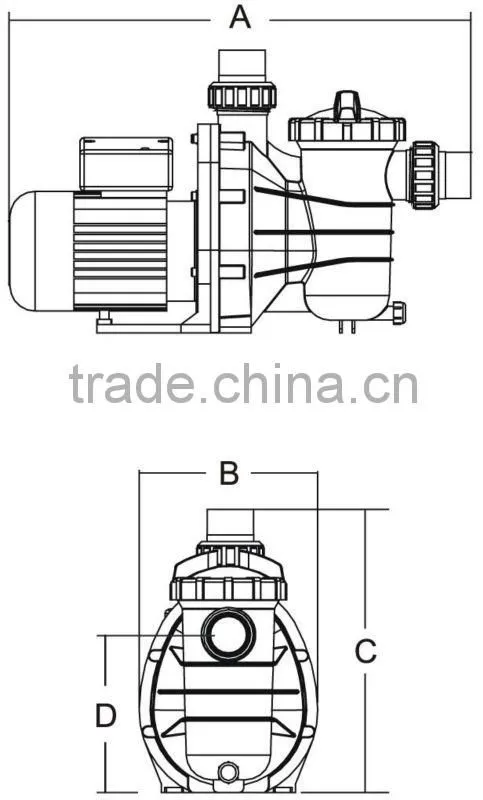

Technical Information & Dimension

mini water pump

	mini water pump
	Model No	Connection Size (IN)	A mm	B mm	C mm	D mm	Input power (kW)	Horsepower (HP)
	SS020	1.5 inch / 50mm	507	211	340	195	0.28	0.2
	SS033						0.43	0.33
	SS050		552				0.55	0.5
	SS075						0.75	0.75
	SS100						0.90	1
	SS120						0.97	1.2

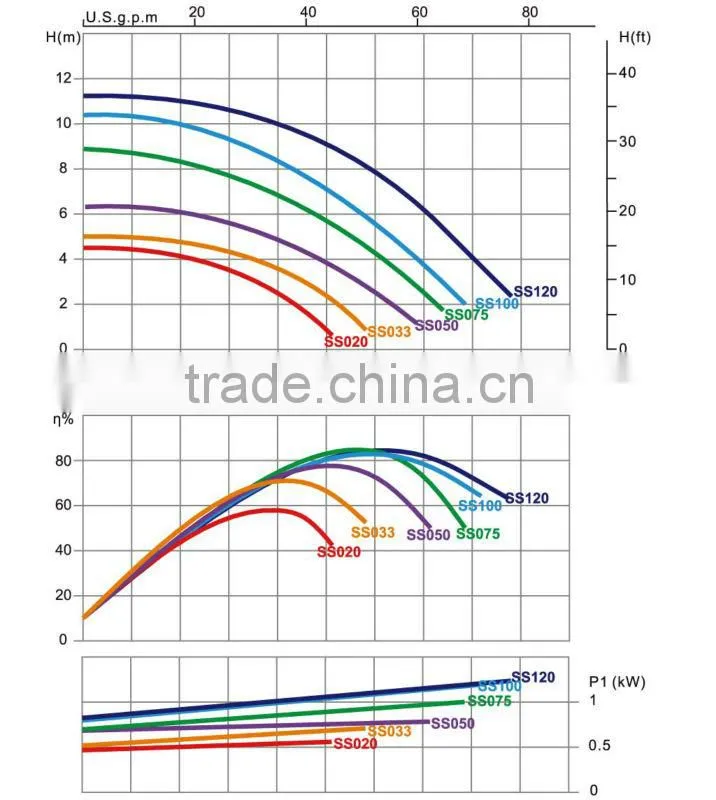

Technical Information

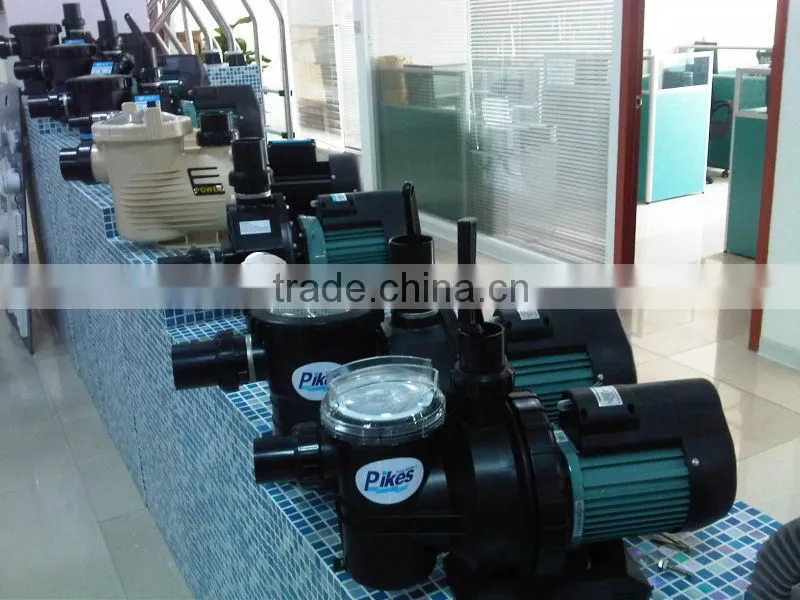

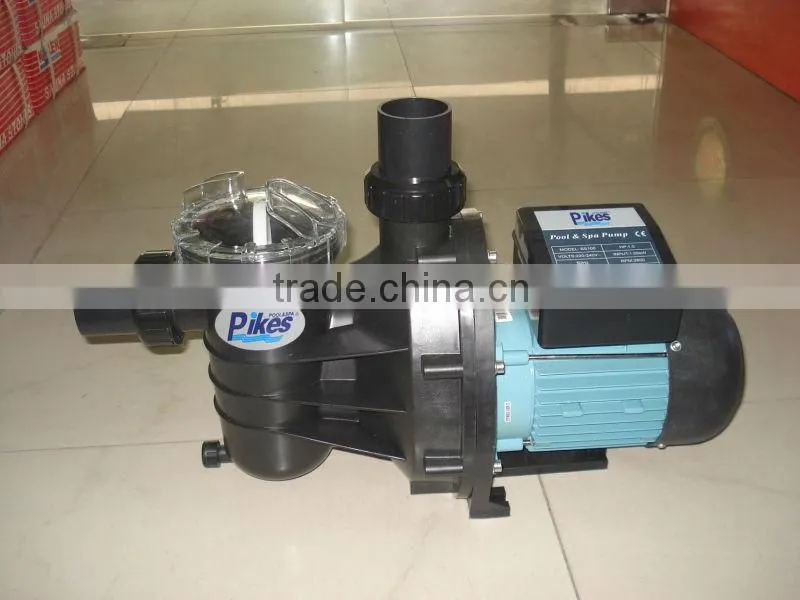

Pumps Real Pictures

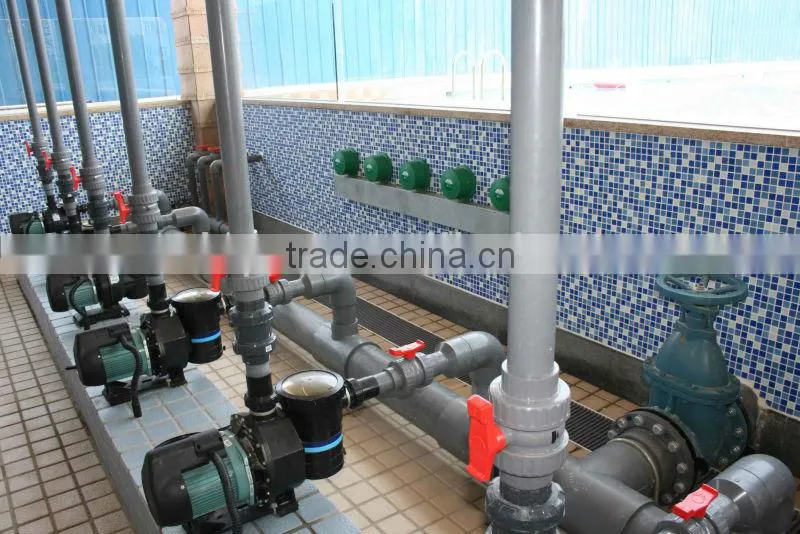

Pumps Working Pictures

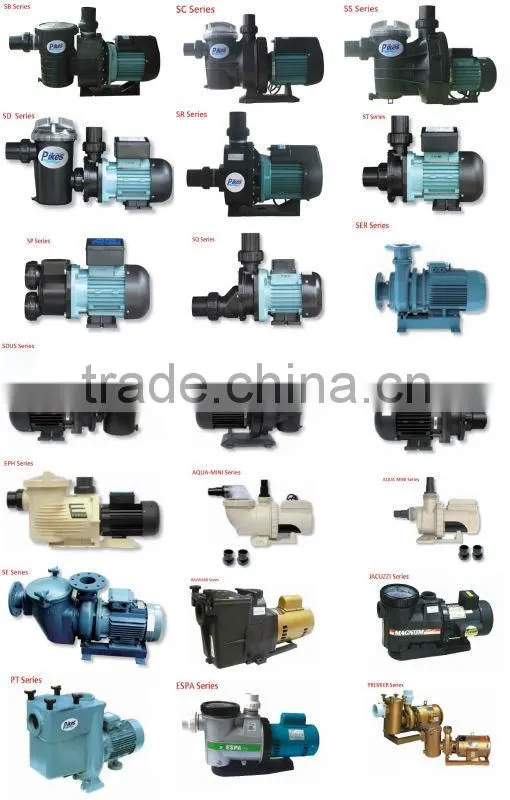

More Models



Payments & Delivery & Discount



1	Payment	30% in advance,+70% balance should be paid before delivery
2	Delivery	1x20ft for 15 days;1x40ft for 20 days
3	Port of Loading	Huangpu,Mainland china
4	Discount	Are offered baced on order quantities



Guangzhou Vigor Health Equipment Co., Ltd.

A professional manufacturer of high quality swimming pool products for more than 15 years.

10.000m² factory in Qingyuan city, 1000m² Office & show room in Guangzhou.
