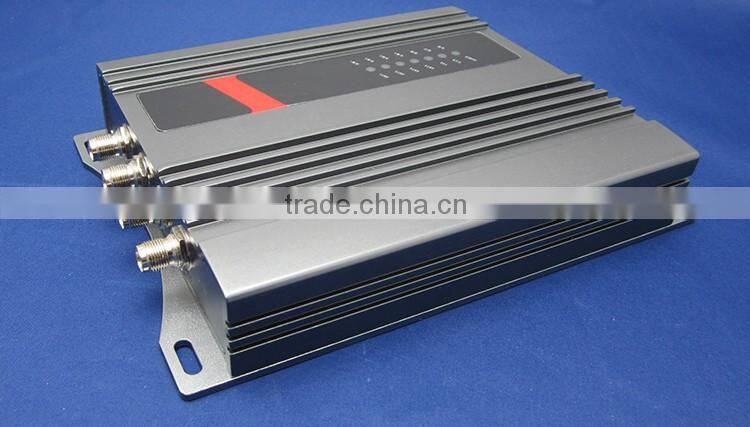

TCP EPC CLASS1 GEN2 ISO18000-6B 902~928MHz cheap uhf rfid gate reader for Parking System
Product Advantages
UHF401 is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Features
■ Self-intellectual property;
■ Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
■ 902~928MHz frequency band(frequency customization optional);
■ FHSS or Fix Frequency transmission;
■ RF output power up to 30dbm(adjustable);

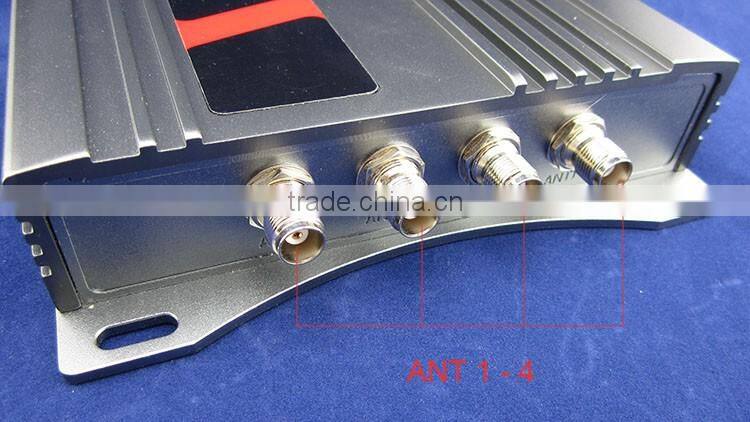

■ 4 TNC antenna port;
■ Support auto-running, interactive and scanning work mode;
■ Low power dissipation with single +9 DC power supply;
■ Support RS232, RS485, TCPIP with other interface optional;
■ Built-in LED, Buzzer, GPIO and Relay;
■ High reliability design.

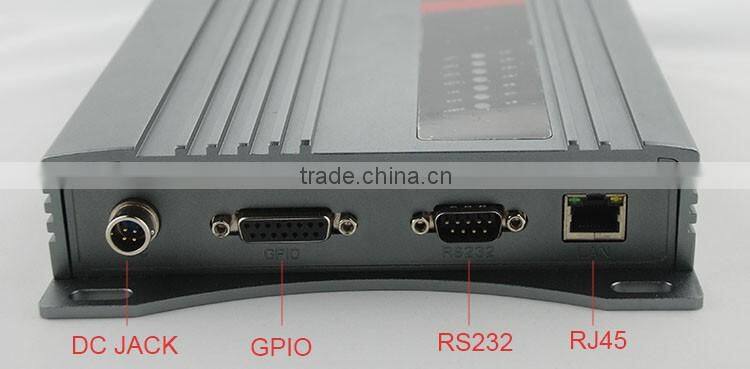

Communication interfaces:USB,RS232, RS485, RJ45 (TCP / IP) With WIFI and POE optional
Antenna ports: TNC (can be customed)
Connection programs as follow:
The UHF rfid reader can connect four antena,Many kinds of antena can be chosed ,such as Ceramic Chip Antenna,circularly polarized antenna,planar antenna,rod antenna.The reader connect pc by the interface of usb,rs232,rs485,rj45(TCP/IP) with wifi and poe optional.

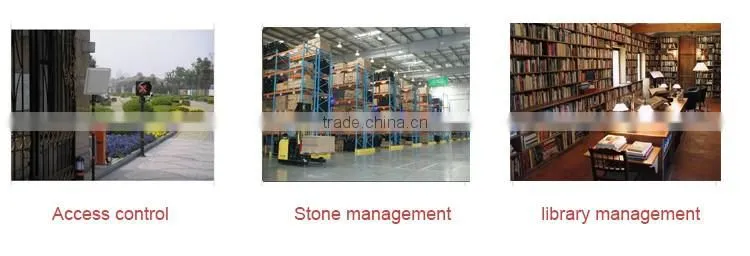

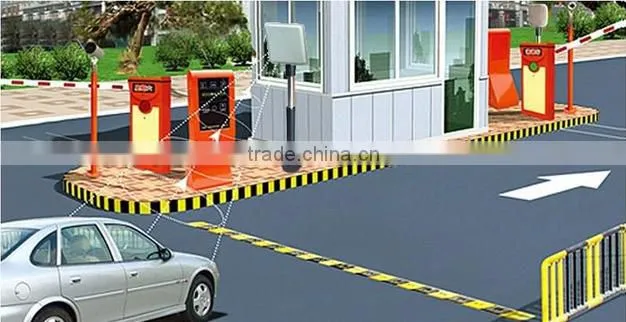

Application of The reader
Parameter Tabel
