Handheld Android Mobile Uhf Rfid Reader With Barcode Scanner

Handheld Android Mobile Uhf Rfid Reader With Barcode Scanner thumbnail-1
Handheld Android Mobile Uhf Rfid Reader With Barcode Scanner thumbnail-2
Handheld Android Mobile Uhf Rfid Reader With Barcode Scanner thumbnail-3
Handheld Android Mobile Uhf Rfid Reader With Barcode Scanner thumbnail-4
Handheld Android Mobile Uhf Rfid Reader With Barcode Scanner thumbnail-5
Handheld Android Mobile Uhf Rfid Reader With Barcode Scanner thumbnail-6
Handheld Android Mobile Uhf Rfid Reader With Barcode Scanner photo-1
Handheld Android Mobile Uhf Rfid Reader With Barcode Scanner photo-2
Handheld Android Mobile Uhf Rfid Reader With Barcode Scanner photo-3

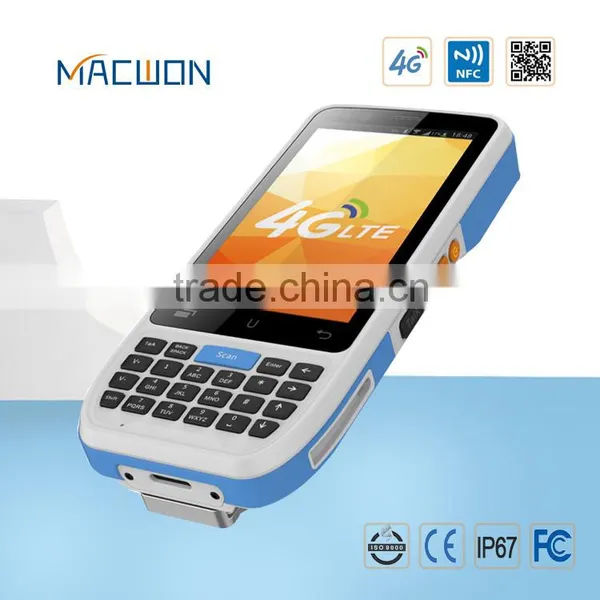

Handheld Android Mobile Uhf Rfid Reader With Barcode Scanner photo-4
Handheld Android Mobile Uhf Rfid Reader With Barcode Scanner photo-5
Handheld Android Mobile Uhf Rfid Reader With Barcode Scanner photo-6
US$ 200 - 518 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
MACWON
Model Number:
MCHB600-1 Handheld Rfid Reader
Contact Supplier Request Quote Chat Now
Shanghai Macwon Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name MACWON
Model Number MCHB600-1 Handheld Rfid Reader
Product Description

Handheld android mobile uhf rfid reader with barcode scanner

Product Advantages

■  1. Android 6.0 O.S, strong compatibility, higher running speed

■  2. Support 4G Full Networks, FDD-LTE, TDD-LTE, WCDMA, CDMA2000, TD-SCDMA, GSM

■  3. Large memory, 1GB RAM + 8GB ROM, 8MP auto focus camera

■  4. Large screen, 4 inch sunlight readable Corning Gprilla Glass LCD screen, high resolution(800*480pixels),multi-touch,larger display area and better user experience cpmpared with similar products

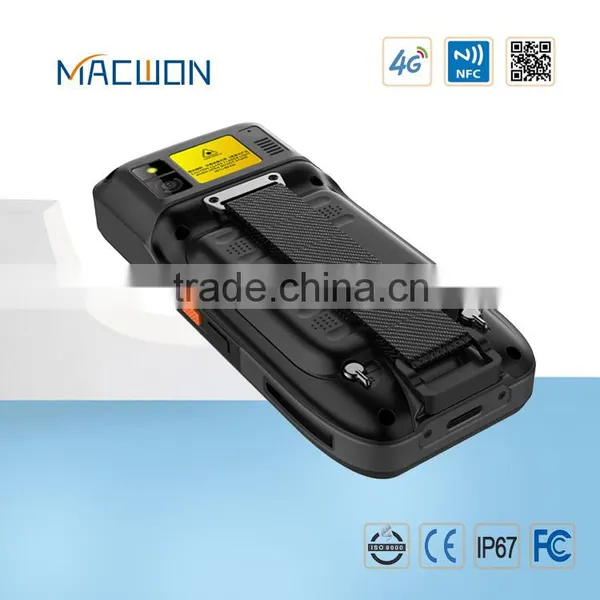

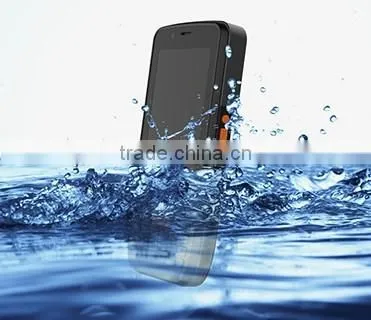

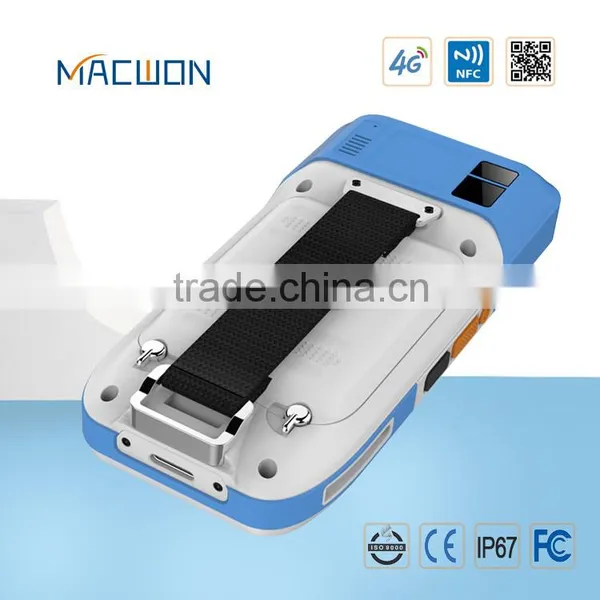

■  5. IP 6 grade, easy to take in hand and carry, wrist strap at the back can be used in long time, to prevent slipping,1.5m/4.9ft drop survival

■  6.Powerful data collection, using the imported scanning engine, easily read traditional 1D/2D barcode,damage code and barcode with plastic film, and also support HF RFID reading

■  7.Applications in many fields,e.g.Manufacturing, Mobile law enforcement, Retail trade, Logistics Express, Medical industry, Public utilities, Video tracing and Gas meter reading

 Parameter Tabel

Physical Parameter
Desigh
Bar phone
Keys
28
Dimensions
160 mm x 70mm x 24 mm
Weight
350g
Performance Parameter
OS
Android 6.0
CPU
Qualcomm 8909, 1.2G, quad-core(can be upgraded to Qualcomm 8953 2.2g octa-core)
Storage
8GB ROM + 1GB RAM


Communication band
FDD-LTE: B1/B3
TDD-LTE: B38/B39/B40/B41
WCDMA: B1/B2/B5
CDMA2000: BC0
TD-SCDMA: B34/B39
GSM:850/900/1800/1900
Display
TFT LCD 4 INCH, Display Resolution 800*480, sunlight readable
Touch Screen
Capacitive touch screen, Corning Gorilla Glass LCD
Camera
Rear 8.0M, auto focus, flashlight
GPS
Supported, 10m
WIFI
IEEE 802.11b/g/n
Bluetooth
BT4.0 LE
Optional Fuctions
RFID/NFC
Supported
Barcode Scanner(optional)
1D / 2D barcode scanner
Memory card extension
T-Flash/Micro SD card , up to 32G
Battery Pack
3.7v , 4000mAh
USB
Mini-USB 5pin
AC/DC Adapter
DC 5.5V 1.2A
Voice Call
Supported
Receiver
Supported
Speaker
Supported
Vibration Prompt
Supported

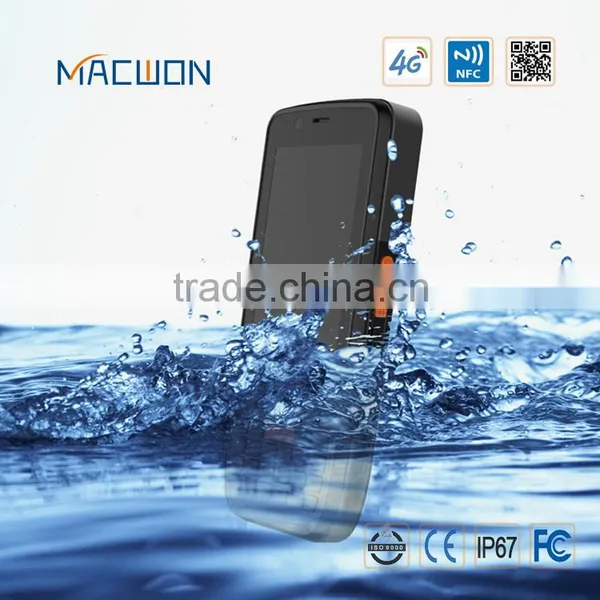

Ruggedness
IP67
Rrliability
MTBF no less than 10000h
Working Environment
Working Temperature
-20℃~+70℃
Storage Temperature
-40℃~+70℃
Working Humidity
<90%RH
Storage Humidity
20% ~ 93% RH(40℃）
