External NFC Contactless Smart Card Reader as a New Products 2016 Made in China

External NFC Contactless Smart Card Reader as a New Products 2016 Made in China thumbnail-1
External NFC Contactless Smart Card Reader as a New Products 2016 Made in China thumbnail-2
External NFC Contactless Smart Card Reader as a New Products 2016 Made in China thumbnail-3
External NFC Contactless Smart Card Reader as a New Products 2016 Made in China thumbnail-4
External NFC Contactless Smart Card Reader as a New Products 2016 Made in China thumbnail-5
External NFC Contactless Smart Card Reader as a New Products 2016 Made in China photo-1

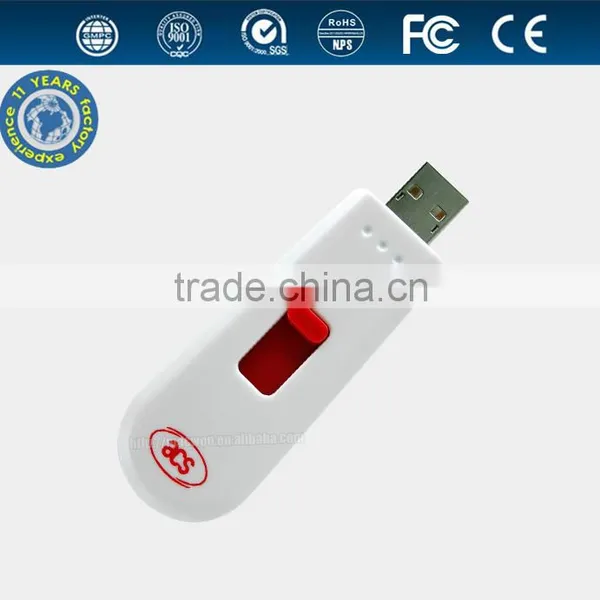

External NFC Contactless Smart Card Reader as a New Products 2016 Made in China photo-2

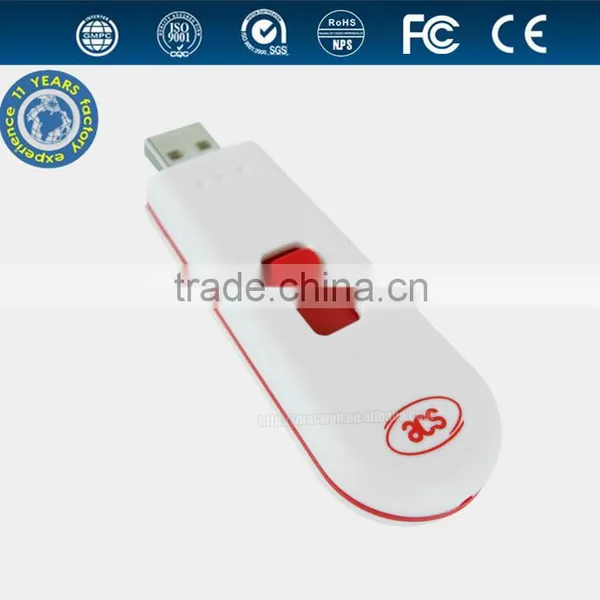

External NFC Contactless Smart Card Reader as a New Products 2016 Made in China photo-3

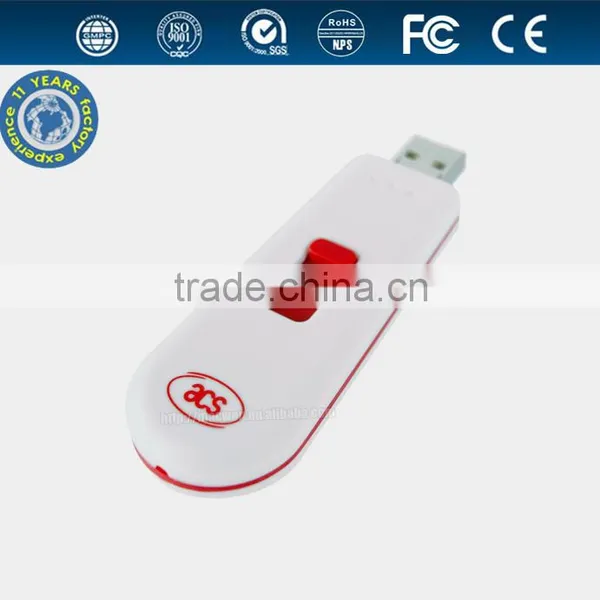

External NFC Contactless Smart Card Reader as a New Products 2016 Made in China photo-4

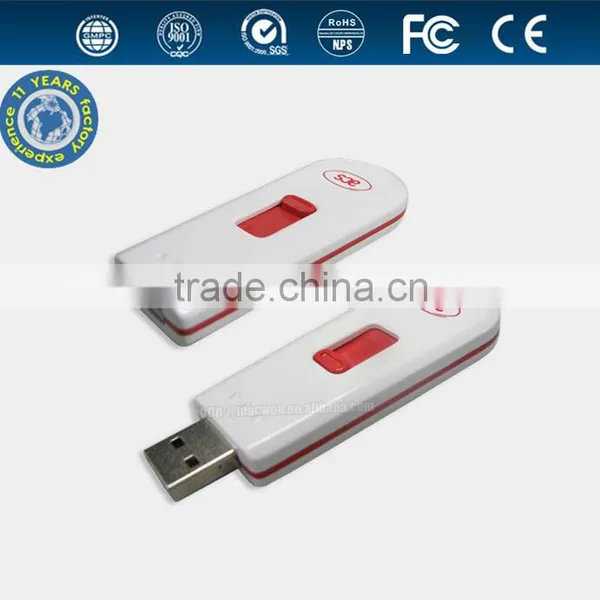

External NFC Contactless Smart Card Reader as a New Products 2016 Made in China photo-5
US$ 35 - 65 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
NFC reader
Model Number:
ACR_122T
Contact Supplier Request Quote Chat Now
Shanghai Macwon Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name NFC reader
Model Number ACR_122T
Product Description

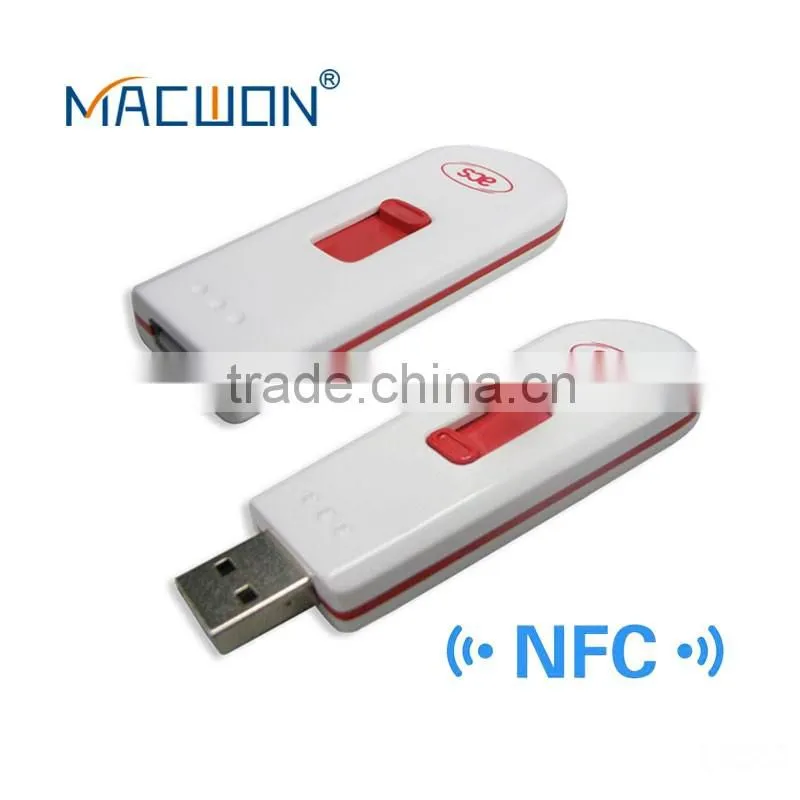

NFC Contactless Smart Card Reader

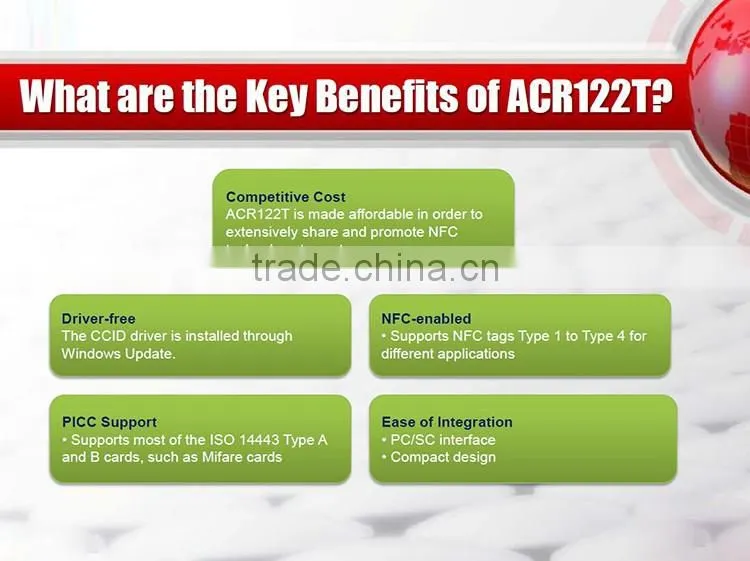

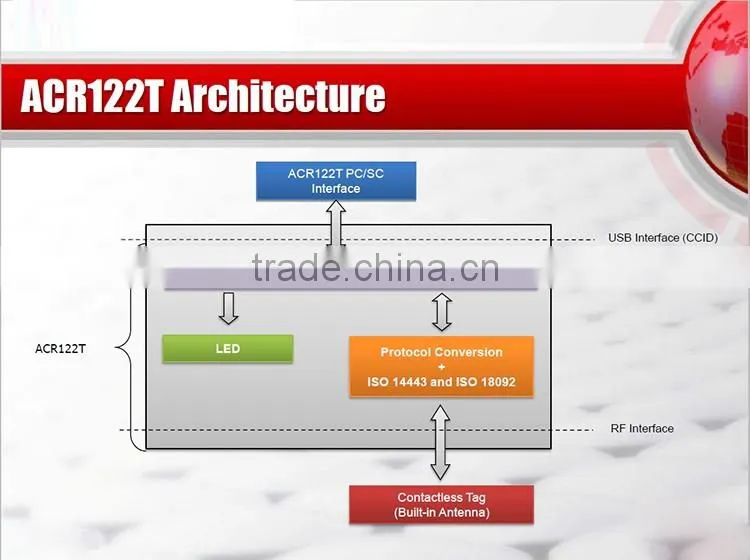

The ACR122T NFC Contactless Smart Card Reader is the token version of the ACR122U NFC Reader. ACR122T is especially designed for Near Field Communication (NFC) applications requiring great portability and utmost user convenience. Developed based on 13.56 MHz contactless (RFID) technology and the ISO/IEC 18092 standard for NFC, it supports not only MIFARE® and ISO 14443 Type A and B cards, but also all four types of NFC tags.

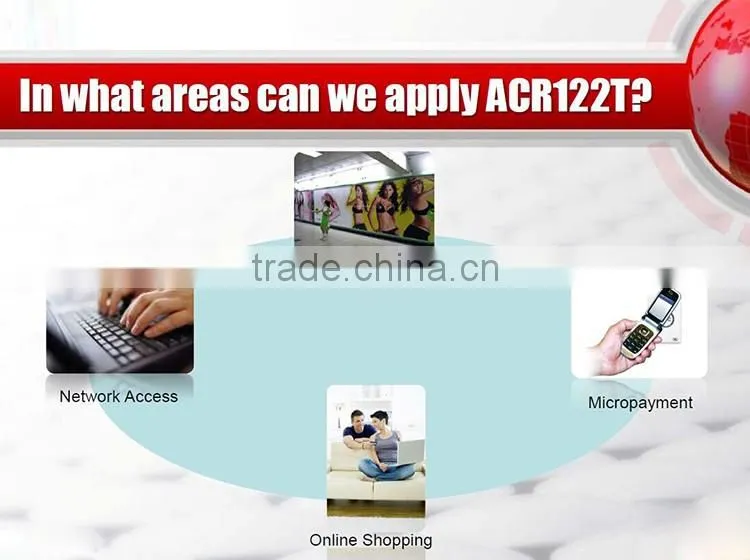

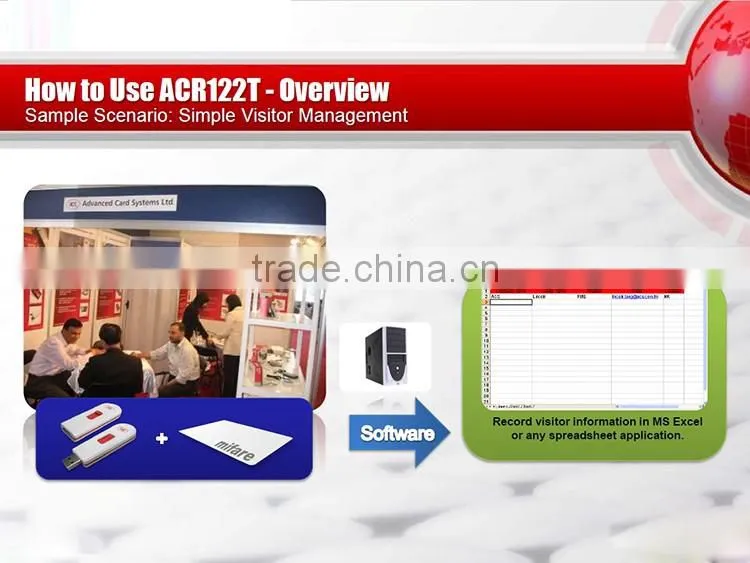

ACR122T is a plug-and-play USB device with CCID and PC/SC compliance, ensuring interoperability with different systems and applications. It is ideal for secure personal identity verification and online micro-payment transactions, including computer log-on, e-payment, home banking and network authentication.

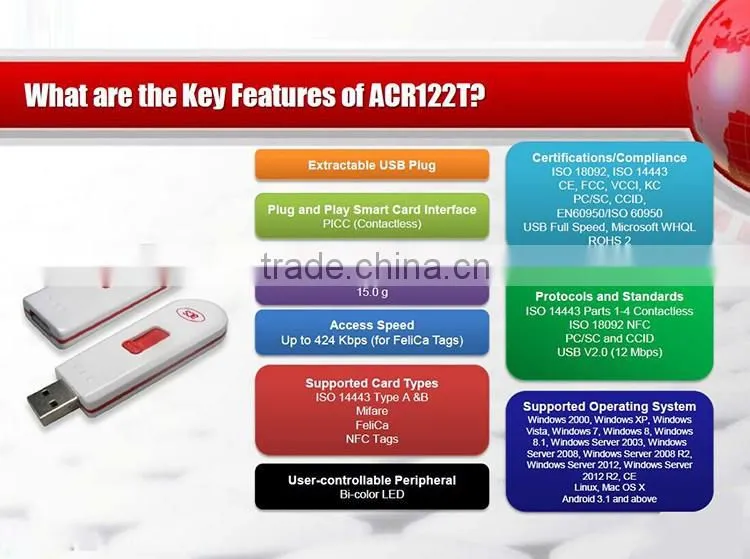

Features

         USB 2.0 Full Speed Interface
        CCID Compliance
        Smart Card Reader:
                    Read/write speed up to 424 kbps
                    Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
                    Supports ISO 14443 Type A and B, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
                    Built-in anti-collision feature (only 1 tag is accessed at any time)
        Application Programming Interface:
                    Supports PC/SC
                    Supports CT-API (through wrapper on top of PC/SC)
         Peripherals:
                  User-controllable bi-color LED
                  Supports Android™ OS 3.1 and above

specifications
Mode
ACR_122T

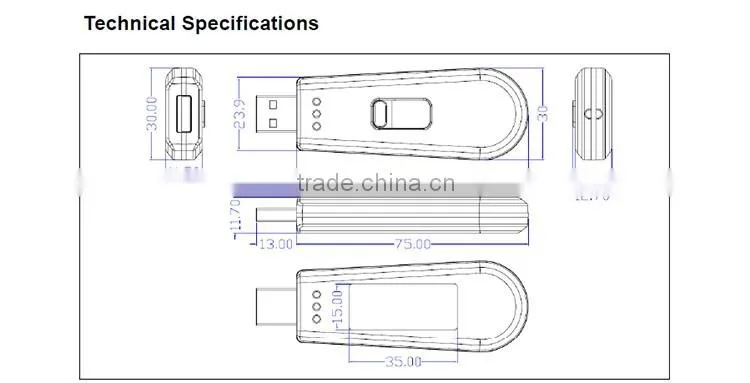

Dimensions
75mm(L)x30mm(W)x12.7mm(H)
Weight
15 g
Interface
RS232 for data communication,USB for power transmission
Operating Distance
Up TO 50mm(depends on the tage type)
Supply Voltage
Regulated 5V DC
Supply Current
200 mA(operating);50mA(standby);100mA(normal)
Operating Temperature
0 - 50℃
Operating Frequency
13.56Mhz
Smart Card Interface Support
ISO14443 Type A&B;Mifare;Felica;4 types of NFC(ISO/IEC18092)tags
Compliance / Certifications
ISO 18092,ISO14443,CE,FCC,KC,RoHS 2

Operating System Support
Windows®
Win CE 5.0 and 6.0
Linux®
Mac OS®
Android™
Our Company
Factory
Certifications
Packing & Delivery

Delivery

1. For small quantity parcel, we use the express couriers such as DHL, TNT, UPS, FEDEX ETC for quick shipment. It normally takes around 3~5 working days to receive the shipment.

2. For larger quantity, we normally ship by air and it normally takes around 5~7 working days to receive the pracel.
