Popular Model Wiegand One Door Access Control Board Access Controller System TCP/IP

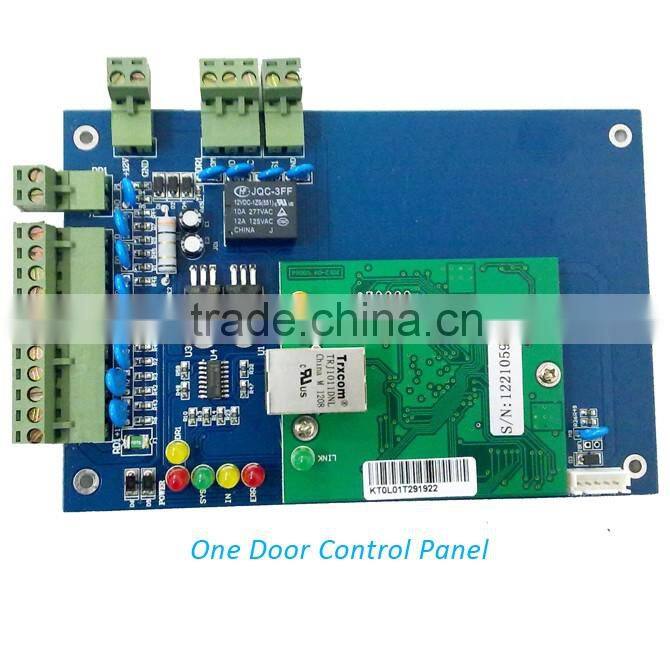

Popular Model Wiegand One Door Access Control Board Access Controller System TCP/IP photo-1
US$ 45 - 60 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Access Control board
Model Number:
AC2001.NET
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name Access Control board
Model Number AC2001.NET
Product Description

Popular model wiegand one door access control board access controller system TCP/IP

Function
Advanced design platform -Winged intelligent ARM plaform of High-end 32-bit CUP from International top brand ATMEL, enables to expand without limits.

High-speed operation circuit design-High operation speed, door opens immediately after swiping the card even the 20.000 memory is full.
Pure TCP/IP highly communication -More Optimized and advanced communication speed, communication quality and real-time communication
Conventional Function: offline operation; real time supervision; photo display; mass storage; flexible userprivilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map etc.

Professional function: for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.
Access control management software also includes all-in-one-card management system such as nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system.

specifications
Communication
TCP/IP
English Software supportable database:
SQL
Description
Control 1 door, IN&OUT
Power supply
12VDC; 4-7A
Power Consumption of Circuit Board
Less than 100MA
Input Format of Reader
Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
Quantity of Readers
2 pcs
Door Controlled
1 door
Door opening time extending setting
1-600 Seconds(adjustable)
Operation Temperature
-40℃-70℃
Operation Humidity
10-90 % RH, No Condensation
User Capacity
20,000
Events Capacity
100,000
Max Distance from Reader to Controller
100M (suggestion distance 80M)
Alarm for long time door open, illegal break in, intimidate
yes
Fire and alarm Output
Expansion board is available
ompulsive open and close door at long time
Yes
Open door in remote distance
Yes
Inter block
Yes
Anti pass back and tail
Yes
Multi-card open door
Yes
Open long time at specified time
Yes
Anti pass back and tail
Yes
Electronic map
Yes
Multi-card open door
Yes
Open long time at specified time
Yes
Urgency locking
Yes
First card unlocking
Yes
Unlock based on internal and external validation
Yes
Keypad (card+passwor, supper password)
Yes
