Power Generator

Power Generator thumbnail-1
Power Generator thumbnail-2

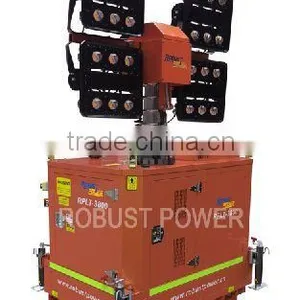

Power Generator thumbnail-3
Power Generator thumbnail-4

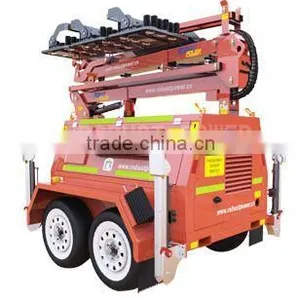

Power Generator thumbnail-5
Power Generator thumbnail-6
Power Generator photo-1

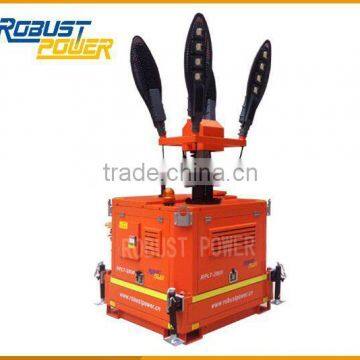

Power Generator photo-2

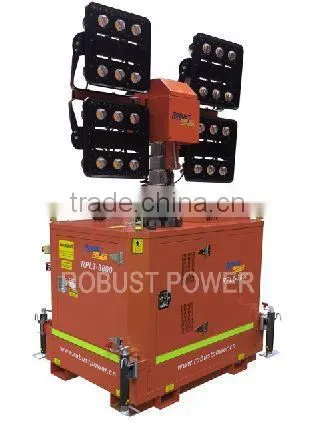

Power Generator photo-3

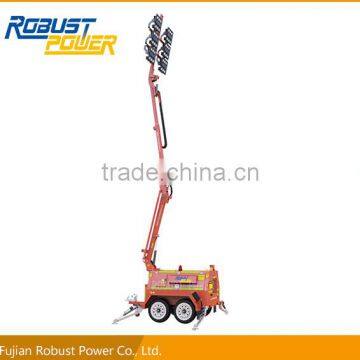

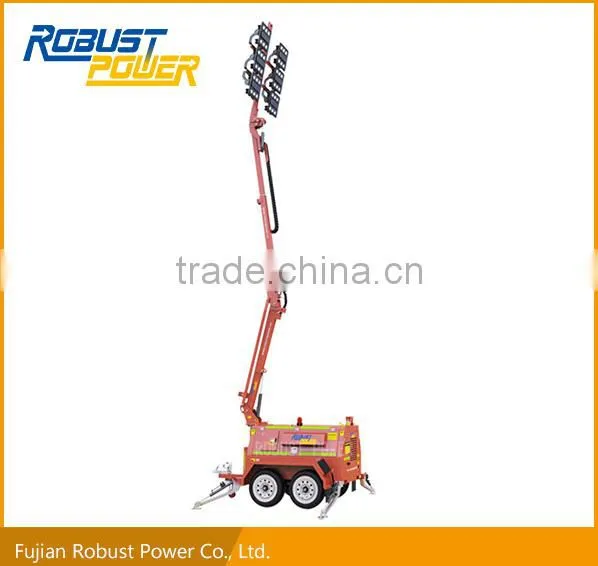

Power Generator photo-4

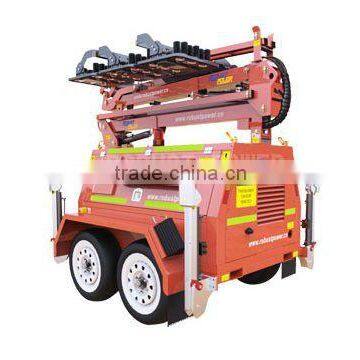

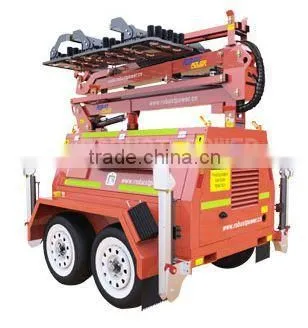

Power Generator photo-5

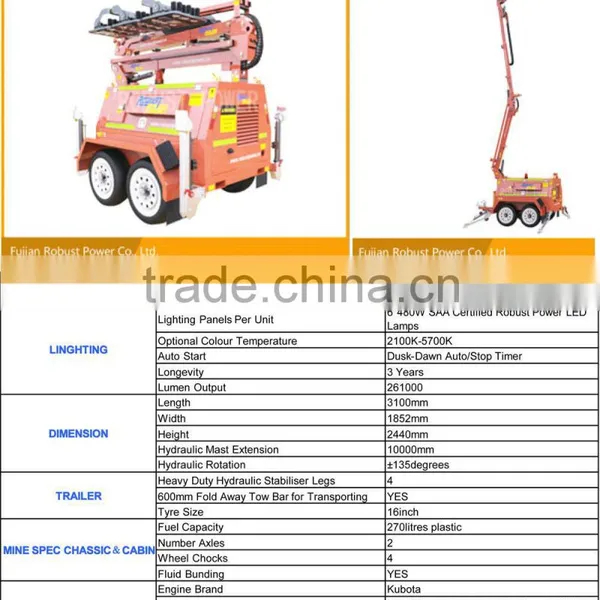

Power Generator photo-6
US$ 10,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
ROBUST POWER
Model Number:
STC
Contact Supplier Request Quote Chat Now
Fujian Robust Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB fuzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name ROBUST POWER
Model Number STC
Output Type AC Single Phase
Speed 1500/1800rpm
Frequency 50/60HZ
Rated Power 5KW~1000KW
Rated Voltage 230/400V
Rated Current Voltage

Power generator with WEIFANG engine :



Features:
1)    Engine:
a)    4 or 6 cylinders in line,nature aspiration or turbocharged, water-cooled
b)    Less oil-consumption, better reliability, easier to start ,and convenient operation and repair





2)    Alternator :

a)    ROBUST Industrial alternators meet the requirements of BSEN 60034 and VDE0530,NEMA MG1- 32,IEC34,CSA C22.2-100 AS1359. Other standards and certifications can be considered on request.

b)    SX440 AVR voltage regulation (±1%),and low frequency protection,exterior voltage adjustment.

c)    The insulation system is class 'H'.

d)    The frame is made by steel plate.All industrial standard alternator is IP21(NEMA1),also IP23 is an option.



3)   Controller:

a)    Standard instrumental control panel.

b)    Robust-T210 digital controller with AMF is optional.



Specifications 400/230V  50HZ  3PH  [1] Engine Specifications Alternator Model Open Frame Silent Type
Genset Model Standby output (kva/kw) Rated output (kva/kw) Cons 100%(L/h) Engine Model Cyl. Gov.[2] Asp.[3] ROBUST Dimension            L ×W×H(mm) Weight[4]                                 (kg) Dimension            L ×W×H(mm) Weight[4]                                 (kg)
WEIFANG
RW-25 28/22 25/20 6.1 495D 4L M NA WTW-184F 1850×800×1330   930 2200×900×1200 1050
RW-30 33/26 30/24 7.3 K4100D 4L M NA  WTW-184G 1850×800×1330   960 2200×900×1200 1230
RW-38 41/33 38/30 12.6 K4100ZD 4L M TC WTW-184H 1850×800×1330   980 2200×900×1200 1280
RW-63 69/55 63/50 13.6 R4105IZD 4L M TC WTW-224E 2000×800×1450 1440 2560×1100×1490 1580
RW-80 88/70 80/64 16.9 R6105ZD 6L M TC WTW-224F 2500×800×1600 1720 3100×1100×1640 1850
RW-94 103/83 94/75 19.8 R6105ZD 6L M TC WTW-274C 2500×800×1600 1870 3100×1100×1640 1910
RW-113 124/99 113/90 23.1 R6105AZLD 6L M TCA  WTW-274DS 2600×850×1600 1980 3100×1100×1640 2100
RW-125 138/110 125/100 25.6 R6105IZLD 6L M TCI WTW-274D 2600×850×1600 2100 3100×1100×1640 2230
[1]:Also available in the following voltage:415/240V-380/220V@ 50HZ and 440/254V-220/127V-208/120V @ 60HZ
[2]:M:Mechanical speed governor.Electronic speed governor is optional.
[3]:NA:Naturally aspirated. TC:Turbocharged.  TCA:Turbocharged and air-air aftercooled  TCI:Turbocharged and inter-cooled
[4]:The weights are approximate and without fuel.
