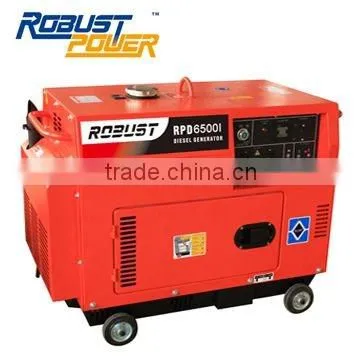

Help CenterAir-cooled Diesel GeneratorRPD6500EW
Related Products
Model : RPD5500EW
Rated Frequency (HZ): 50/60
Rated Power (kw): 2.8/3
Rated Voltage (v): 230/240
Rated Current (A): 12.2/12.5
Phase Number: Single
Power Factor (cos): 1
Welding Voltage at zero Load(DC)(V): 60-65
Rated Welding Current DC(A): 160
Welding Voltage (DC)(V): 26
Welding Load Continuous Ratio: 60%
Welding Current Adjustment Range (A): 50-180
Electrode (mm): 1.6-4.0
Rated Speed (r/min): 3000/3600
Excitation Mode: Self-excitation and constant voltage
Rectifying Mode: IGBT+three-phase rectifying bridge (PWM)
Insulation Grade: B
Pole Number: 2
Engine Model: RP186FA
Engine Type: Single cylinder, vertical, four-stroke, air-cooled
Displacement (mL): 418
Bore×Stroke(mm): 86*72
Compression ratio: 19:01
Rated Power (kw/rpm): 5.7/3000 6.3/3600
Fuel Type: 0(summer)-10(winter)-35(chill cold) diesel
Lube Oil Brand: SAE 10W30 (above cc grade)
Fuel Consumption (g/kw.h): 360
Fuel Tank Capacity (L): 15
Continuous Running Time (Hr): 6.5
Overal Dimension (mm)(L*W*H): 840×535×650
Starting System: Recoil starter or electric starter
Noise Level at Load Dba/7m: 75
