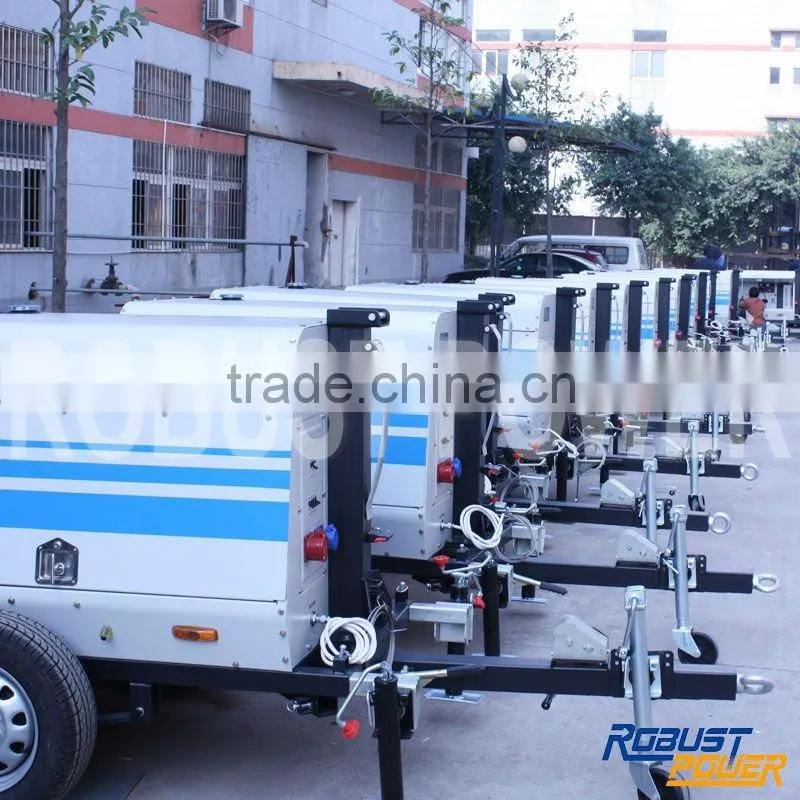

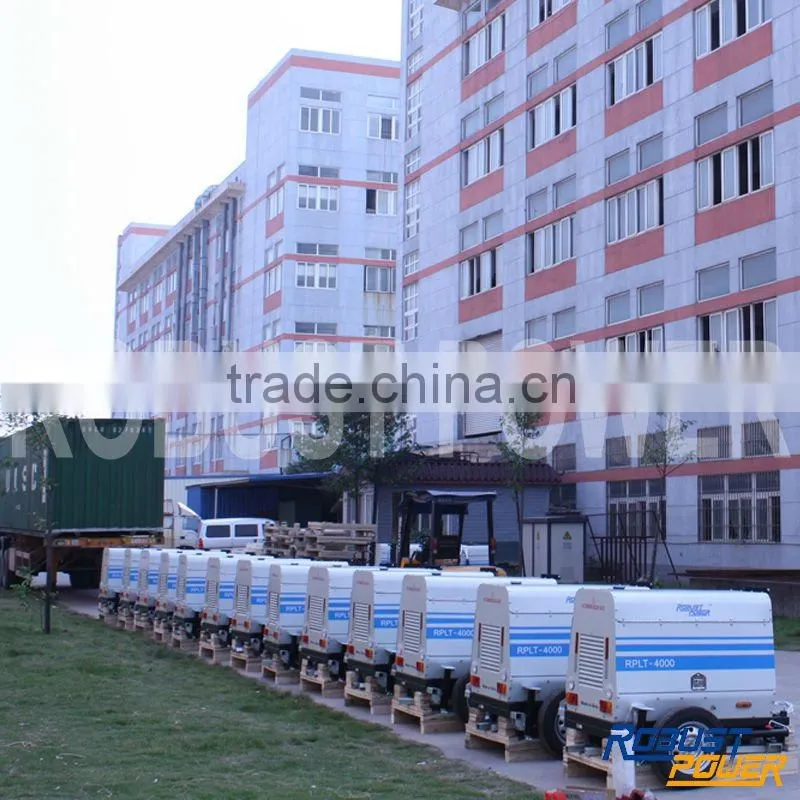

Compact Tower Light China

Name: Compact Tower Light China
Brand: ROBUST POWER
SKU: 134531135

US$ 4,000 - 5,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ROBUST POWER

Model Number:

RPLT4000

Fujian Robust Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou China.

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ROBUST POWER

Model Number RPLT4000

Output Type AC Three Phase

Speed 50Hz/3000 60Hz/3600

Frequency 50Hz 60Hz

Rated Power 4*1000W

Rated Voltage 120,220,230,240

Rated Current 25A

Compact tower light Technical Specifications:

Mast
Maximum extention of mast	9m
Elevation	Mechanical / Electric
Raising/lowing mast	Winch(Mechanical) / Button(Electric)
Stages	3
Turning angle	360 degrees non-continuous
Lamp
Total power of lamps	4×1000W
Type of lamp	Metal halide lamp
Light capacity	4×110000 lumen
Voltage	120, 220, 230, 240
Frequency	50Hz / 60Hz
Lifetime of lamp	2000 hours
Working temperature	≤85
Connection protection index	IP54
Light Coverage	5 to 7 acres
Characteristics of the generator
Model	RPD6500I
Rated power	50Hz 4.2kW 60Hz 5.0kW
Standby power	50Hz 4.5kW 60Hz 5.5kW
Engine model	RP186FA Diesel
Engine speed	50Hz 1500rpm 60Hz 1800rpm
Engine type	Single cylinder, 4-stroke, air-cooled
Starting system	Electric
Alternator	2-pole, brushless
Fuel tank capacity	100L
Prime fuel consumption at 100% load	1.65L/h
Working hours	60
Control system	Digital control panel
Power Outlets	2
Trailer
Tow hitch	Ring or ball hitch
Stabilier Supports	5 × Manual
Tire Size	65cm
Anti-wind capacity	≤10
Brakes	Manual
Packing Dimension & Weight
Retracted Dimension	4400 × 1200 × 1930
Mast packing	3800mm×350mm×350mm
Generator set packing	1550mm×1150mm×1610mm
1000WLamps packing	4 pcs 520mm×520mm×370mm
Container load (20FT / 40FT)	6 / 12 (At least)
Net weight	680kg
Other Options:
6m mast
Spare tire/ Outrigger
Robust power is flexible enough to meet your custom product needs
Please contact Robust Power for more information on options available.

All feature and specifications are subject to change without notice.
