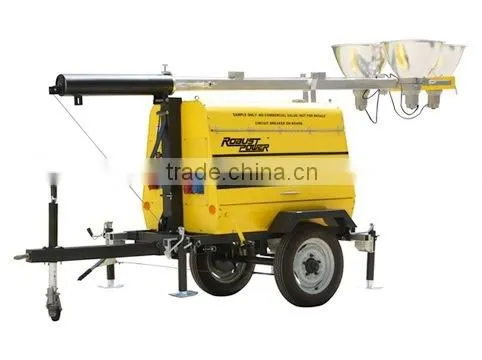

9m Mast Mobile Light Tower

Name: 9m Mast Mobile Light Tower
Brand: ROBUST POWER
SKU: 134531077
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

ROBUST POWER

Model Number:

RPLT-4000

Fujian Robust Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name ROBUST POWER

Model Number RPLT-4000

Output Type AC Single Phase

Speed 3000RPM

Frequency 50HZ

Rated Power 4.2KW

Rated Voltage 120/220/230/240V

Specifications

mobile light tower
9m mast
4*1000W metal halide light
Mounted on trailer,ring or ball hitch
Fuel tank capacity:100L

Mobile light tower RPLT-4000 Technical Specifications
Mast
Maximum extention of mast	9m
Elevation	Mechanical/ Electric
Raising/lowing mast	Winch(Mechanical)/ Button(Electric)
Stages	3
Turning angle	358 degrees non continuous

Lamp
Total power of lamps	4*1000W
Type of lamp	Metal halide lamp
Light capacity	4*88000 lumen
Voltage	120,220,230,240
Frequency	50HZ / 60HZ
Lifetime of lamp	5000 hours
Working temperature	≤85°C
Connection protection index	IP54
Light Coverage	5-7 acres
Characteristics of the generator
Model	RD6500I
Rated power	50HZ 4.2KW 60HZ 5.0KW
Standby power	50HZ 4.5KW 60HZ 5.5KW
Engine model	RP186FA Diesel
Engine speed	50HZ 3000RPM 60HZ 3600RPM
Engine type	Single cylinder,4-stroke,air-cooled
Starting system	Electric
Alternator	2-pole, brushless
Fuel tank capacity	100L
Prime fuel consumption at 100% load 1.85L/h	1.85L/H
Maximum working hours	60
Control system	Digital control panel
Power Outlets	2

Trailer
Tow hitch	Ring or ball hitch
Stabilier Supports	5*Manual
Tire Size	52cm
Anti-wind Capacity	≤10
Brakes	Manual

Packing Dimensions & Weight
Retracted Dimension	4400mm1350mm1930mm
Net weight	680kg
