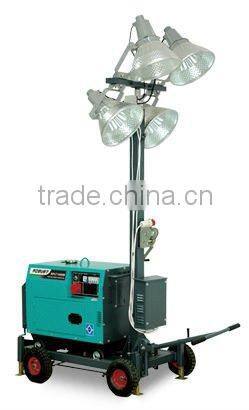

RPLT1600B Light Tower

Name: RPLT1600B Light Tower
Brand: RP186FA Diesel
SKU: 134530783
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

RP186FA Diesel

Model Number:

RPLT1600B

Fujian Robust Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Fuzhou China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name RP186FA Diesel

Model Number RPLT1600B

Output Type AC Single Phase

Speed 50HZ 3000RPM 60HZ 3600RPM

Frequency 50HZ/60HZ

Rated Power 4.2KW/50HZ 5.0/60HZ

Rated Voltage 120V 220V 230V 240V

Specifications

Mast:4.8m(Mechanical/e)/Winch/358 degrees
Metal halide lamp/4x400Wt/220V
Ring or ball hitch

Model RPLT1600B
Technical Specifications
Mast
Maximum extention of mast	4.8m
Elevation	Manual
Raising/lowing mast	Winch(Mechanical)
Stages	2
Turning angle	358 degrees non-continuous
Lamp
Total power of lamps	4×400W
Type of lamp	Metal halide lamp
Light capacity	4×25000 lumen
Frequency	50Hz
Working temperature	≤85Degrees Celsius
Connection Protection index	IP54
Characteristics of the generator
Model	RPD6500I(Made in China)
Generator set Prime power	50Hz 4.2kW
Engine model	RP186FA Diesel
Engine speed	50Hz 3000rpm
Engine type	1 cylinder,4-stroke,Air-cooled
Engine Aspiration	Natural
Alternator Type	2-pole, brushless
Fuel tank capacity	15L
Prime fuel consumption at 100% load	1.85L/h
Working hours	8
Control system	Mechanical control panel
Power Outlets	2
Trailer
Stabilier Supports	4 × Manual
Anti-wind capacity	≤6
Brakes	Manual
Packing Dimension & Weight
Retracted Dimension	1300mm × 840mm × 2600mm
Container load (20/40FT)	12/24(At least)
Net weight	270kg
