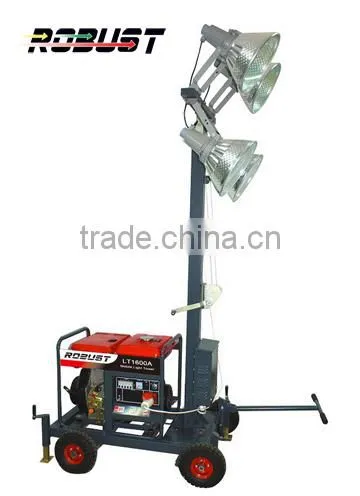

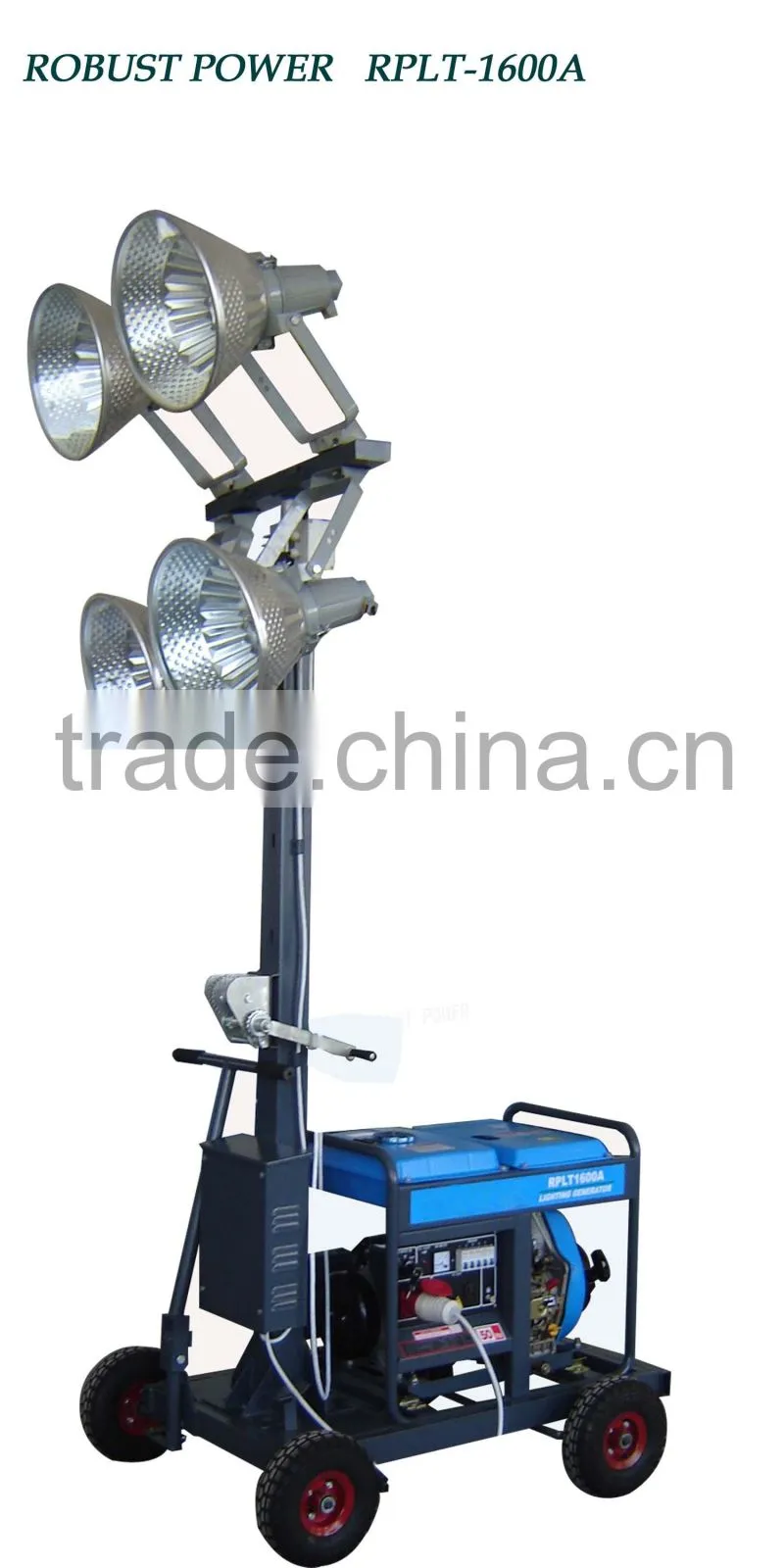

Open Frame Movable Portable Lighting Tower
| Technical Specifications | |
| Mast | |
| Maximum extention of mast | 4.8m |
| Elevation | Mechanical/Electric |
| Raising/lowing mast | Winch(Mechanical)/Button(Electric) |
| Stages | 2 |
| Turning angle | 358 degrees non-continuous |
| Lamp | |
| Total power of lamps | 4×400W |
| Type of lamp | Metal halide lamp |
| Light capacity | 4×25000 lumen |
| Voltage | 120V,220V,230V,240V |
| Frequency | 50Hz/60Hz |
| Lifetime of lamp | 2000hours |
| Working temperature | ≤85°C |
| Connection Protection index | IP54 |
| Characteristics of the generator | |
| Model | RPD5500E(Made in China) |
| Generator set Prime power | 50Hz 4.5kW 60Hz 5.0kW |
| Standby power | 50Hz 5.0kW 60Hz 5.5kW |
| Engine model | RP186FA Diesel |
| Engine speed | 50Hz 3000rpm 60Hz 3600rpm |
| Engine type | Single cylinder,4-stroke,Air-cooled |
| Starting system | Recoil & Electric |
| Alternator Type | 2-pole, brushless |
| Fuel tank capacity | 15L |
| Prime fuel consumption at 100% load | 1.5L/h |
| Working hours | 8 |
| Control system | Digital control panel |
| Power Outlets | 2 |
| Trailer | |
| Stabilier Supports | 4 × Manual |
| Tire Size | 25cm |
| Anti-wind capacity | ≤6 |
| Brakes | Manual |
| Packing Dimension & Weight | |
| Retracted Dimension | 1300mm × 840mm × 2600mm |
| Container load (20/40FT) | 12/24(At least) |
| Net weight | 250kg |
