Portable Light Tower RPLT6800

Name: Portable Light Tower RPLT6800
Brand: Robust Power
SKU: 134530603
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Robust Power

Model Number:

RPLT6800

Fujian Robust Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FUZHOU

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Robust Power

Model Number RPLT6800

Output Type AC Single Phase

Speed 1500/1800RPM

Frequency 50/60Hz

Rated Power 6.7/8.4KW

Rated Voltage 230V

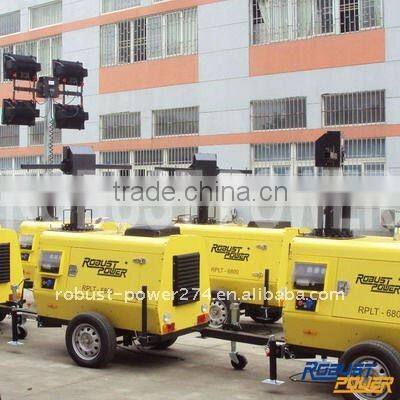

Portable light tower RPLT6800

MOBILE LIGHT TOWER SERIES
Diesel Light Tower Powered by Japan Kubota Engine
Technical specifications
Mast
Maximum height of mast	8m
Elevation	Hydraulic
Raising/lowering mast	Button
Turning angle	358 degrees
Stage	6
Lamps
Total power of lamps	4x1,000Watts
Type of lamp	Metal halide
Light capacity	4x88,000lumen
Voltages	230Volts
Frequency	50Hz
Lifetime of lamp	5,000hours
Working temperature	≤85°C
Protection grade	IP54
Characteristics of generator set
Model	RD-10K
Generator set Prime power	6.7kw/50Hz 8.4kw/60Hz
Engine model	Japan Kubota D1105-BG
Intake system	Natural Aspiration
Type	vertical 4-cycle liquid cooled
No. of cylinders	3
Standby power	9.5kw/50Hz;11.5kw/60hz
Alternator model	STAMFORD PI 044F
Type	Brushless ,self-excitation
Voltage regulation	Automatic
Alternator Prime power	6.7kw/50Hz 8.4kw/60Hz
Voltages	230volts
Frequency	50Hz
Fuel tank capacity	100L
Fuel consumption at 100% load	2.0L/H
Max continuous running time	50Hours
Trailer Type
Road trailer with hitch ball
Dimension (LXWXH)
Storage	2650x1300x2450
Working	2650x2400x8000
