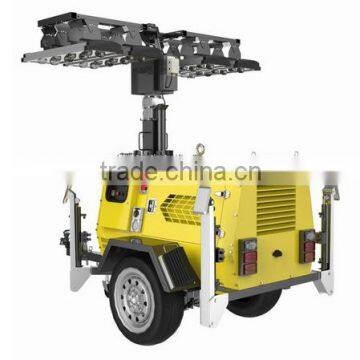

Help Center8~9m Diesel Mobile LED Construction Lighting Tower
Related Products
Model RPLT6800K
Technical Specifications
Mast
Maximum of mast 8~9m
Elevation Hydraulic
Raising/lowing mast Button (Hydraulic/Electric)
Stages 6
Turning angle 358 degrees non-continuous
Lamp
Total power of lamps 4×400/450W
Type of lamp LED lights
Light capacity 4×30,400 lumen
Voltage 110V/220V
Frequency 50Hz/60HZ
Lifetime of lamp 20000hours
Working temperature below 85 degrees
Connection Protection index IP65~69
Characteristics of the generator
Model RD-5K
Generator set Prime power 50Hz 4.8kW
Engine model Japan KUBOTA D905-BG or other engines
Intake system Natural Aspiration
Engine type Vertical 4-cylinder, liquid cooled Diesel
No. of cylinders 3
Standby power for 50HZ(1500rpm) 7.4KW
Alternator SF140C
Alternator Type Brushless, self-excitation
Voltage regulation Automatic
Alternator Prime power (pf:0.8) 6.0 KW/50Hz
Voltage 110V/220V
Frequency 50HZ
Fuel tank capacity 100L
Prime fuel consumption at 100% load 1.2L/h
Working hours 67-83hours
Leaf spring with drum brakes
70 dB (A) at 7 m
1 PCS (230 / 240, 15A )
Trailer
Road trailer with hitch Ball or O ring hitch
Packing Dimension & Weight
Storage 2650mm × 1300mm × 2450mm
Working 2650mm ×2400mm ×8013mm
