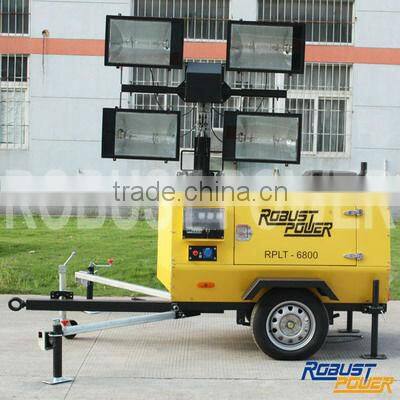

6KVA 6KVA Kubota Engine Mobile Light Tower RPLT6800

Name: 6KVA 6KVA Kubota Engine Mobile Light Tower RPLT6800
Brand: Robust Power
SKU: 134530401
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Robust Power

Model Number:

RPLT6800

Fujian Robust Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FUZHOU

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Robust Power

Model Number RPLT6800

Specifications

generator Lighting Tower-RPLT6800
1.4*1000W metal halid lamp
2.Water-cooled genset
3.Kubota engine
4.Hydraulic mast

disel generator powered Lighting Tower-RPLT6800

Technical specifications are followed:

MOBILE LIGHT TOWER SERIES
Diesel Light Tower Powered by Japan Kubota Engine
Technical specifications
Mast
Maximum height of mast	8m
Elevation	Hydraulic
Raising/lowering mast	Button(Hydraulic)
Turning angle	358 degrees
Stage	6
Lamps
Total power of lamps	4x1,000Watts
Type of lamp	Metal halide lamp
Light capacity	4x88,000lumen
Voltages	230 Volts
Frequency	50Hz / 60Hz
Lifetime of lamp	5,000hours
Working temperature	≤85°C
Protection grade	IP54
Characteristics of generator set
Model	RD-10K
Generator set Prime power	6.7kw/50Hz 8.4kw/60Hz
Engine model	Japan Kubota D1105-BG
Intake system	Natural Aspiration
Type	vertical 4-cycle liquid cooled
No. of cylinders	3
Standby power	9.5kw/50Hz;11.5kw/60hz
Alternator model	STAMFORD PI 044F
Type	Brushless ,self-excitation
Voltage regulation	Automatic
Alternator Prime power	6.7kw/50Hz 8.4kw/60Hz
Voltages	230volts
Frequency	50Hz
Fuel tank capacity	100L
Fuel consumption at 100% load	2.0L/H
Max continuous running time	50Hours
Trailer Type
Road trailer with hitch ball
Dimension (LXWXH)
Retracted Dimension	4400x1350x1930
