Specifications
1. Thermoforming + stacking + counting + packing in line2. One technicist controls.
3. High quality, high capacity.
Mechanical covers an area of space
Machines take up the space is 200-500 square, the machine can be separately.
Usage: this machine can be consumed per hour (40-50 KW), the actual power consumption depends on the thickness of a plastic sheet and speed, power consumption to increase along with the sheet material to be heated more thick and increase, the faster the increase. Need to install 100 kw transformer.
Production:

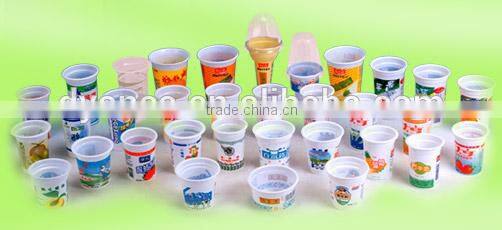

According to the size of the cup, the following is calculated separately according to the diameter of the cup size production.
Product size (mm) |
No. of each model (pcs) |
Speed (time/minute) |
20---30 |
45 |
28-35 |
30-- 40 |
36 |
28-35 |
40--50 |
30 |
28-35 |
50--60 |
20 |
28-35 |
60--70 |
16 |
28-35 |
70---80 |
14 |
28-35 |
80--90 |
12 |
28-35 |
90--100 |
10 |
28-35 |
100--110 |
10 |
28-35 |
110--120 |
4 |
28-35 |
120--150 |
4 |
20-25 |
150--200 |
3 |
15-20 |
>200 |
2 |
10 |
(This machine only need one or two workers to control, realize the full-automatic, it is modern life style machine, save worker salary, use machine to work instead of manual.)
Technical Parameter:
Parameters |
Contents |
Material |
PP,PE,PS,PVC,PET,ABS,HIPS,(degraded material) |
|
Sheet thickness |
0.3-2.0mm |
Sheet width |
540-660mm |
|
Max forming area |
650×300mm |
|
Max forming depth |
220mm |
|
Work efficiency |
≤30 strokes/min |
|
Heating rated power |
70kw |
|
Main motor power |
5.5kw/6grade |
Power supply |
380V/50Hz |
Voltage |
0.6-0.8Mpa |
Air volume required |
2500~3500L/min |
Water volume required |
40~45L/min |
Machine weight |
About 5.2T |

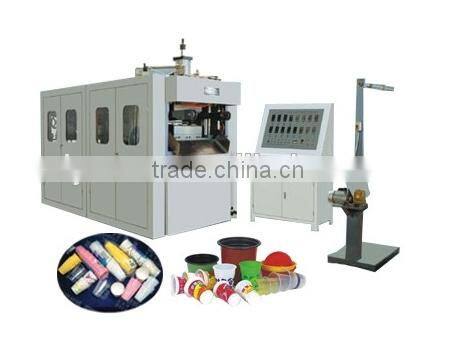

1. Full-automatic Plastic Cup Thermoforming Machine
Technical parameters
Faster than (mm/s) |
1:40 |
The cup height (mm) |
≤120 |
The cup diameter (mm) |
≤60 |
|
Capacity(pcs/hr) |
20000 |
Voltage(three phase) |
380V 50Hz |
Power(kw) |
1.5 |
Dimension(L×W×H) |
4000×1200×1200 |
Weight(kg) |
500kg |
2. Automatic cup stacking machine
