Multipurpose Hydraulic Mini Roll Baler

Specifications

Mini Roll Baler
1.Manufacturer
2.One year warranty
3.ISO,CE certification
4.Suit variety of materials.

       Multipurpose Hydraulic Mini Roll Baler





Features:

1.It is electric,need no matched power.

2.Easy to transport and storage after bundling.

3.Helper of comprehensive utilization and development of biomass energy.

4.Compression packing can greatly reduce the volume,increased density.



Application:

They are multipurpose,widely used in collecting and bundling dry and green grass,straw,wheat stalk,corn stalkreed,Cane caudate lobe and deep processing.It can also bundle waste paper,metal,cotton,cloth and so on.



The advantage of baler:

1.To increase farmers' income,the hay is easy to sell after bundling.

2.Make rational use of resources,hay can easily process feed of livestocks after bundling.

3.To prevent farmers from burning straw and bring environmental pollution.To improve the farm of degree of safety and greatly reduce the possibility of fire.



 Structure Principle:

Hydraulic baling machine including support,support with plate and the rear side baffle,support are installed on jack,Jack with a rod,piston rod right end connected to a vertical of pushing plate,Pushing plate right side are connected with pushing strip,the gap between adjacent pushing strip is board wear rope groove,bracket above right section with pressure material on board,pressure on the left side of the barrier material support it with feed port,front side baffle on the right side of the support separately on the permanent connection has the first article in side,adjacent side article in the space between the mouth for lacing,support the right end with discharge port,discharge port at the right end hinged support is door plank,door plank left side connecting door panel,the gap between adjacent article door to door wearing rope groove,former back side board, pushing plate and bottom surrounded the cavity for feed cavity,before and after side article block,pressure material on board,cavity surrounded by door and floor called crowded material cavity,door plank and support the right end permanen connection  have locking devices,and according to the needs adjust the size of the package within limits.



Technical Parameters:



Brand	Dyan
Model number	DADKH020
Capacity	10bag/hour
Weight	1.5ton
Power	11kw
Min package width	1000mm
Max package width	1100mm
Strap width	2mm
Model size	1800x750x3350mm

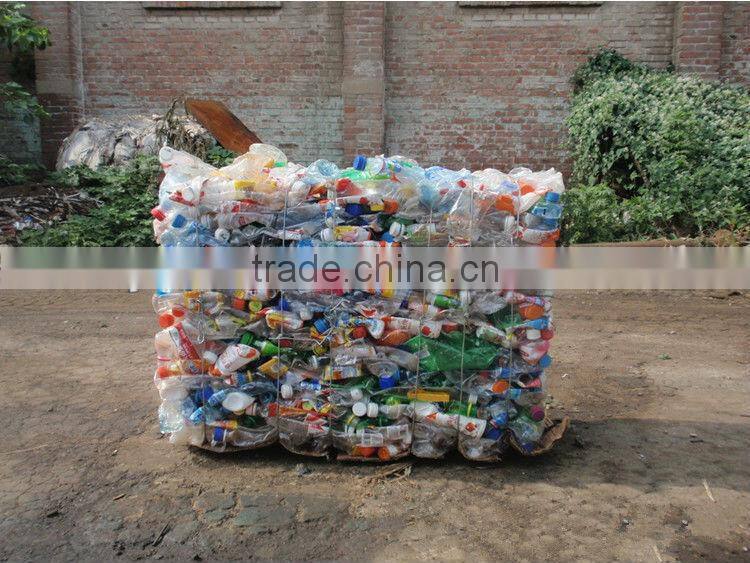

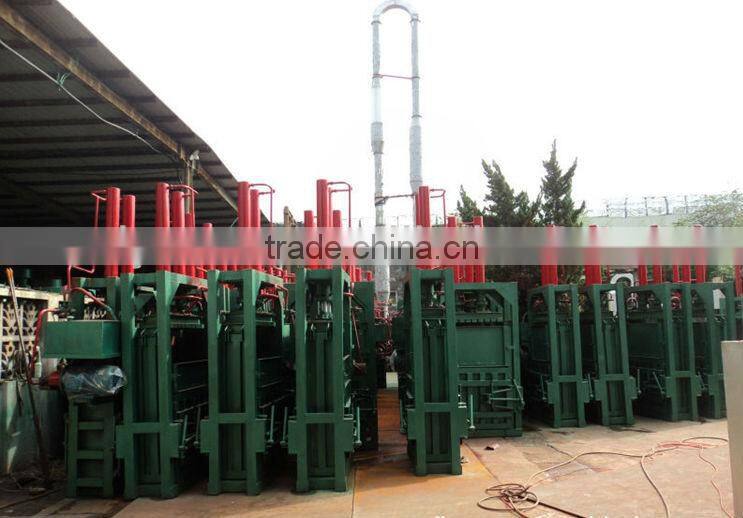

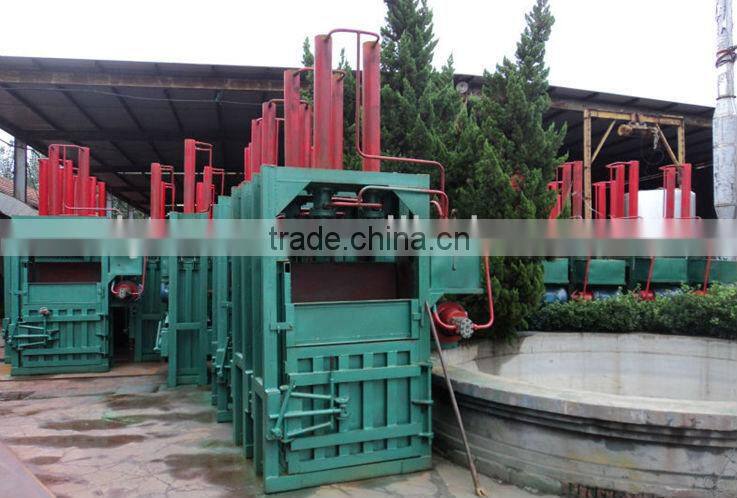

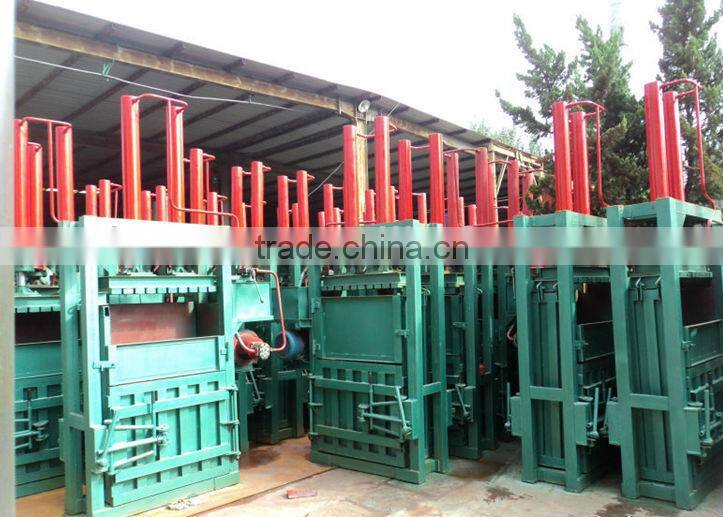

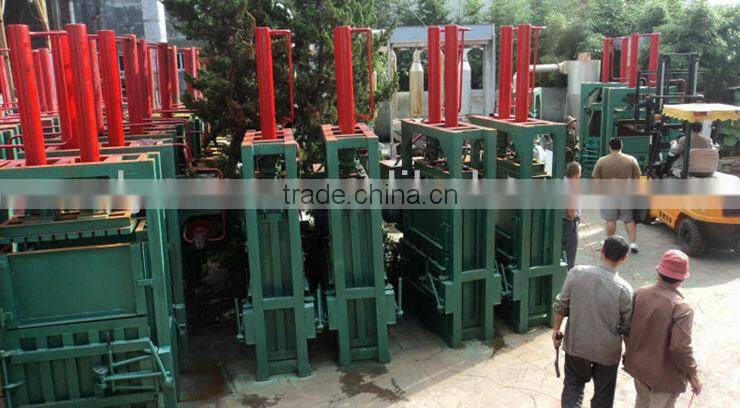

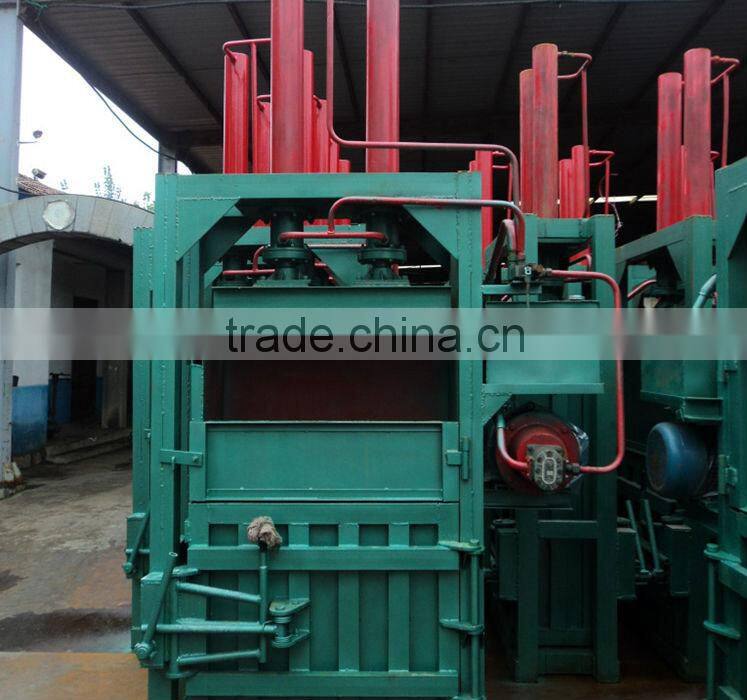

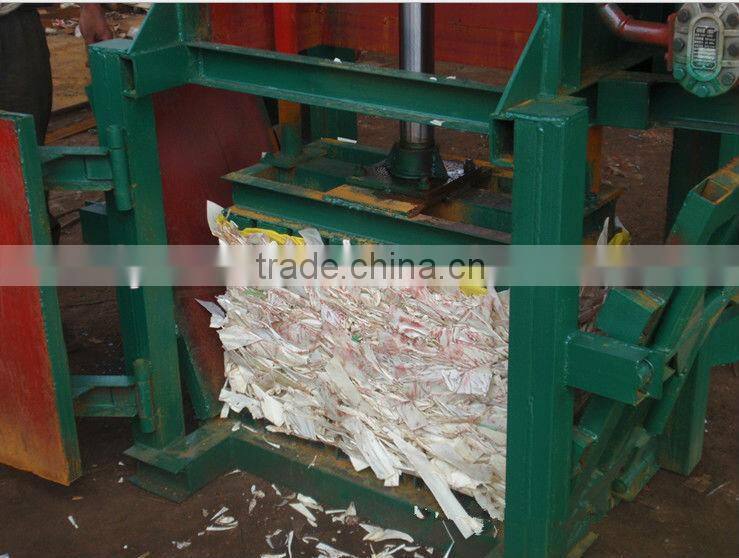

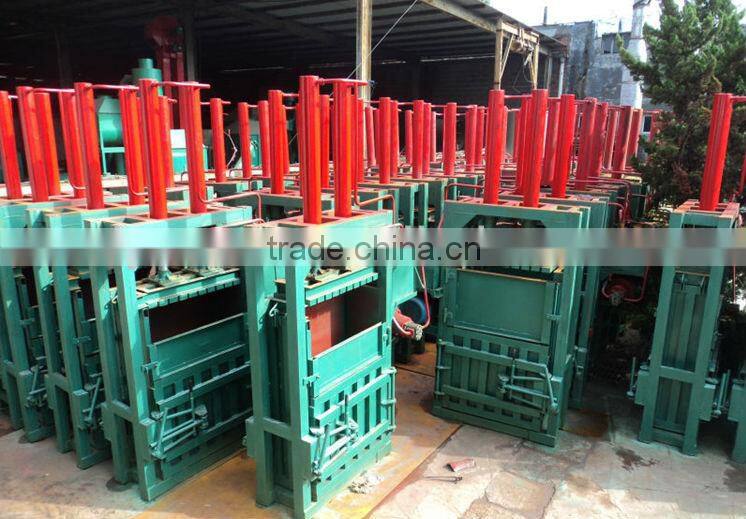

Baler picture:





Any questions,pls feel free contact me!
