Specifications
dryer:to dry biomass agricultural waste for making briquette or pellet.
pipe drying machine
high capacity
long life
single stove dryer for biomass sawdust rice husk
In the biomass briquette plant, this type of dryer is suitable for drying heat sensitive material which is light and small like sawdust, rice shell, milled stalks etc. Generally wet material can be dried in a few minutes. The whole system consists of fan blower, motor engine, fuel boiler, steel pipe, cyclone and air lock. In this system, wet material is put into the hopper by screw feeder and at the same time fuel furnace produces large volume of hot air, which is driven into steel pipes, mixed with wet sawdust and attracted through curving pipes and drying chamber by the power of fan blower. Fast moving hot air sustains and is mixed with raw material sent by spiral feeder in the suspending state through the steel pipe, moisture evaporates as the material traverses along the steel pipe and is rendered dry at the discharge end. Humid air is continuously exhausted, thus the material is dried.

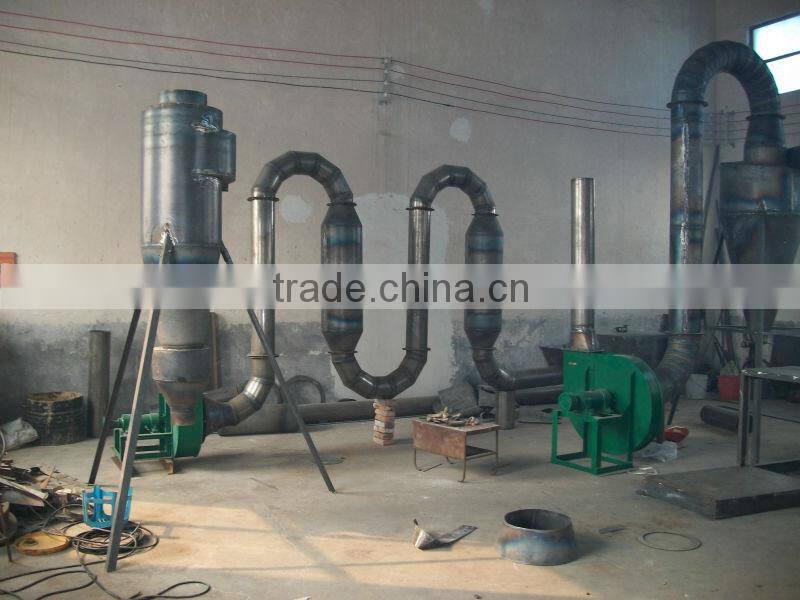

Wooking shop:
Technical parameters:
Capacity:300-500kg/h
Power:4KW
Weight: 1300kg
Dimension: 5.3m3
Moisture rate of powdery raw materials: below 30%
Moisture of final output: 8-12%
Details:
