Specifications
1. light weight 4.7 micro farad dipped tantalum capacitor supplier2.small size, light
3.lead type: dipped
4. lead time: 4
yellow dipped solid tantalum capacitor
Features of dipped tantalum capacitor:
1. small size and light
2. low leakage current and dissipation factor
3. electrical and mechanical performance is stable, long life
4. encapsulated with flame -- retardannt yellow epoxy powder marked with laser.
2. Specifications of tantalum micro farad capacitor:
1) Dipped tantalum capacitor Capacitance Range:0.1uF~330uF
2) Dipped tantalum capacitor Rated Voltage:4v~50v
4) Dipped tantalum capacitor Operating temperature:-55C~+125C
5) Dipped tantalum capacitor Capacitance tolerance: K= ± 10%, M= ± 20%
Datasheet of dipped tantalum capacitor:
Product name |
Radial tantalum capacitor |
Datasheets |
CA42 series |
Case Material |
Yellow epoxy powder |
GT Part number |
CA42 |
Capacitance |
330uF |
Tolerance |
±10%, ± 20% |
Rated Voltage |
4V DC |
Lead type |
Radial Dip,through hole |
Standard Package |
500pcs/bag or tape |
Case size |
A |
Lead space |
|
Application |
General purpose |
RoHS Compliant |
yes |
Operating Temperature |
-55°C ~+125°C |

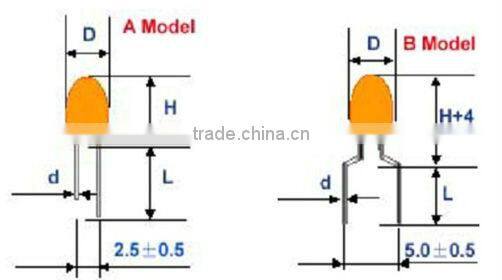

Dimensions of dipped tantalum capacitor:
Case Code |
D(max) |
H(max) |
S(±0.5mm) |
d(±0.5mm) |
A |
4.4 |
7.0 |
2.5 |
0.5 |
B |
5.0 |
7.5 |
2.5 |
0.5 |
C |
5.5 |
9.0 |
2.5 |
0.5 |
D |
6.0 |
10 |
2.5 |
0.5 |
E |
7.2 |
12 |
5.0 |
0.5 |
F |
8.5 |
12.5 |
5.0 |
0.5 |
Applications of dipped tantalum capacitor:
1.Measuring instruments, housekeeping equipments,
2.Illumination electric equipments
3.TV set, computer, instrument, meters etc. DC/PC circuit.
Why choose us:
We are the leading capacitor manufacturer in Shanghai. We are committed to the design and plan for the new energy conversion system and the development of the energy storage system. We made great efforts for this purpose. In recent years, with the new technology successfully applied in our products, the quality and the price are very competitive. More and more companies are choose to cooperate with us and our company's recognition is become more and more higher. So choose us will be your most wise decision.
