Screw Type Capacitor 2.7v 400 Farad for UPS, Solar Power

Shanghai Green Tech Co., Ltd.
Screw Type Capacitor 2.7v 400 Farad for UPS, Solar Power thumbnail-1
Screw Type Capacitor 2.7v 400 Farad for UPS, Solar Power thumbnail-2
Screw Type Capacitor 2.7v 400 Farad for UPS, Solar Power thumbnail-3
Screw Type Capacitor 2.7v 400 Farad for UPS, Solar Power photo-1

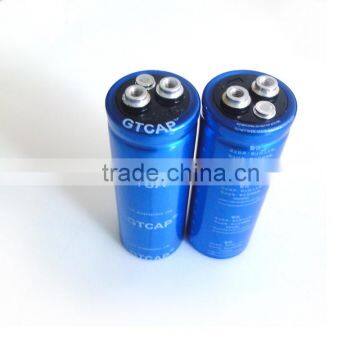

Screw Type Capacitor 2.7v 400 Farad for UPS, Solar Power photo-2
Screw Type Capacitor 2.7v 400 Farad for UPS, Solar Power photo-3
US$ 6.61 - 7.26 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
GTCap
Model Number:
SP-2R7-407Uh super capacitor
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name GTCap
Model Number SP-2R7-407Uh super capacitor
Type Super Capacitor
Application Power
Package Type Through Hole
Capacitance 400F
Rated Voltage 2.7V
Operating Temperature -40C~+70C

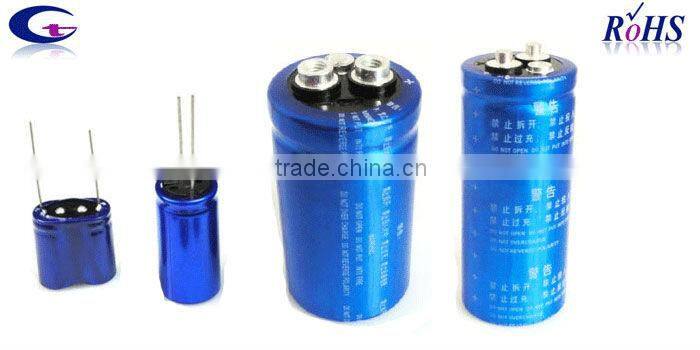

screw type capacitor 2.7v 400 farad for UPS, solar power



High Power super capacitor 2.7V 10F 50F 100F 150F 200F 360F 400F



 Super Capacitor Feature:

A) large capacitance,small size

B) long life,stable performance

C) Temperature: -40C~+70C



Super Capacitor Specification:

Super Capacitor Voltage: 2.7V

Super Capacitor Value: 10F  8F  4.7F  30F 2F 1F 400F 360F 300F  200F 100F 20F 50F



Super Capacitor 2.7V 400F Datasheet

Product name

High Power super capacitor

Datasheets

SP series

Case Material

Metal case

GT Part number

SP-2R7-407Uh

Capacitance

400F

Tolerance

10%~30%

Rated Voltage

2.7V DC

ESR

2.8 mohm

Lead type

Screw Hole

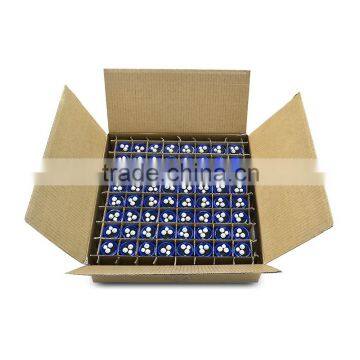

Standard Package

tray box

Case size

35.2*67mm

Lead space



Application

power

RoHS Compliant

yes

Operating Temperature

-40°C ~+70°C

Cycle life

1,000,000 times

Low low Esr Super capacitor, super capacitor battery, power supply capacitor

Radial Lead Super Capacitor Specification:

Part NO.

Voltage

Capacitance

ESR

Size

Lead Space

(V)

(F)

Max(mΩ)

ΦDxL (mm)

P (mm)

SP-2R7-106UL

2.7

10

60

12.5x34

5

SP-2R7-106UL

2.7

10

90

10x30

5

SP-2R7-126UL

2.7

12

50

12.5x34

5

SP-2R7-156UL

2.7

15

50

12.5x34

5

SP-2R7-206UL

2.7

20

50

16x34

8

SP-2R7-256UL

2.7

25

50

16x34

8

SP-2R7-306UL

2.7

30

40

16x34

8

SP-2R7-506UL

2.7

50

60

18x41

8

SP-2R7-906UL

2.7

90

25

22x45

10

SP-2R7-107UL

2.7

100

25

18x60

7

SP-2R7-107UL

2.7

100

25

22x45

10

SP-2R7-127UL

2.7

120

20

25x54

10

SP-2R7-157UL

2.7

150

20

25x54

10

SP-2R7-207UL

2.7

200

10

35x62

10

SP-2R7-307UL

2.7

300

10

35x62

10

SP-2R7-407UL

2.7

400

10

35x62

10



Other ultra capacitor, super capacitor, farad capacitor, gold capacitor:



in type super capacitor: 5.5V 0.1F, 0.22F, 0.33F, 0.47F, 1F, 1.5F, 4F

2. large capacitance super capacitor: 2.7V 1200F, 1500F, 2000F 2400F, 3000F, 5000F



Ultracapacitor Module Power System Solutions:

super capacitor module, ultracapacitor module, specially design for customers.



 Module:

Value:0.1F~500F   Votage: 16V~750V



 Feature:

Large capacitance, Large power, Low ESR, Long cycle life, Big output current, High reliability



Green energy Super Capacitor Application:



1) intelligent electrical appliace,electronic toy

2) intelligent door lock,MP3,PDA,DVD,VTR,GPS,PLC,

3) UPS,electric cooker, self-powered super flashlight,laptop

4) electronic energy meters,water meter,electricity meter, etc.

screw type capacitor 2.7v 400 farad for UPS, solar powerscrew type capacitor 2.7v 400 farad for UPS, solar power
