Help CenterMini HDMI 19P Female Smt DIP Gold-plated Connector
Related Products
-
HDMI 19P Female Smt DIP Gold-plated ConnectorNegotiableMOQ: 2000 Pieces -
HDMI 19P Female DIP Copper-covered ConnectorNegotiableMOQ: 2000 Pieces
-
Male Pin dr Connector DR-9MNegotiableMOQ: 2000 Pieces
-
Female 15 Pin dr Connector DR-15FNegotiableMOQ: 2000 Pieces
-
Pin Female dr Header Connector DR-25FNegotiableMOQ: 2000 Pieces
Specifications
1. ISO9001 and ROHS certified2. Fast the data transmiting speed
3. Customization available
4. Short lead time

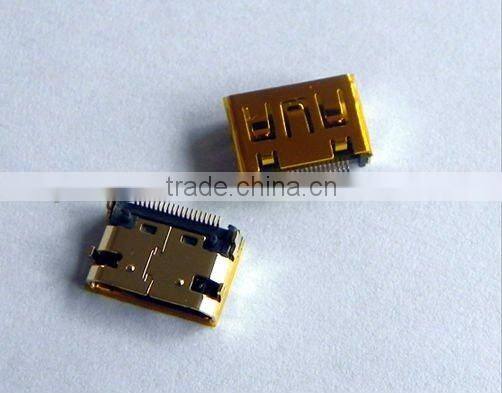

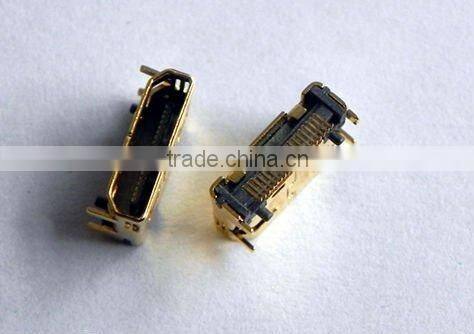

mini HDMI 19P female smt DIP gold-plated connector
Quick Details
Place of Origin: Guangdong China (Mainland) |
Brand Name: XF |
Model Number: hdmi 19p connector |
Type: HDMI |
MOQ: 2000 |
Gender: Female |
Function: SMT |
Pin Number: 19 pin |
Plated: gold |
Fabrication Process: stamping |
Type: terminal with rubber core |
Shell: Thermoplastic ,UL 94V-0 |
Package &Delivery
Packaging Detail: |
1.50 pieces in a plastic pipe and 50 pipes in a carton. 2.1500 pieces in a roll of tube |
Delivery Detail: |
7 days after payment |
Specification
Working Temperature |
-40°C ~+70°C |
Rated Load |
DC 48V 0.2A |
Contact resistance |
≤50mΩ |
Insulation resistance |
≥100MΩ |
Withstand voltage |
AC 500V (50Hz)/min |
Insertion and extraction force |
5~30N |
Electrical Life |
5,000 cycles Min |
Mechanical Life |
10,000 cycles Min |
Applications | |
Our products are suitable for varies types of mobile phone, computer, digital camera, data line, U disk and so on. | |
Features
1. A Type/B Type/Mini Type ect.kinds of connector design
2. Flexibility design for terminal interface to ensure nice contact and prolong the operating force
3. The place that the terminal contacting is gold-plated, it is to fast the data transmitting speed
4. The place that terminal soldering is nickel-plated, it is to make the soldering better
How to get price for this mini HDMI 19P DIP?
1. E-mail us with the type you are interested in.
2. We will reply to you with price in one working day.
Ordering Notes
1. You can order single items as sample
2.Shipping worldwide.
