Specifications
Micro USB 3.0 SMA Female,0.45mm feet long,plain end1.ISO9001 and ROHS certified
2. Fast the data transmiting speed

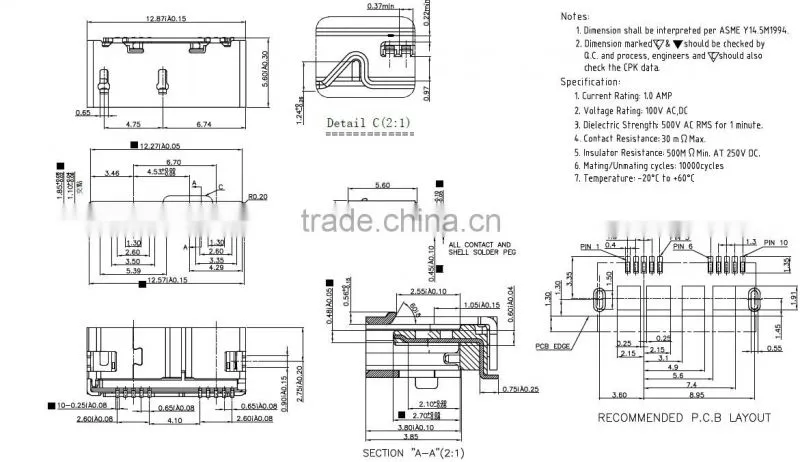

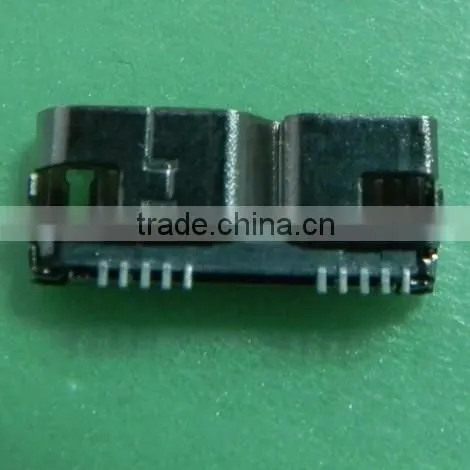

Micro USB 3.0 SMA Female,0.45mm feet long,plain end
Specification
Working Temperature |
-20 °C ~+60 °C |
Rated Load |
DC 48V 1.0A |
Contact resistance |
≤30 mΩ |
Insulation resistance |
≥ 500 MΩ |
Withstand voltage |
AC 500V (50Hz)/min |
Insertion and extraction force |
5~30N |
Electrical Life |
10,000 cycles Min |
Mechanical Life |
10,000 cycles Min |
Applications | |
Our products are suitable for varies types of mobile phone, computer, digital camera, data line, U disk and so on. | |
Features
1. A Type/B Type/Mini Type ect.kinds of connector design
2. Flexibility design for terminal interface to ensure nice contact and prolong the operating force
3. The place that the terminal contacting is gold-plated, it is to fast the data transmitting speed
4. The place that terminal soldering is nickel-plated, it is to make the soldering better
