Specifications
Micro USB 5 PIN dip type,insert0.80mm1. ISO9001 and ROHS certified
2. Fast the data transmiting speed
3. Customization avail

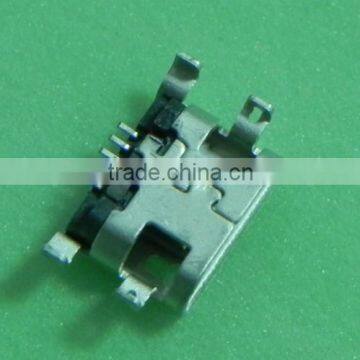

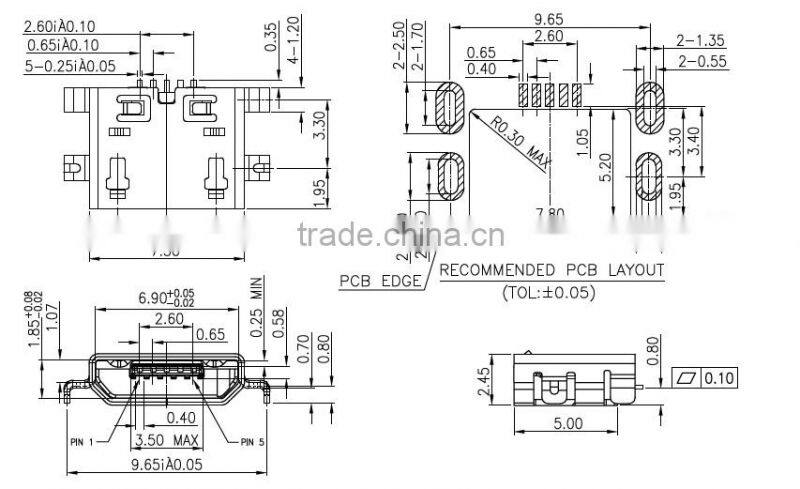

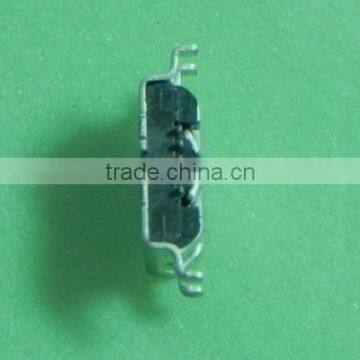

Micro USB 5 PIN dip type,insert0.80mm
Specification
Working Temperature | -20°C ~+65°C |
Rated Load | DC 100V 1.0A |
Contact resistance | ≤50mΩ |
Insulation resistance | ≥100MΩ |
Withstand voltage | AC 500V (50Hz)/min |
Insertion and extraction force | 8~35N |
Electrical Life | 5,000 cycles Min |
Mechanical Life | 10,000 cycles Min |
Applications | |
Our products are suitable for varies types of mobile phone, computer, digital camera, data line, U disk and so on. | |
Features
1. A Type/B Type/Mini Type ect.kinds of connector design
2. Flexibility design for terminal interface to ensure nice contact and prolong the operating force
3. The place that the terminal contacting is gold-plated, it is to fast the data transmitting speed
4. The place that terminal soldering is nickel-plated, it is to make the soldering better
