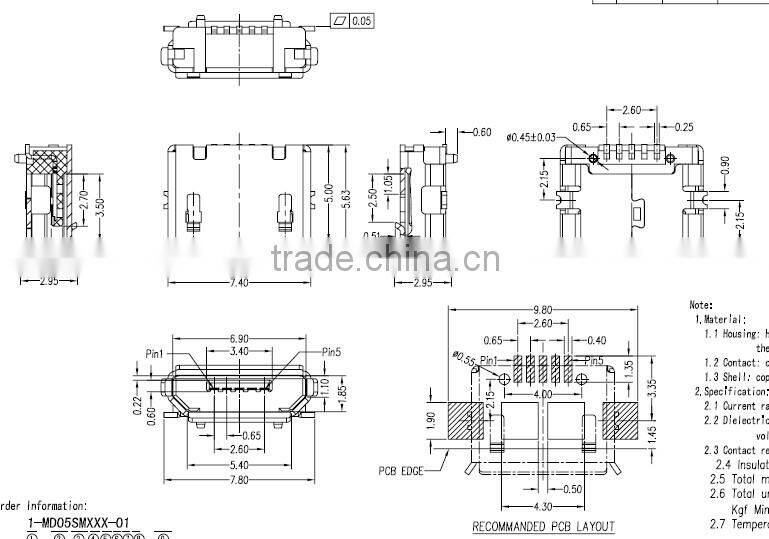

Micro USB 5P B TYPE;SMD;white;female

Micro USB 5P B TYPE;SMD;white;female photo-1

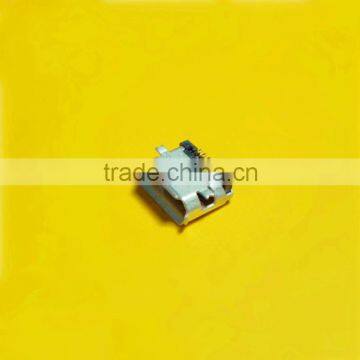

Micro USB 5P B TYPE;SMD;white;female photo-2

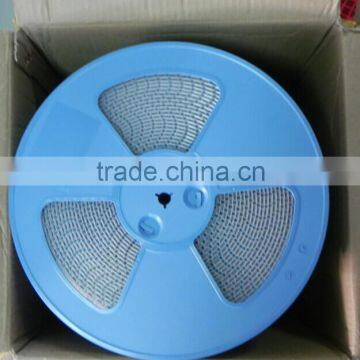

Micro USB 5P B TYPE;SMD;white;female photo-3

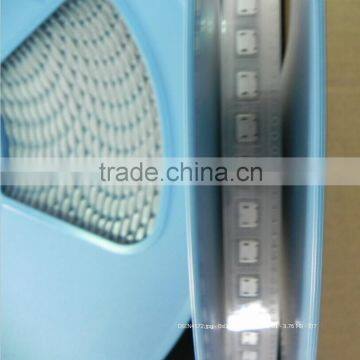

Micro USB 5P B TYPE;SMD;white;female photo-4
Negotiable MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
XF
Model Number:
Micro usb 5P
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name XF
Model Number Micro usb 5P

Specifications

Micro USB 5 pin B Type,SMD;Female
1. ISO9001 and ROHS certified
2. Fast the data transmiting speed
3.Customization

Micro USB 5 pin B Type,SMD

Specification

Working Temperature

-30°C ~+80°C

Rated Load

1.0A

Contact resistance

≤50mΩ

Insulation resistance

≥100MΩ

Withstand voltage

AC 500V (50Hz)/min

Insertion and extraction force

1.0~3.57N

Electrical Life

1,000  cycles Min

Mechanical Life

1,000 cycles Min

Applications

Our products are suitable for varies types of mobile phone, computer, digital camera, data line, U disk and so on.
