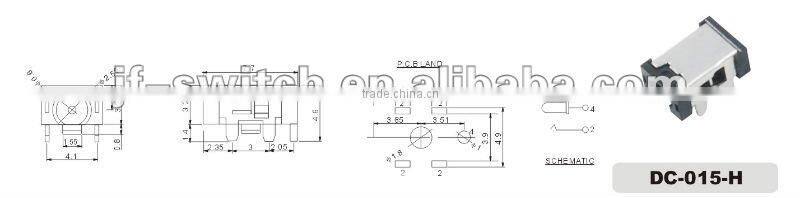

pcb 3.5mm dc jack connector dc-015-h for SMT,mini dc jack connector socket,FEMALE JACK CONNECTOR

Specifications

1 ISO 9001 ,SGS report, ROHS compliant
2 many sizes as per customer 's request
3 Manufacturers
4 inventory large

hundreds of types, decades of manufacturing experience, rapid delivery, high quality at low price

Specification of DC Power Jack series :

Product Name	dc power jack 015-H
Type	DC POWER SWITCH
Temperature	-25°C--+80°C
Rated Load	DC 50V 0.5A
Contact Resistance	≤0.03Ω
Insulation resistance	≥100mΩ
Withstand Voltage	AC 500V(50Hz)/min
Insertion and Extraction Force	320N
Life	5000 times
ambient humidity used	85%RH



Application of  DC Power Jack series:

 Widely apply to:

1.Audio Products:MP3,MP4,DVD. Audio;

2.Digital Products: digital camera, digital video and so on;
3.Remote Control: the remote control of automobile domestic security products;
4.Communication Products: mobile phone, vehicle-mounted phone, telephone set, building equipment, PDA and so on;



Stability & Durability:

 1.Jack are not affected by temperature variations

 2.Consistent performance regardless of the environment

 3.Rolled acme threads of the inner screw



 4.Motor protected with a 20 amp fuse



Services:

 1.Size,color,materials and plating can be variable according to customer definition.

2..Consulting price on alitalk must reply  ASAP in working days.

3.We can provide few as samples
