Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Original High Quality SP116 Solar Pump Station (SP116 Pump Station)

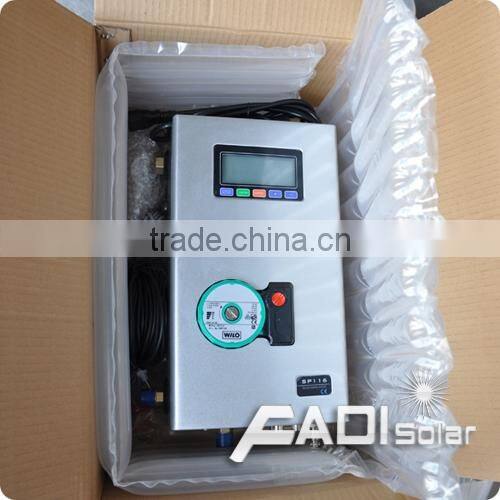

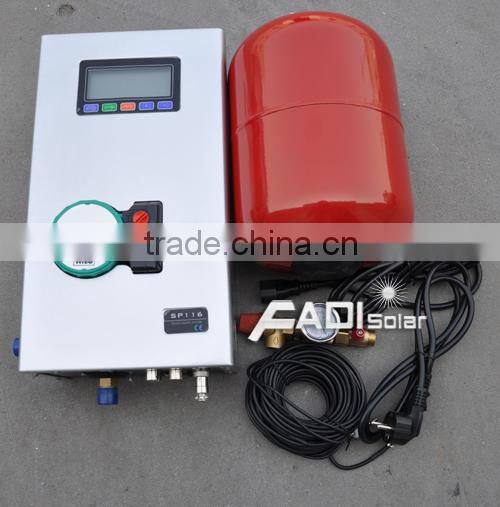

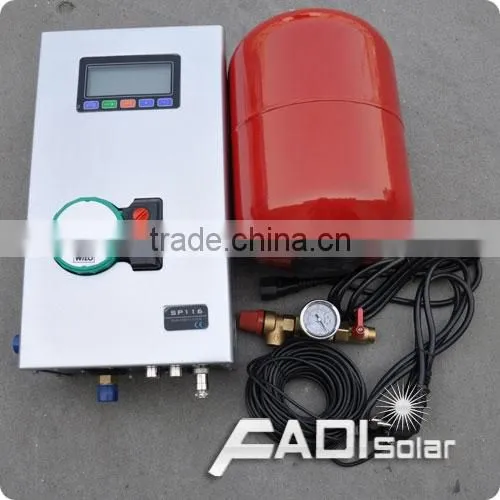

Original High Quality SP116 Solar Pump Station (SP116 Pump Station)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
System Pump Station SP106,FADI,OEM
Model Number:
FD-SP106
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai Sea-port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Original High Quality SR882 ControllerNegotiableMOQ: 1 Set -
Original High Quality SR881 Pump Station (SR881 Pump Station)NegotiableMOQ: 1 Set
-
Original High Quality SR961S Pump StationNegotiableMOQ: 1 Set
-
FD-M7 System Controller For Compact Non-pressuirrized Solar Water HeaterNegotiableMOQ: 1 Piece
-
High Quality Selector Valve for Solar Water Heater (Brass DN20)NegotiableMOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
System Pump Station SP106,FADI,OEM
Model Number
FD-SP106
Theory
Electromagnetic Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, Electricity
Pressure
Other, High Pressure, Pressurized
Specifications
SP116Competitive price
.CE,ISO9001
.5-15 years warranty
.24hours service
SP116 pump station details:
Model:FD-SP116
|
SP116 pump station main technical data:
1. Dimension: 385×220×135mm
2. Input voltage: 200V~240V AC or 100V~120V AC
3. Power: ≤3W
4. Accuracy of temperature measuring: ±1°C
5. Range of temperature measuring: PT1000 : 0~199°C NTC10K: 0~99°C
6. Input signals:
1 x PT1000 sensor temperature probe ≤500°C, silicon cable ≤280°C;
3 x NTC10K sensor temperature probe≤135°C, PVC cable ≤105°C
7. Output signals:
1 x Auxiliary heating output (Max. load current: 12A)
2 x Relay output (Max. load current: 1.5A)
8. System design pressure: 1 MPa
9. Safety valve respond pressure: 0.6 MPa
10. WILO pump model: RS15/6
11. Screw coupling: 1/2"
12. Pipeline Material: Brass
13. Secondary display screen (For selection)
14. Range of environment temperature: -10~50°C
15. Water protection grade: IP40
SP116 controller main functions:
1. Time display
2. Temperature difference circulation
3. Tank overheating protection
4. Emergent stop of system overheating
5. Frost protection of pipeline and collector
6. Three periods of time adjustable on pipeline circulation
7. Three periods of time adjustable on auxiliary heating
8. Holiday function
9. Three speed levels on circulation pump
10. Display flow rate
11. Display system pressure
| |
