Ss304 Flange Electric Replace Idle Control Valve With Positioner
US$ 140 - 140
MOQ: 1 Unit
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Needle
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Tianjin China any ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Demand Product Motor 12v Control Water Valve With TimerUS$ 130 - 130MOQ: 1 Set -
Online Shop China Hydraulic Yamatake Control ValveUS$ 150 - 150MOQ: 1 Set
-
Pov High Demand 12v dc Mini Motors Electric Window Actuator Control ValveUS$ 1 - 1MOQ: 1 Set
-
AC380V Flange Ss316 Gas Control Valve With ElectricUS$ 1 - 1MOQ: 1 Set
-
DN100 PTFE Linear Electric With Handle Control Valve for Water PN16US$ 120 - 120MOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Needle
Pressure
Medium Pressure
Power
Pneumatic
Material
Other, Casting, WCB, 304, 316, 316L
Temperature of Media
Medium Temperature
Media
Gas
Port Size
Standard
Place of Origin
Shanghai, China
Model Number
motorized regulating valve
Brand Name
POV
Application
General

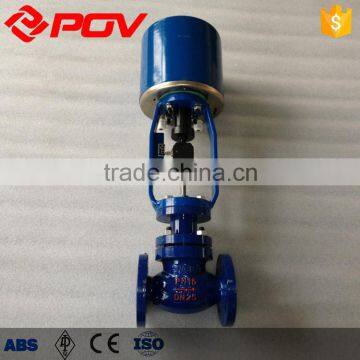

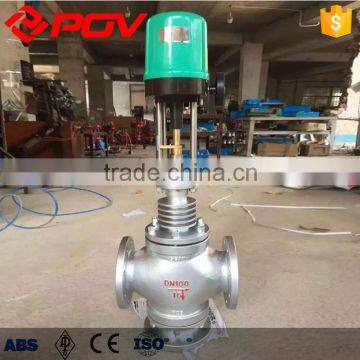

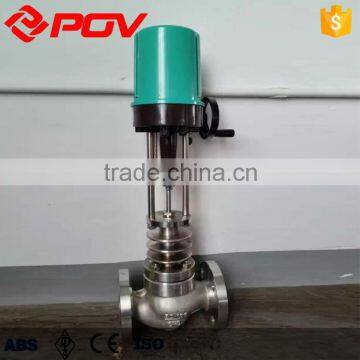

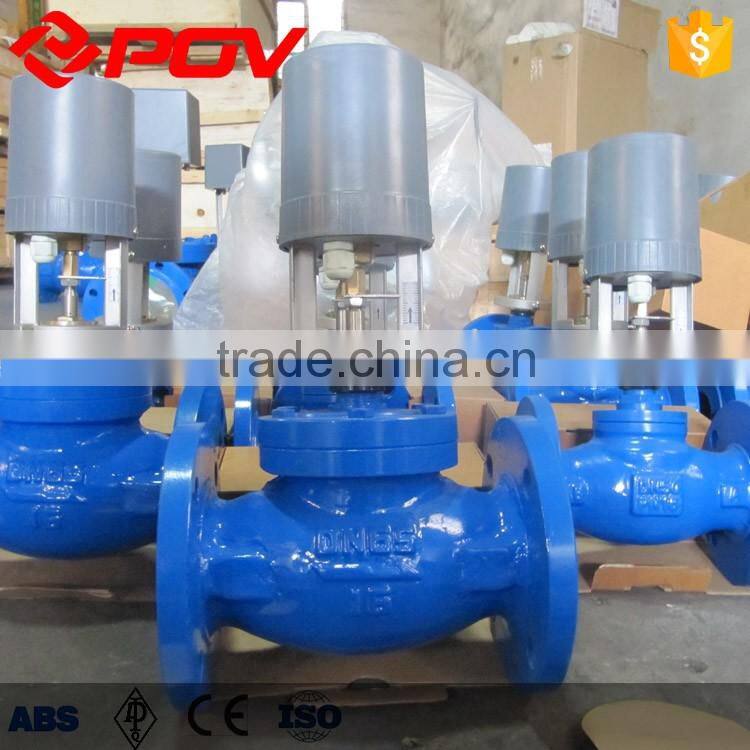

Product display
Company introduction
POV Valve （Shanghai）Co.,Ltd.
professional factory in SHANGHAI, China that manufacture the pneumatic/electrical valves. Main series of products as below:
1, pneumatic butterfly valve and pneumatic ball valve;
2, electric butterfly valve and electric ball valve;
1, pneumatic butterfly valve and pneumatic ball valve;
2, electric butterfly valve and electric ball valve;
3, manually butterfly valve and ball valve;
4, actuator: pneumatic actuator, electric actuator;
5, pneumatic diaphragm valve;
6, pneumatic angle seat valve;
7, solenoid valve;
4, actuator: pneumatic actuator, electric actuator;
5, pneumatic diaphragm valve;
6, pneumatic angle seat valve;
7, solenoid valve;
8, manual ball valve and manual butterfly valve.
No fact stands without pictures, see below:
field of application
Our packing
Specifications
Valve body
Type: Single seat, double seat, sleeve
Nominal diameter: DN20-DN200
Nominal pressure: ANSI150, 300, 600LB; JIS10, 16, 20, 30,
40K; PN1.6, 2.5, 4.0, 6.4MPa
Connection: Flange: FF, RF, RJ and LG, Flanged standard
ANSI B16.5, JIS B2201, JB/T79.1 PN1.6MPa, JB/T79.2
Thread: DIN, NPT, RC, BSP, G etc
Welding: GB12224-89
Sealing surface: PN16 convex surface, PN40, PN63, PN100
concave surface
Material: WCB, 304, 316, 316L
Bonnet: Standard type (-20℃ ~+200℃ )
Low temperature type (-60℃ ~-196℃ )
Cooling type (-40~450℃ )
Bellows seal type
Gland type: press plate
Packing: V type PTFE, fl exible graphite
Valve components
Core type: single seat plunger type, double seat, sleeve
Core seat: 304, 316, 316+ SLT
Flow characteristics: Equal percentage, linear, quick-opening
Actuator
Type: Electric actuator
Action type: Direct action, reserve action
Control type: Proportional or switch type
Input signal: 4-20mA, 0-10V, 1-5V, ON-OFF
Output signal:4-20mA or passive contact signal
Power: AC220V, AC380V, DC24V, etc
Explosion-proof class: ExdIIBT4, ExdIICT6 or others (Optional)
Manual device: with handle
Accessories (Configured according to requirements)
heater, overload protection
Performance
Rated KV value: Reference table
Flow characteristics: Linear, equal percentage, quick opening
Adjustable range: 50:1
Leakage class
Metal seal: Less than 0.01 (ANSI B16.104-1976IV)
Soft seal: Less than 0.00001%
Hysteresis: ≤ 1%
Dead zone: ≤ 1%
Basic error: ± 1%
Type: Single seat, double seat, sleeve
Nominal diameter: DN20-DN200
Nominal pressure: ANSI150, 300, 600LB; JIS10, 16, 20, 30,
40K; PN1.6, 2.5, 4.0, 6.4MPa
Connection: Flange: FF, RF, RJ and LG, Flanged standard
ANSI B16.5, JIS B2201, JB/T79.1 PN1.6MPa, JB/T79.2
Thread: DIN, NPT, RC, BSP, G etc
Welding: GB12224-89
Sealing surface: PN16 convex surface, PN40, PN63, PN100
concave surface
Material: WCB, 304, 316, 316L
Bonnet: Standard type (-20℃ ~+200℃ )
Low temperature type (-60℃ ~-196℃ )
Cooling type (-40~450℃ )
Bellows seal type
Gland type: press plate
Packing: V type PTFE, fl exible graphite
Valve components
Core type: single seat plunger type, double seat, sleeve
Core seat: 304, 316, 316+ SLT
Flow characteristics: Equal percentage, linear, quick-opening
Actuator
Type: Electric actuator
Action type: Direct action, reserve action
Control type: Proportional or switch type
Input signal: 4-20mA, 0-10V, 1-5V, ON-OFF
Output signal:4-20mA or passive contact signal
Power: AC220V, AC380V, DC24V, etc
Explosion-proof class: ExdIIBT4, ExdIICT6 or others (Optional)
Manual device: with handle
Accessories (Configured according to requirements)
heater, overload protection
Performance
Rated KV value: Reference table
Flow characteristics: Linear, equal percentage, quick opening
Adjustable range: 50:1
Leakage class
Metal seal: Less than 0.01 (ANSI B16.104-1976IV)
Soft seal: Less than 0.00001%
Hysteresis: ≤ 1%
Dead zone: ≤ 1%
Basic error: ± 1%
