Specifications
Pneumatic cylinder(1).Single and double acting
(2).Epoxy coated end caps
(3).Dual piston rack and pinion design
Pneumatic cylinder
Characteristics
*ADA type:Double acting
*ASR type:Single acting
*Protected against environmental corrosion
-Gear axis by chemical nickle plated
-Hard anodzed Aluminum body
-Stainless steel bolts and nuts
-Epoxy coated end caps
*Rack and pinion design
*Linear torque
*Antifriction sliding bearings
Pneumatic cylinder Pneumatic actuator technical parameters
Type |
POADA/ POASR(Double acting and Spring return) |
Model |
PO20/40/80/130/200/300/500/850/1200/1750/2500/4000 |
Weight |
1.4/1.51/2.1/3.28/4.8/5.6/6.7/7.3/8.5/9.92/16.9/22.2KG(etc) |
Rotation angle |
0°~ 90° |
Pressure range |
3~ 8 bar |
Output torque |
9.7~6421 Nm |
|
Operating temp. |
Standard prduct:-30 °C to 100 °C FKM O-rings :-15°C to 150°C Silicone O-rings: -40°C to 80°C |
Optional on request |
Epoxy coated body/ Nickel plated body and end caps High temperature construction/ Low temperature construction |

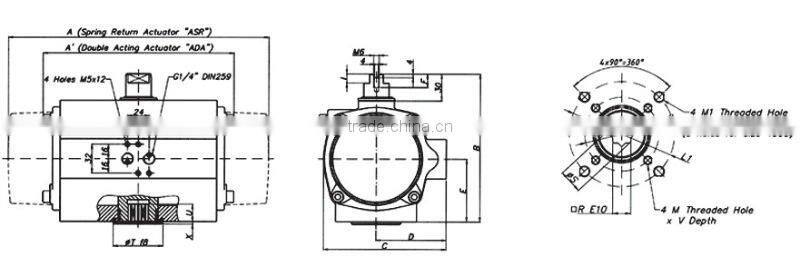

Outline diagram drawing of Pneumatic cylinder

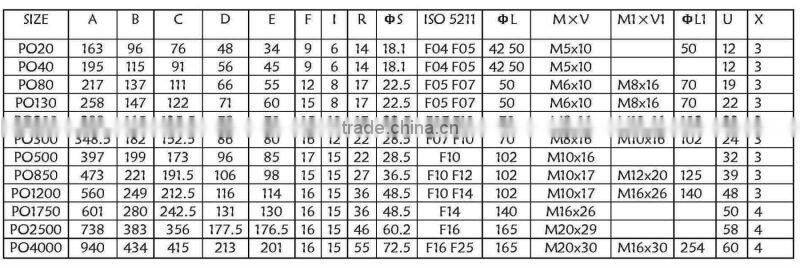

Size and Date of this series product:

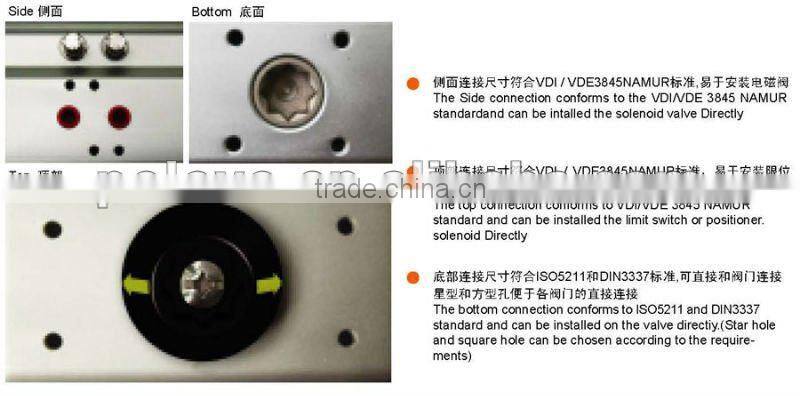

The side and bottom of thePneumatic cylinder acc.NAMUR standard
If you have any questions and interest in our products pls contact with me!
