Specifications
Manual operated pvc 3way 2'' pvc valves1) Pressure:1.0-1.6MPa
2) Seal:PTFE:-30~180C
3) Adapt to acid-base corrosive
Manual operated pvc 3way 2'' pvc valves
Product Parameters:
Nominal diameter |
DN15-50mm (1/2''~2'') |
Nominal pressure |
1.0-1.6MPa |
Applicable temperature |
PTFE:-30~180°C |
Connection |
Double union |
Body structure |
3 way T/L-type |
Body material |
Plastic UPVC |
Disc material |
Plastic UPVC |
Seat lining |
PTFE |
Applicable medium |
PVC compatible food industrial chemical solvents, water systems |

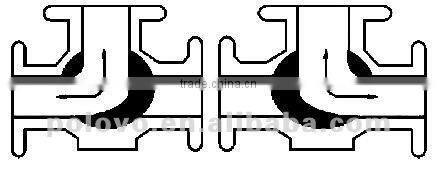

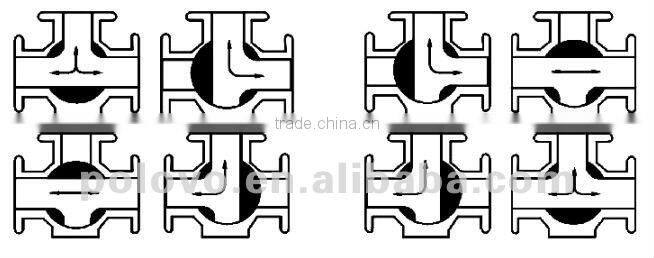

3way plastic valves flow diapgram:
3 way L- type
3 way T- type
3way plastic valves widely used in:
1) Drainage and sewage pipeline system,
2) Acid-base and chemical solution system,
3) Salt water and the sea water pipeline system,
4) General pure water and raw drinking water pipeline system.
Related 3way UPVC ball valve for your refernce:
Polovo valves (Shanghai) Co., Ltd
Thank you very much for your checking here and have any interesting please
don't hesitate to mail me and let me know; TEL: +86 021 68112100 FAX: +86 021 39652505
