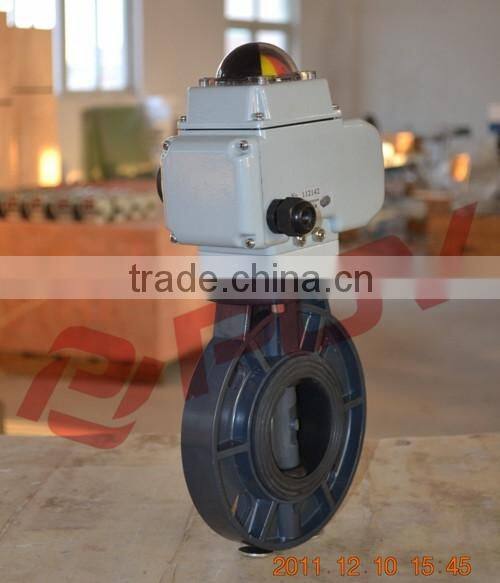

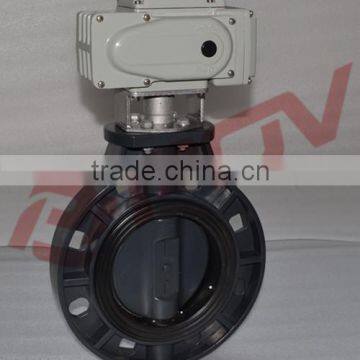

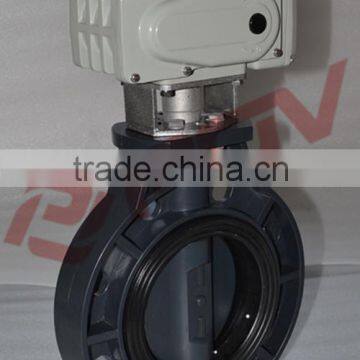

Wafer type plastic upvc 24v on off electric pipe butterfly valve
Product introduction
POV series pvc plastic pipe butterfly valve according to the different medium has a variety of optional material,
corrosive resistance is strong, small volume, light weight, health non-toxic material, easy maintenance and replacement.
Body
Nominal size: DN50-DN600
Body material: UPVC, CPVC, PPH, PP, PVDF
Connection type: Wafer
Pressure class: PN10, PN16KG
Structure type: The midline structure / A-type
Valve components
Seat material: EPDM:-30~80℃
Disc material: UPVC, CPVC, PPH, PVDF
Stem material: EPDM:-30~80℃
Applicable medium: Water, liquids, gas, oil, powder, steam, acid-base corrosive medium.
Design and manufacturing standards
Design and manufacture: GB/T12238
Connection standard: JB/T 79-94, GB9113.1-26
Structure length: GB/T12221
Pressure testing: GB/T13927

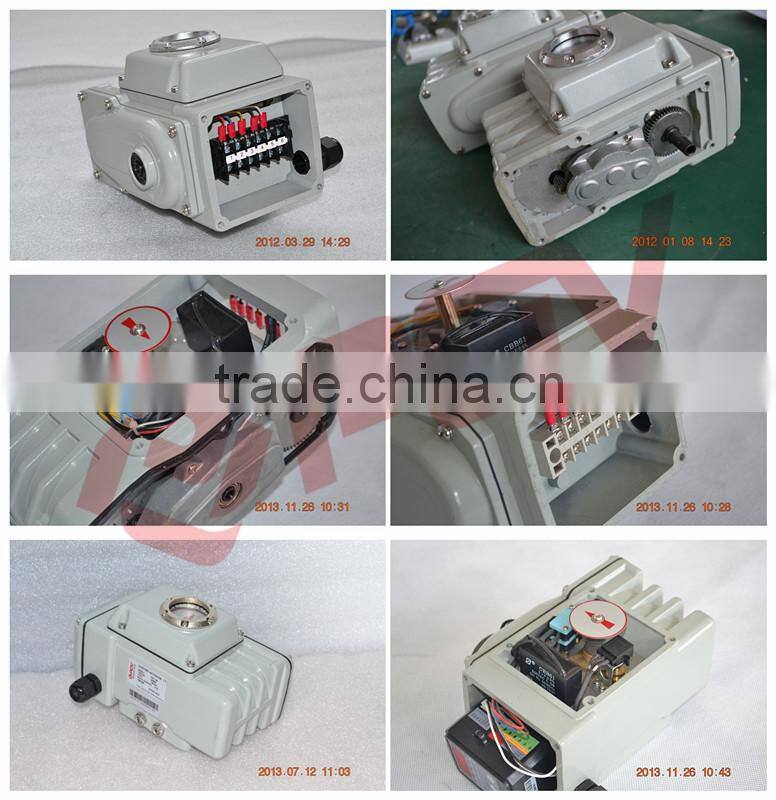

Electric actuator
On-off type: feedback signal: Passive contact signal/4-20mA/ resistance signals.
Regulation type: Input signal 4-20mA/0-10V/1-5V;
Feedback signal: 4-20mA/0-10V/1-5V
Voltage: AC220V380V110V24V,DC12V24V etc; Special voltage can be customized.
Explosion-proof class: Can be choose explosion-proof type EX d IIBT4
Type |
Control type |
Function |
Electric actuator |
ON-OFF type |
Feedback: the active signal, passive contact signal, resistance, 4-20mA |
Regulation type |
Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus |
|
Filed operation |
The field, remote control switch regulation and MODBUS, PROFIBUS field bus |

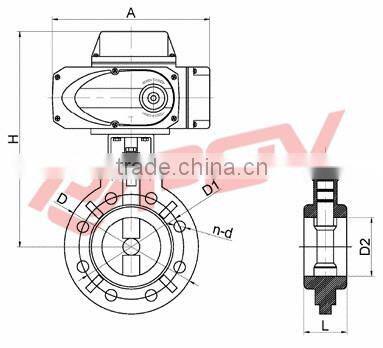

Outline size drawing:
DN |
A |
H |
D |
DIN |
JIS |
ANSI |
L |
D2 |
|||
D1 |
n-d |
D1 |
n-d |
D1 |
n-d |
||||||
50 |
157 |
199 |
165 |
125 |
4-16 |
120 |
4-19 |
121 |
4-19 |
42 |
56.5 |
65 |
157 |
209 |
185 |
145 |
4-16 |
140 |
4-19 |
140 |
4-19 |
45 |
69.5 |
80 |
157 |
230 |
200 |
160 |
8-16 |
150 |
8-19 |
152 |
4-19 |
45 |
79.5 |
100 |
208 |
272 |
229 |
180 |
8-16 |
175 |
8-19 |
191 |
8-19 |
52 |
102.5 |
125 |
208 |
311 |
257 |
210 |
8-16 |
210 |
8-23 |
216 |
8-22 |
55 |
130 |
150 |
208 |
334 |
285 |
240 |
8-20 |
240 |
8-23 |
241 |
8-22 |
55 |
152 |
200 |
256 |
383 |
343 |
295 |
8-20/12-20 |
290 |
12-23 |
298 |
12-22 |
60 |
203 |
250 |
256 |
441 |
411 |
350 |
12-20/12-24 |
355 |
12-25 |
362 |
12-25 |
66 |
255 |
300 |
256 |
523 |
490 |
400 |
12-20/12-24 |
400 |
16-25 |
432 |
12-25 |
76 |
309.5 |
1) Itself light weight
2) Material health and non-toxic
3) Strong corrosion resistance, adapt to large diameter
4) Maintenance , replacement and remove convenient
* POV is a famous control valve manufacturer, and also as one of the world
fluid process industry leaders.The products with unique design, excellent quality, exquisite
workmanship and nearly perfect operation reliability, for global users to provide the best quality service.
* POV Mainly with pneumatic valves, electric valves, check valves, Solenoid valves, the regulator,
controlvalves, etc control valve. In the research, development and production have rich experience and
unique design features. Products are widely applied to water treatment equipment, environmental engineering,power plant, steel industry, petroleum, chemical industry, textile printing and dyeing, coal mine, electronics,automobiles, heating refrigeration, pharmacy, municipal, shipbuilding, metallurgy, light industry, and other fields.

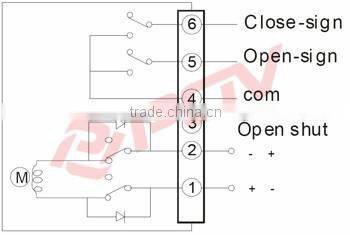

1. ON-OFF electric wire connection drawing:
24V DC
2. The electric operation time: can it realize 5seconds and best 2seconds?
Hello, for electric valve is belong to slow operation valve, and the fastest time can be come true with small torque
can be come true 8s. And it is hard to come true within 5s. if you need fast acting valve. pls kindly consideration of
pneuamtic valve with fast acting.
Welcome to here,
Pov valves (Shanghai) CO., Ltd.
Any questions and parameters need to confirm please don't hesitate
to mail me and let me know, thank you very much and have a nice day;
