32inch 2500 Nits LCD Panel for Commercial Application

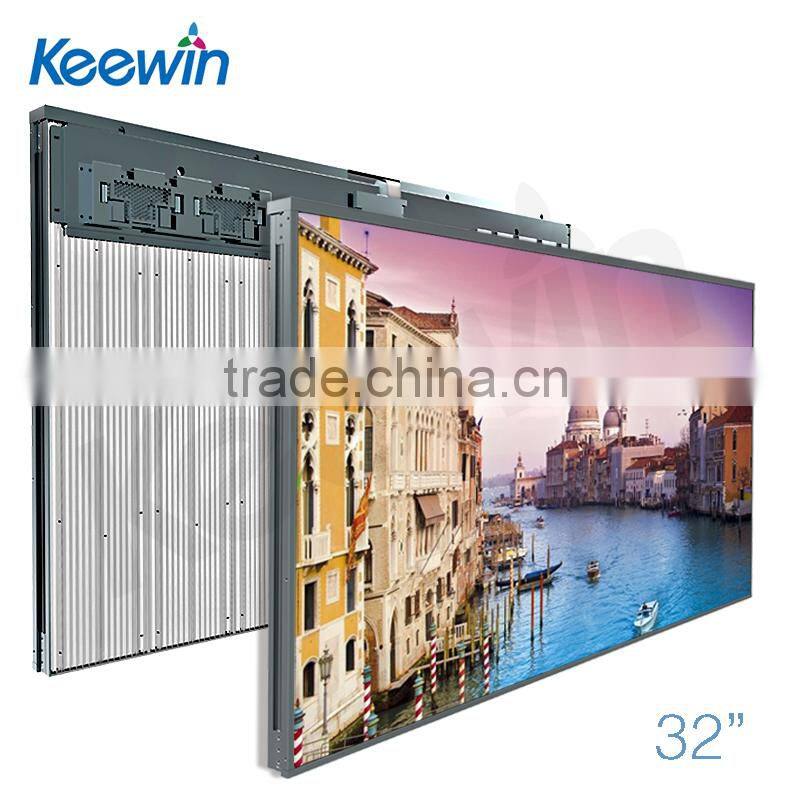

 32 inch - Keewin patent high brightness LCD panel

• Keewin Patented Design, high brightness module

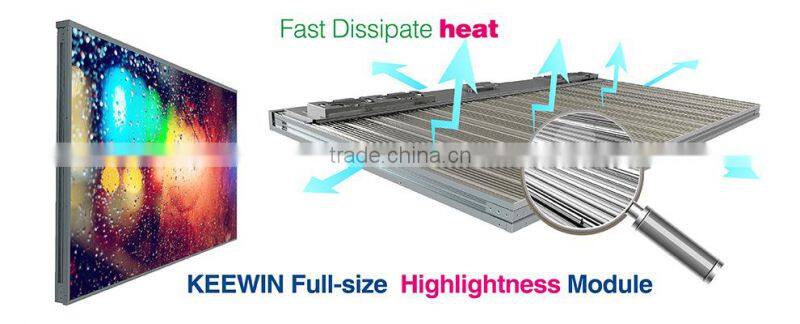

• The structure of the patent design; Excellent cooling performance; Efficient maintenance and upgrade
• Keewin high brightness module is independently developed by Keewin, owned China and international invention patent

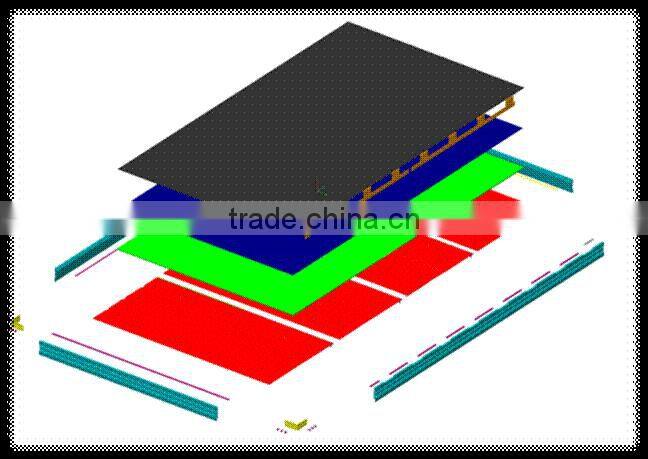

• New structure of module and installation method
• Direct-lit light, and liquid crystal glass captured from different brands, different size open cell
• Flexibility, Well cooling performance, and maintenance easily

Sepecification & Structure

KW32
Category		Specification
	Model No.	KW32
	Operation Tem.	0℃~50℃
	Storage Tem.	-20℃~60℃
Strucrue	Panel Size	32''
	Resolution	1920 (Horizontal)×1080(Vertical)
	Aspect radio	16:9(wide:height)
	Pixel Arrangement	RGB vertical strip
	Gap	0.12125×0.36375 mm
	Pixel	0.36375×0.36375 mm
	Module Quality	TBD
	Display Area	698.40×392.85 mm
	Dimention(wide×height×thick)	724.2 mm×422.6 mm×59.8 mm
Optical Property	Brightness	2500 cd/m2
	Contrast Ratio	1400 : 1
	Response Time	8 ms
	View angle	horizontal & vertical 178°
	Color	16.7M(8-bit)
	Transmissivity	5.75%
Signal Connection	Signal	LVDS
	Signal	LVDS(2 ch, 8-bit)
	Panel Voltrage	12.0 V
	Panel Current	500/650mA (Typ./Max.)
	Panel Power	6.0/8.26W (Typ./Max.)
	Connection	Terminal
	Connection Brand	JAE
	Connection Model	FI-RE51S-HF
	Connection Pitch	1.0 mm
	Connection Quantity	1 pcs
	Connection Pin	51 pins
Back-light System	Illuminant	WLED
	Illuminant lifetime	50000hours
	Connection	Terminal
	Connection Model	PHC-14AW 14PIN/2.0MM
	Connection Quantity	1 pcs
	Connection Pin	14 pins
	Back-light Circuit	LED driver
	Back-light Voltage	24±1.2V(Input Voltage)
	Back-light Power	120W

LED backlight and local dimming

• LED backlight save energy and provide high brightness image than traditional CCFL backlight. And monitor is thinner than before.
• Keewin applied patents for module structure and created high brightness LCD module. Keewin LCD module has well vision under strong light
• Self-dissipation
• Less energy consumption and environment protection
• All metal construction, well dimming

Color, temperature and quality

Ensuring the color and brightness of each screen in a tiled matrix matches can be time consuming and requires additional calibration hardware. Each screen is individually color calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, the color of all screens will be uniform.

 Applications

Q&A

l What is sunlight readable, daylight viewable?
A sunlight readable or daylight viewable monitor is also known as a high brightness

monitor. It is designed to operate in very bright environments, for example in broad

daylight. High brightness monitors are typically used commercially in kiosks and out-

of-home advertising.
Keewin recommends screens with a brigthness rating of at least 2,500 for applications

in high ambient light locations, and 5,000 nits for applications in direct sunlight.
Source: High brightness monitor. (2011, February 17). In Wikipedia, The Free Encyclopedia.

Retrieved May 8, 2013, from /w/index.phptitle=High_brightness_monitor&oldid=414450560

2 Can Keewin high brightness LCDs be used outdoors?
With daylight viewable capabilities, Keewin high brightness screens are great for

outdoor applications such as kiosks and building facades. For outdoor installations

a weatherproof enclosure is required. In many instances, this may include the use

of an air conditioning system.


3 What is the difference between a professional and commercial display?
Unlike consumer television sets, professional displays are designed to run 24

hours a day, 7 days a week with advanced heat management systems. Built with

security in mind, they offer rugged metal construction and the ability to lockout

remote control functions. While televisions are limited to being mounted in a

landscape orientation, professional displays may also be mounted in a vertical,

portrait orientation. Perhaps most importantly, consumer televisions are not

covered by warranty when used in a commercial environment.

Our Patents

Our Service

We would like to provide you with the following after-sale service based on the aim that "Service is only a starting point, satisfaction with no end"

• Installation, Testing and Training Services

  Our technical engineer will take charge of the installation and testing , train and guide the technicians of customers how to operate ,maintain the system equipment and other attentions on site or in the offered site , Implement the turnkey service to users.

• Lifelong Repair

  After the warranty period, our company offers life-long repair services, to provide total customer experience and various service scheme selection for industry customers . Only charged cost fees

• 7×24s hot-line service

  The company has a parts storehouse, technical service and repair center, 7 x 24 hours service hotline, on-site repairing and scene change service for 24 hours a day .

• Fast Response

  While the customer's system is abnormal , the company will help customers to solve problems immediately through internet or telephone, and put forward the repair plan within half an hour; If you need a on-site repairing, the engineer will arrive the site by the fastest transportation at the first time after receiving fault report .

• Client Review

  Establish a client review system, a special after-sale service engineer, monthly timing review to inquiry system usage by telephone.

• On-site Technical Support

  In order to guarantee the task smoothly, we can send an engineer to offer technical support on-site in the event of an important task.
