Home > Products > Water ring vacuum pump > single stage mini water ring vacuum pump DSHC2500
single stage mini water ring vacuum pump DSHC2500
USD $100 - $1,000
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T
You May Like
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Aitcool | Model Number: | DSHC2500 |
| Theory: | Vacuum Pump | Structure: | Multistage Pump | Usage: | Air Pump |
| Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other |
| Pressure: | Other | Application: | Other, air exhaust of refrigeration eqipment, vacuum packing, vacuum forming |
Product Description

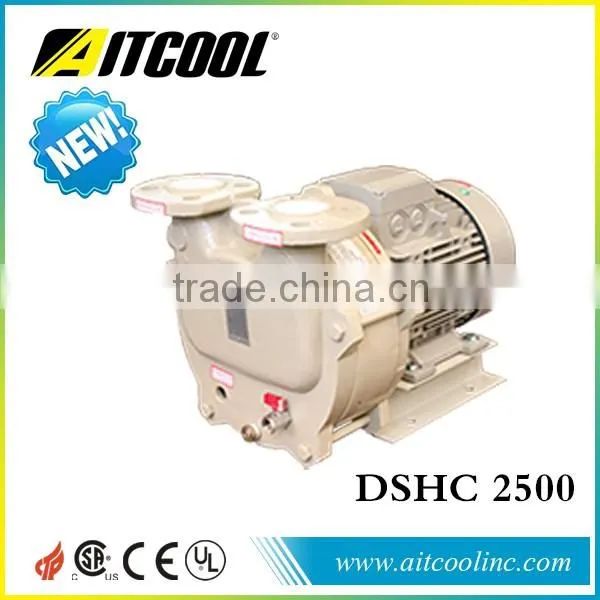

single stage mini water ring vacuum pump DSHC2500
| Models | DSHC 2500 | ||
| Motor | 50HZ | 5.5HP | 1440 R.P.M |
| 60HZ | 7.5HP | 1740 R.P.M | |
| Displacement | 50HZ | 2500 l/min | 150 m3/h |
| 60HZ | 3000 l/min | 180 m3/h | |
| Max Vacuum | 30Torr* | ||
| Water Flow (aprox) | 50HZ | 12 l/min | |
| 60HZ | 14 l/min | ||
| Weight | 95kg | ||
1.Pump directly connected coaxial design, space-saving, easy to install.
2.Mechanical seal as standard, eliminating leakage, easy to maintain.
3.Running smoothly, the noise can be as low as 26 db.
4.Uniform corrosion resistance design, bronze impelle pump to improve the corrision resistance of stainless steel is more suitable for more demanding work enviorment.
5.Unique flexible exhaust port design, not produced compression to ensure DSHC efficiency within its optimum performance.
