Specifications
Alarm Controller for tablet display1.Support 4 port
2.support charging and alarm function
3.simple design
4.OEM/ODM
Most Popular 4-Port Security Alarm Controller for tablet display
1.Specification
| Model | M404 | M604 | M804 |
| Multi-port | 4USB | 6USB | 8USB |
| The quantity decoder can match | 3 | 3 | 3 |
| Power for phone charging | 5V 2A | 5V 2A | 5V 2A |
| Buzzer | Extra Buzzer Accepted | Extra Buzzer Accepted | Extra Buzzer Accepted |
| Alarm Once low voltage | 3.5v | 3.5v | 3.5v |
| DB | Alarm sound can greater than or equal 90 DB(15CM) | Alarm sound can greater than or equal 90 DB(15CM) | Alarm sound can greater than or equal 90 DB(15CM) |
| RH(Ralative Humidity) | less or equal 95% | less or equal 95% | less or equal 95% |
| Immunity of Esd | Class 4 | Class 4 | Class 4 |
| Power | less or equal 1.5w | less or equal 1.5w | less or equal 1.5w |
| Alarm current consumption | less or equal 200mA | less or equal 200mA | less or equal 200mA |
| Dimension(H*W*D) | (160*100*30)mm | (160*100*30)mm | (180.5*117*31.8)mm |
| Weight | 197g | 202g | 207g |
| Color | white | White | white |
2.Multi Alarm Security System!

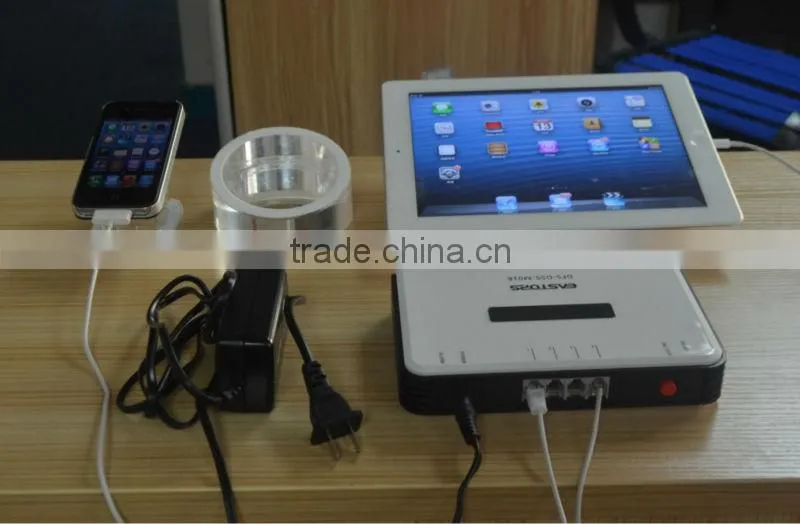

Display Charging apply to:Mobile Phone, Tablet and Laptop.
8 ports display alarm holder that's good to protect the mobile phone,tablet pc and iPad for security experience displays for clients.
3.Features:
1.Quick Reaction speed, pull or cut the USB cable, the Alarm warning.
2.With self-test function design, the factory settings to default the port is turned off, the alarm power USB port to connect the device host to detect the port, and take the initiative to close the idle port (idle port will automatically turn off, not man-made blockage), access device port detected automatically in the security state
3.the alarm has been triggered, restitution ca not disarm, the alarm must be reset by host key to disarm the alarm (press remote control red key 2 seconds to relief). With very higher safety factor, it can protect customer’s property.
4.Built-in alarm horn, high-volume alarm speaker is hidden inside the chassis of the host, so you can avoid destruction of the thief, such as the possibility of failure to cut the external alarm horn line, greatly improving security. (If necessary, user can add an external speaker on the wall or easy to hear the alarm sound, the exter USB interface, Ring Type, Mini End selectable, thenal speaker jack plug into the rear side host).
5.With Remote function, easy to use (can order extra remote controller, if necessary).
6.LED light display each port current status. cable length can be requested.

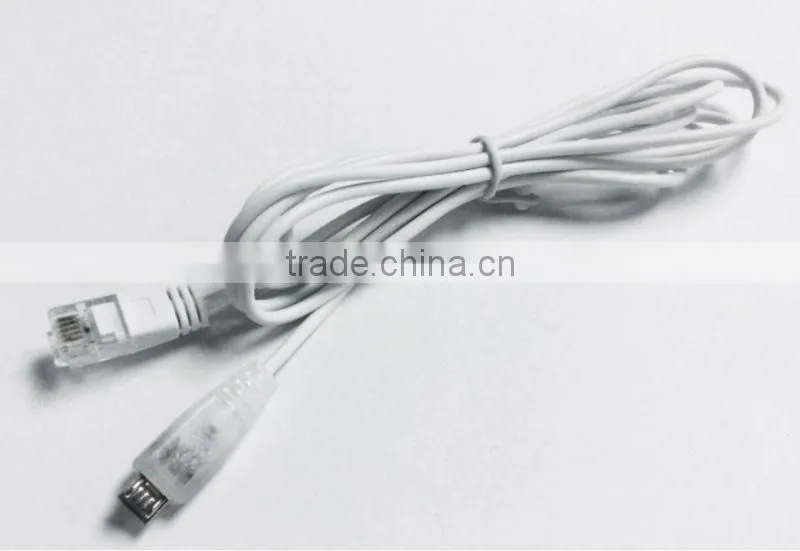

7.USB interface, Ring Type, Mini End selectable, the cable length can be requested.
8.Wide range Application: Digital store, Electronics stores or exhibition in notebook, Tablet PC, Cameras,
Smart phone, MP3, MP4 and the GPS and other exhibits anti-theft and reusable
4.Operating Step:
1.Connect one end of the cable to the alarm (USB port), the other end connected to the object.
2.The Adaptor jack plug into the alarm (on rear side).
3.The power supply plug into AC outlet, the alarm horn chirping sound, the power is ON, the alarm panel turn ON indicator LED corresponding port, the host is already in the security state (in active position).
4.Press red key on remote control to relief alarm, the alarm panel LED turns OFF.
5.If the installation of equipment to port which way the light does not illuminate, indicating which way is not connected, reconnect until the LED lights ON.
6.When the anti-theft device was break, or off line, the host immediately chirping alarm, while the corresponding port indicator light flashes, the staff on duty should be checked in the equipment of the ports and pay attention to whether there is "theft" by. Need to disarm the alarm status; you can press the Reset button (or remote button) to lift alarm.
