Concentric Overburden System With Blocks

FOB Price

US$ 500 - 10,000 / Piece

1 Piece(Min. Order)

Port Shanghai Shenzhen any ports
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	SOLLROC
Model Number	168mm-406mm	Type	Drill Bit
Machine Type	Drilling Tool	Certification	Other, ISO9001
Material	Other, carbide + special steel	Processing Type	Other, heat-treatment + machining process
Use	Well Drilling

Product Description

Appication

It is suitable for drilling water wells , geothermal wells , short mircopiles ,medium mini-type grouting hole of building , dam and harbour project .

Future

1.Harden treatment of the part's surface

2.simple structure

3.Superior performance

Product Description

Specifications:

Casing tube OD(mm)	Casing tube ID(mm)	Max Reamed Dia (mm)	Casing Shoe ID(mm)	Hammer shank
168	148	185	138	DHD350/QL50
178	158	195	148	DHD350/QL50
194	174	206	163	DHD360/QL60
219	199	234	187	DHD360/QL60
245	225	264	212	DHD380/QL80
273	253	308	237	DHD380/QL80
325	305	350	283	NUMA100/SD10
406	382	425	360	NUMA125/SD12

Detailed Images

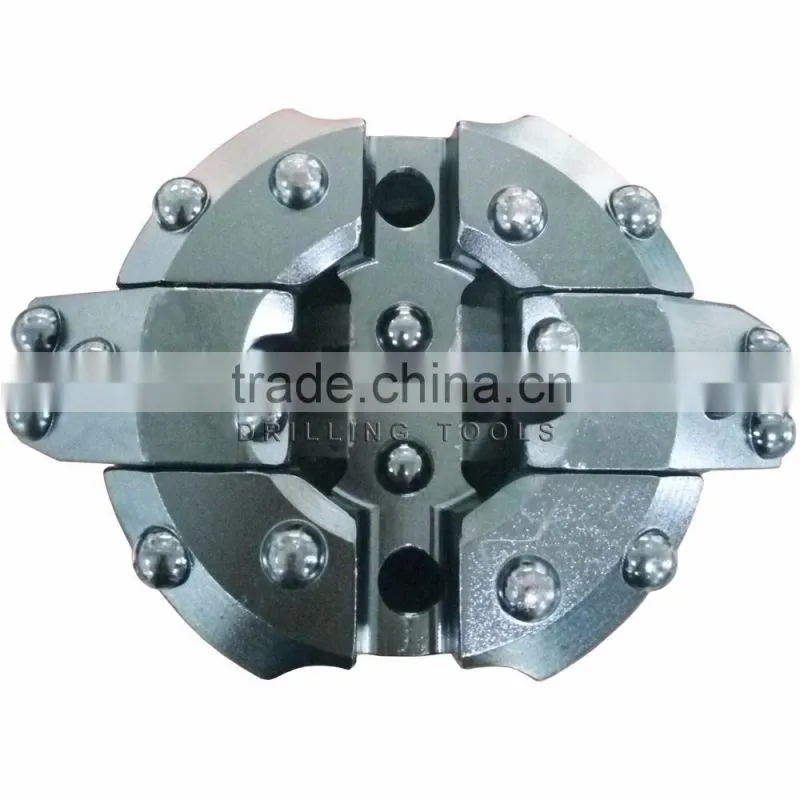

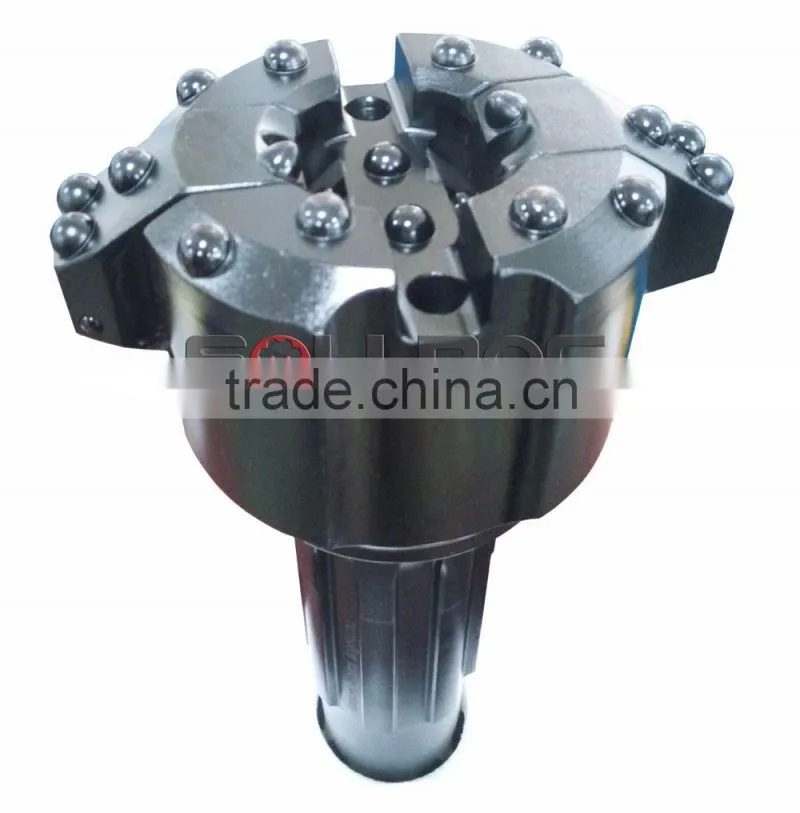

Symmetrix overburden drilling system:

Three blocks concentrix system is available.

Packing & Delivery

Ply-wooden cases

Ply-wooden cases + pallet

Delivery: By sea, By air or by Express
