(Reverse Circulation) RC Hammers

FOB Price

US$ 1,000 - 3,000 / Piece

1 Piece(Min. Order)

Port Shanghai Shenzhen any ports
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	SOLLROC
Model Number	PR52, PR54, RE545, RE054, MX5456	Type	Other, RC hammers
Machine Type	Drilling Tool	Certification	API
Material	Other, carburized steel	Processing Type	Other, Heat treatment + Machining Process
Use	Well Drilling

Product Description

Application

RC hammers and bits are used in hole drilling in mines, hydrology and water well, geothermal well, geothermal air conditioning well, geologic exploration, gravel stratum, etc

Especial suitable for complicated formation (Formation loose, difficult to drilling and unstable of hole wall), exhausting for deep hole, environment protection.

Futures

- Manufactured using premium hardened metals for long life;
- Maximum material recovery, up to 98%;
- No cross contamination of samples;
- Handles injection of water, foam, oil, and polymers without performance loss;
- Delivers maximum drilling under water.

Product Description

RC hammer specifications:

Hammer Model	Hole Range (mm)	External Diameter (mm)	Length (without bit) mm	Connection Thread	Working Pressure
RE531	84-100	81	1069	3" Remet	1.0-3.0Mpa
RE004	111-127	107	1252	3.5-4" Remet 4" Metzke	1.0-3.0Mpa
RE542	113-130	109.5	1191	3.5-4" Remet 4" Metzke	1.0-3.0Mpa
RE543	120-135	116	1191	3.5-4 Remet 4" Metzke	1.0-3.0Mpa
RE545	122-135	117.5	1261	4-4.5" Remet 4-4.5" Metzke	1.5-3.5Mpa
RE547	130-146	124.5	1270	4.5" Remet 4.5" Metzke	1.5-3.5Mpa
PR40	124-142	120.5	1362	3.5-4.5" Remet 3.5-4.5" Metzke	1.5-3.5Mpa
PR52	126-142	121	1227	4-4.5" Remet 4-4.5" Metzke	1.5-3.5Mpa
PR52R	130-146	124	1225	4-4.5" Remet 4-4.5" Metzke	1.5-3.5Mpa
PR54	135-150	130	1294	4.5" Remet 4.5" Metzke	1.5-3.5Mpa
MX5456	136-150	132	1362	4.5" Remet 4.5" Metzke	1.5-3.5Mpa
RC62/RC62R	152-190	146	1320	As Request	1.5-3.5Mpa
RC82/RC82R	190-250	180	1395	As Request	1.5-3.5Mpa
RC100/RC100R	250-370	240	1528	As Request	1.5-3.5Mpa

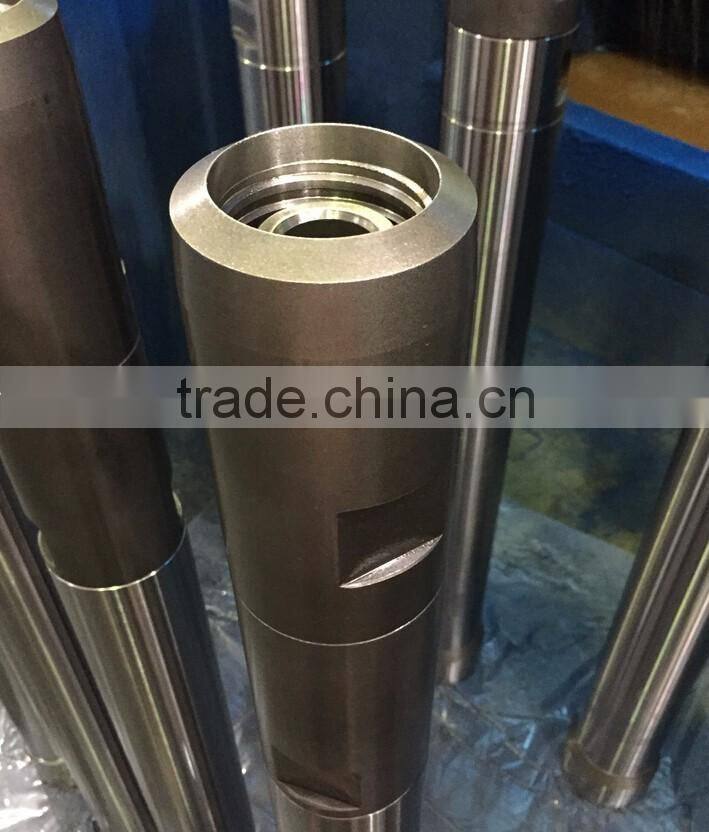

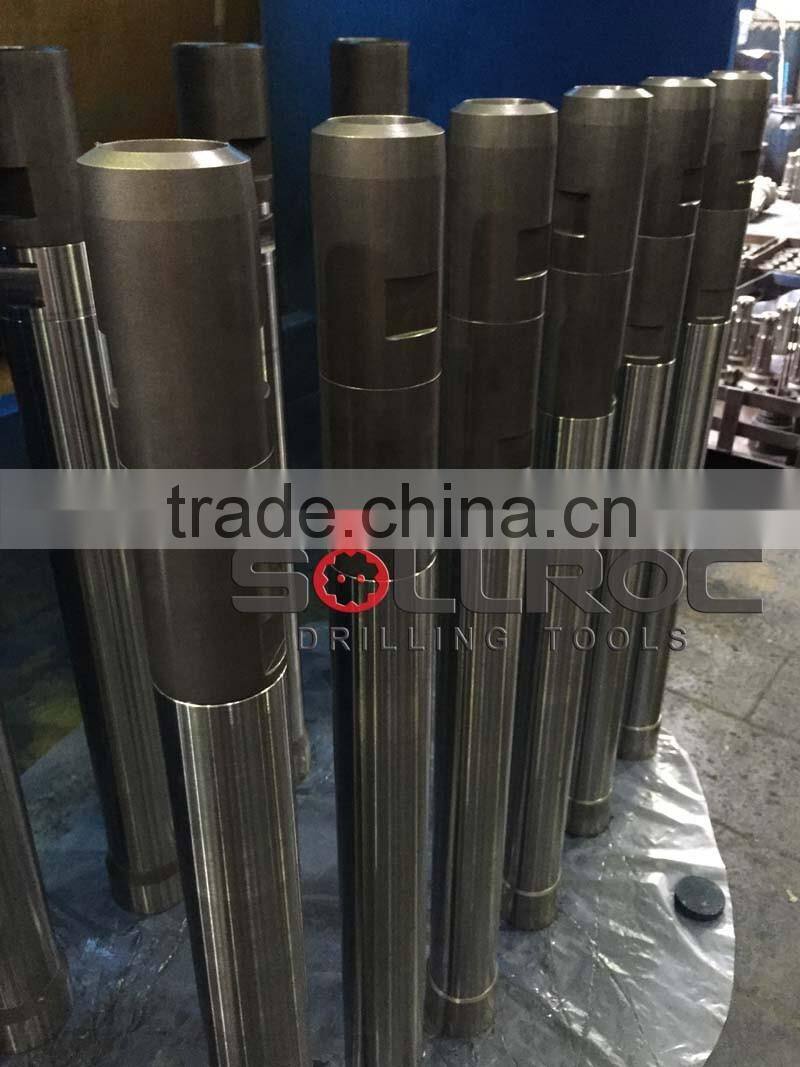

Detailed Images

Packing & Delivery

Packing

Ply-wooden cases + pallet.

Delivery time:

2-3 weeks to departure port.

Related RC hammers

- 3" RC hammers model RE531

- 4" RC hammers model RE004

- 4.5" RC hammers model RE542

- 4.5" RC hammers model RE543

- 5" RC hammers model PR40

- 5" RC hammers model RE545

- 5.5" RC hammers model PR52

- 5.5" RC hammers model PR54

- 5.5" RC hammers model RE547

- 6" RC hammers model RC6A
