Altas Copco Coprod 115mm Down The Hole DTH Drill Bits

Altas Copco Coprod 115mm Down The Hole DTH Drill Bits photo-1
Altas Copco Coprod 115mm Down The Hole DTH Drill Bits photo-2
Altas Copco Coprod 115mm Down The Hole DTH Drill Bits photo-3
US$ 200 - 800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
SOLLROC
Model Number:
ROD89-115mm, ROD102-115mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen any ports in China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hunan, China
Brand Name SOLLROC
Model Number ROD89-115mm, ROD102-115mm
Type Drill Bit
Machine Type Drilling Tool
Certification Other, ISO:9001
Material Carbon Steel
Processing Type Forging
Use Well Drilling
Product Application

DTH hammers and bits are widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering. it has the advantage of high flatness, smooth hole wall, high rigid of drill rod and hammer, independent of high axial thrust, no limit of drilling depth, low cost of devices and easiness to maintain.

Future

1.Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength).Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.

2.Recommended for eliminating hole deviation

3.Widely used drifting and tunneling

4.Bit face design is ideal for medium-hard to hard abrasive rock

Product Description

Altas Copco Coprod DTH bit

Bit Dia(Inch)
Bit Dia(mm)
Guage buttons
Front buttons
Flushing holes
Weight(kgs)
3 1/2
ROD76-90mm
11mmx9
11mmx7
8mmx3
5.8

3 3/4"
ROD76-95mm
12mmx9
11mmx7
8mmx3
6
4 1/8"
ROD76-105mm
12mmx9
12mmx7
10mmx3
6.4
4 1/8"
ROD89-105mm
13mmx9
12mmx7
13mmx3
9.1
4 1/2"
ROD89-115mm
14mmx9
14mmx6
13mmx3
9.7
5"
ROD89-127mm
14mmx9
14mmx7
13mmx3
10.6
4 1/2"
ROD102-115mm
14mmx9
14mmx6
13mmx3
12.6
5"
ROD102-127mm
14mmx9
14mmx7
13mmx3
13.2
5 1/2"
ROD102-140mm
16mmx9
16mmx9
13mmx3
14.5
5 1/2"
ROD127-140mm
16mmx9
16mmx9
15mmx3
21.3
6"
ROD127-152mm
16mmx9
16mmx9
15mmx3
23.1
6 1/2"
ROD127-165mm
16mmx10
16mmx10
15mmx3
23.9

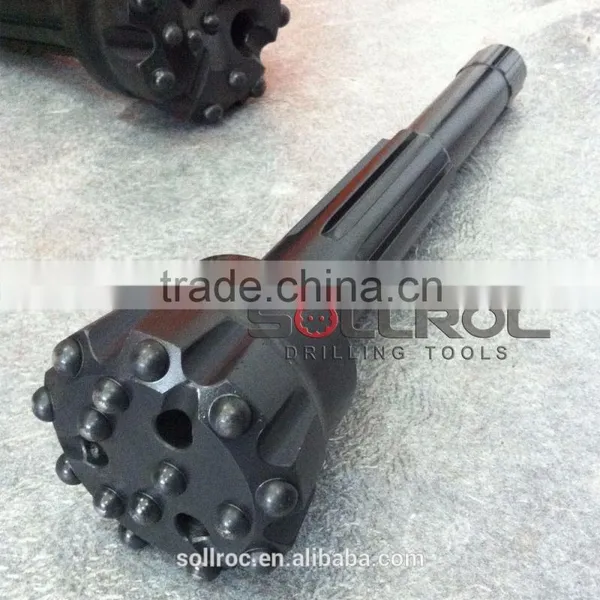

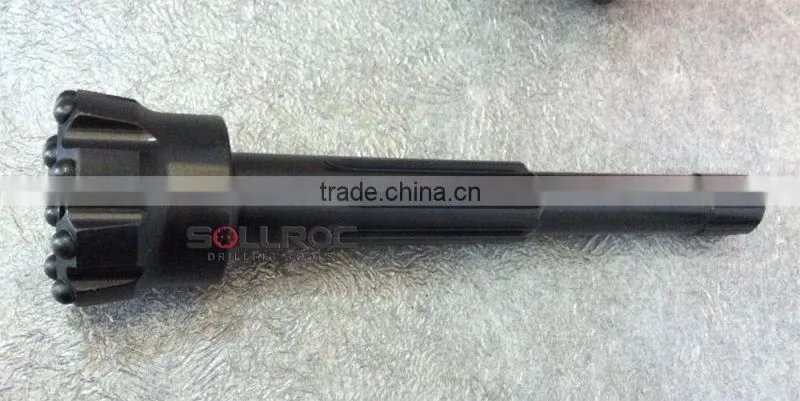

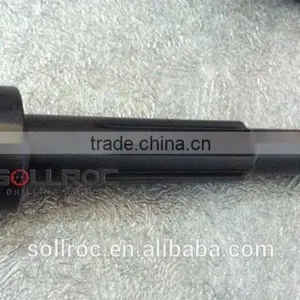

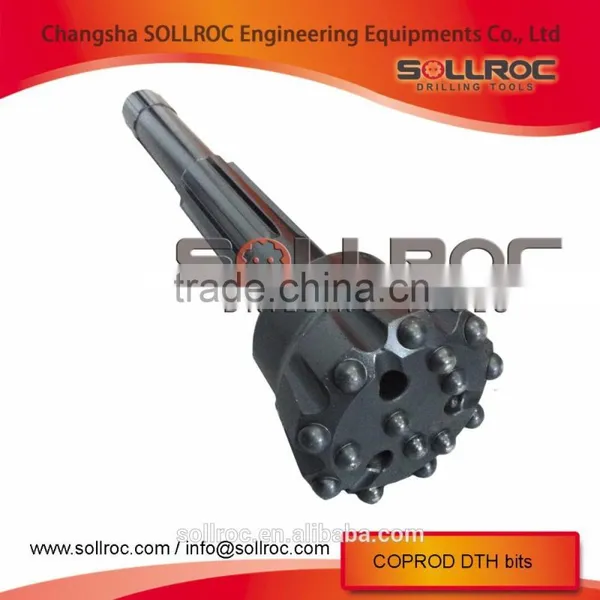

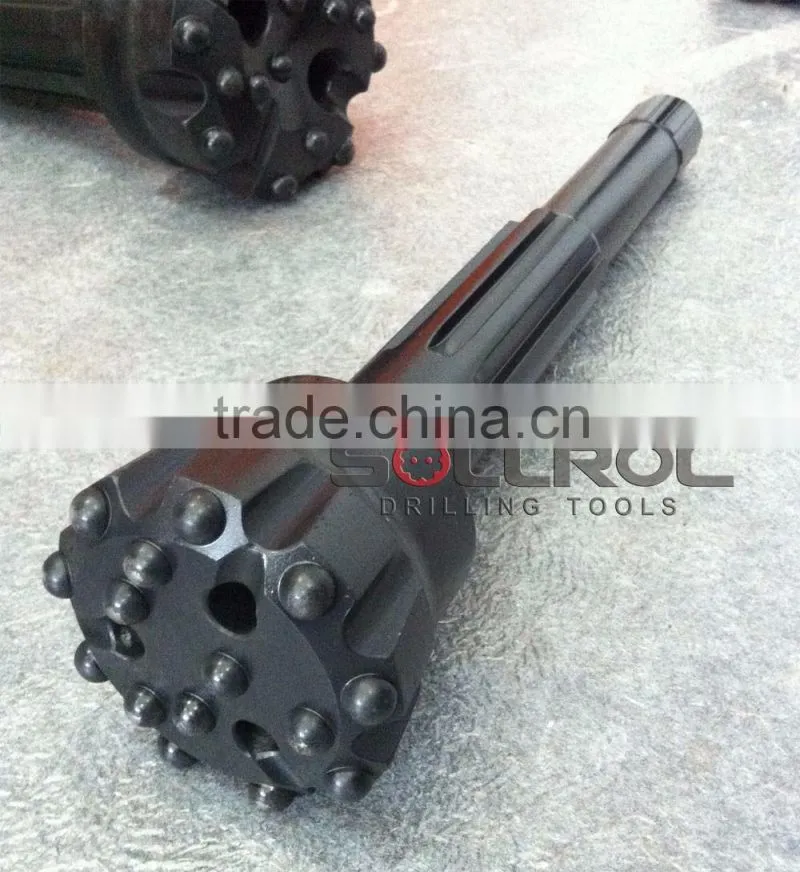

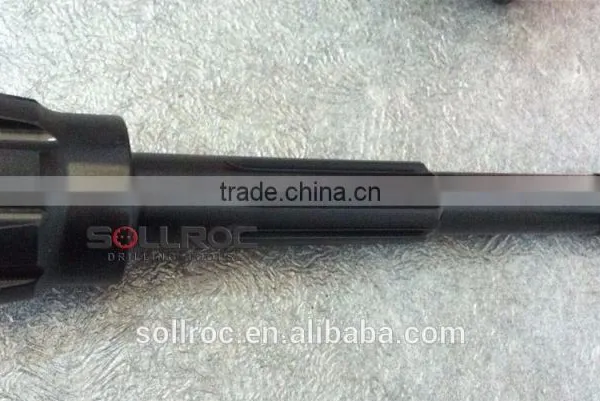

Detailed Photo
Packing & Delivery

Ply-wooden cases


Ply-wooden cases + pallet


 Delivery: By sea, By air or by Express
