QL Series Down The Hole DTH Drilling Bits

QL Series Down The Hole DTH Drilling Bits thumbnail-1
QL Series Down The Hole DTH Drilling Bits thumbnail-2
QL Series Down The Hole DTH Drilling Bits thumbnail-3
QL Series Down The Hole DTH Drilling Bits thumbnail-4

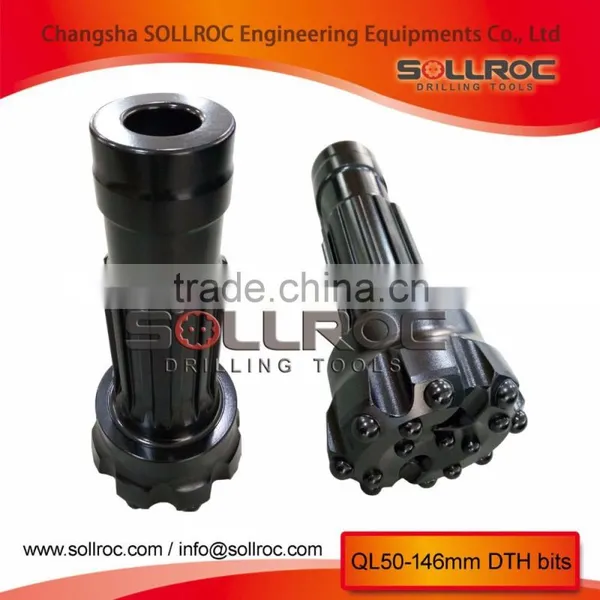

QL Series Down The Hole DTH Drilling Bits photo-1

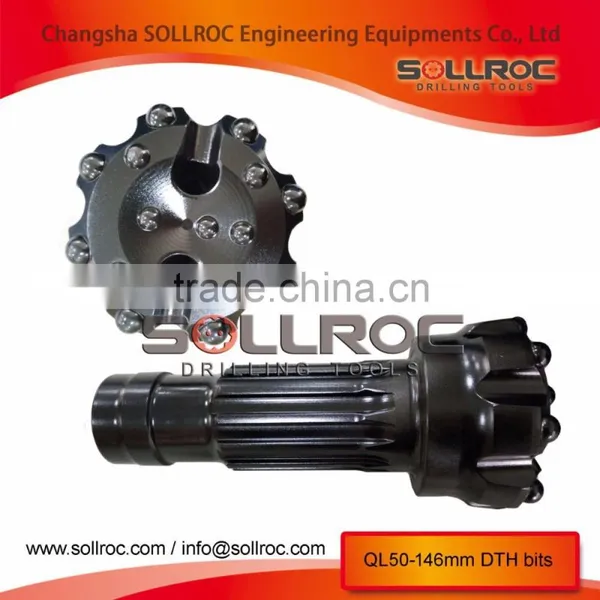

QL Series Down The Hole DTH Drilling Bits photo-2
QL Series Down The Hole DTH Drilling Bits photo-3
QL Series Down The Hole DTH Drilling Bits photo-4
US$ 100 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
SOLLROC
Model Number:
Cop, QL, SD, DHD, NUMA, Mission
Contact Supplier Request Quote Chat Now
Changsha Sollroc Engineering Equipments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen any ports in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name SOLLROC
Model Number Cop, QL, SD, DHD, NUMA, Mission
Type Drill Bit
Machine Type Drilling Tool
Certification Other, ISO:9001
Material Carbon Steel
Processing Type Forging
Use Well Drilling
Product Application

DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering. it has the advantage of high flatness, smooth hole wall, high rigid of drill rod and hammer, independent of high axial thrust, no limit of drilling depth, low cost of devices and easiness to maintain. At the drilling hole of dia.105mm-dia.500mm, a plenty of the DTH drilling tools are used.

Future

1.Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength).Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.

2.Recommended for eliminating hole deviation

3.Widely used drifting and tunneling

4.Bit face design is ideal for medium-hard to hard abrasive rock

Product Description

QL30,QL40,QL50,QL60,QL80 DTH bit

QL shank Bits
Bit Dia(mm)
Bit Dia(inch)
Air Hose
Guage buttons
Front buttons
Part No





QL30
85
3 11/32"
2
6×φ13
4×φ12
QL30-85
90
3 1/2"
2
6×φ14
4×φ12
QL30-90
95
3 3/4"
2
6×φ14
4×φ13
QL30-95
100
3 7/8"
2
8×φ12
6×φ12
QL30-100
105
4 1/8"
2
8×φ13
6×φ12
QL30-105





QL40
105
4 1/8"
2
6×φ14
5×φ13
QL40-105
110
4 1/4"
2
7×φ13
6×φ13
QL40-110
115
4 1/2"
2
7×φ14
6×φ13
QL40-115
120
4 3/4"
2
8×φ14
6×φ14
QL40-120
127
5
2
8×φ14
7×φ14
QL40-127







QL50
133
5 1/4"
2
7×φ16
6×φ14
QL50-130
140
5 1/2"
2
7×φ18
7×φ14
QL50-140
146
5 3/4"
2
8×φ18
7×φ14
QL50-146
152
6"
2
8×φ18
8×φ14
QL50-152
165
6 1/2"
2
8×φ18
8×φ16
QL50-165







QL60
152
6"
2
8×φ16
8×φ16
QL60-152
165
6 1/2"
2
8×φ18
8×φ16
QL60-165
178
7"
2
8×φ18
8×φ18
QL60-178
190
7 1/2"
3
9×φ18
9×φ16
QL60-190
203
8"
3
9×φ18
9×φ18
QL60-203





QL80
195
7 11/16
3
9×φ18
9×φ16
QL80-195
203
8"
3
9×φ18
9×φ18
QL80-203
216
8 1/2"
2
10×φ18
12×φ16
QL80-216
254
10"
3
11×φ18
17×φ16
QL80-254
305
12"
4
12×φ18
29×φ16
QL80-305

We can also supply:

DTH hammers


RC hammers


RC bits


ODEX system

Detailed Images



Packing & Delivery

Ply-wooden cases


Ply-wooden cases + pallet




Delivery: By sea, By air or by Express
